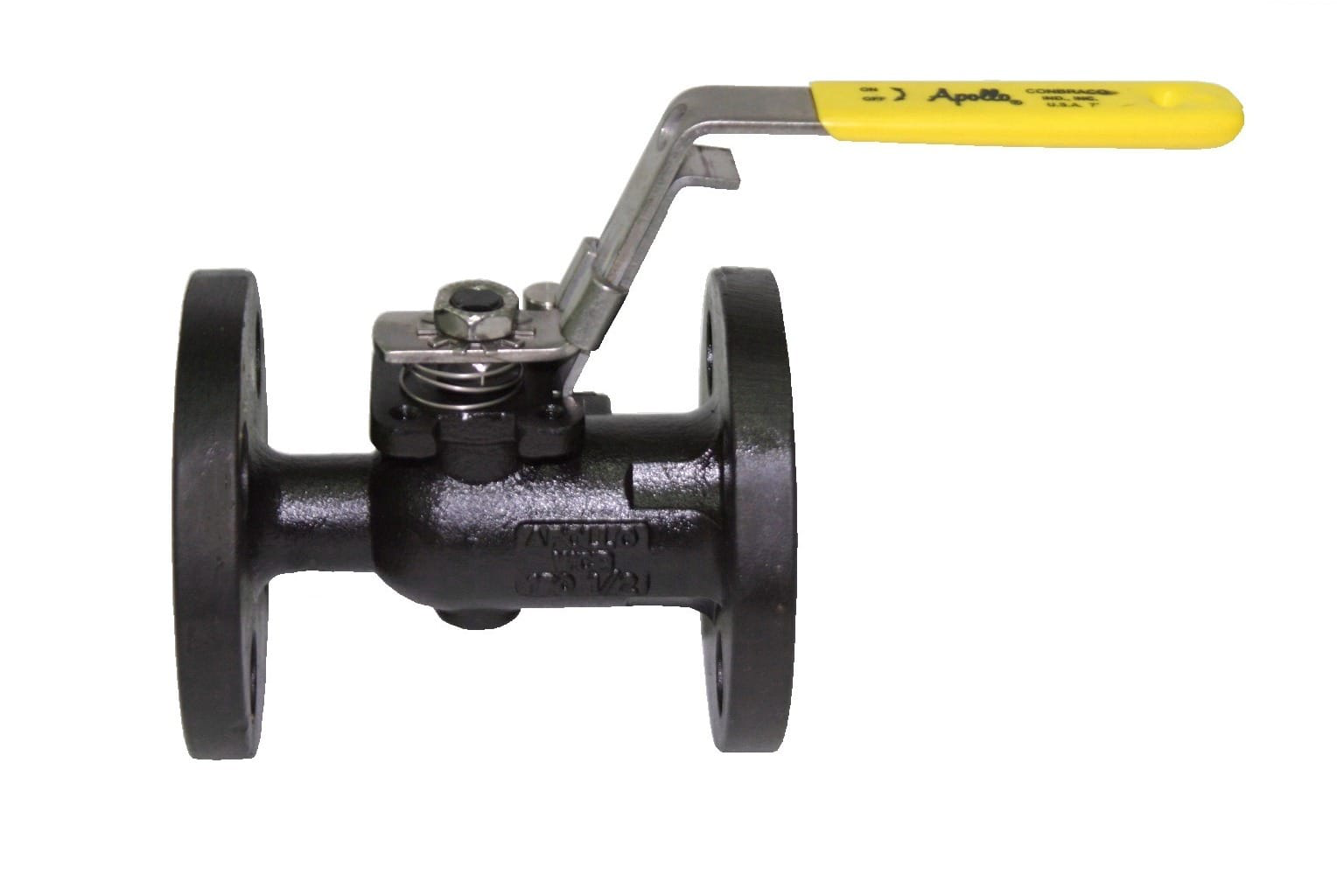

Apollo Valves 88A24304 Carbon Steel Ball Valve 1/2 Inch

Product Description

The APOLLO VALVES 88A24304 is a full port carbon steel ball valve designed for inline flow control in commercial and industrial piping systems. Built with a 1/2 inch 150 RF (raised face) end connection and graphite seating, this valve delivers a straight-through, unobstructed flow path that minimizes pressure drop across the valve body. The full port design makes it well suited for applications where maintaining maximum flow capacity is a priority. Licensed plumbers and pipefitters are the primary installers for this class of valve.

This valve is appropriate for a wide range of commercial and industrial piping installations where a 1/2 inch 150-class raised face flanged connection is required. Common applications include process piping, mechanical rooms, and utility systems that demand reliable shutoff performance. The carbon steel body makes it a practical choice for general-purpose fluid handling in non-corrosive service environments.

Key Features

• Full port design provides unobstructed flow path and low pressure drop
• 1/2 inch 150 RF flanged end connections for standard ASME-class piping
• Carbon steel body construction for durability in industrial service
• Graphite seat and sealing material for reliable shutoff performance

Compatibility

Designed as an OEM-style replacement or direct-install option for 1/2 inch 150-class raised face flanged ball valve applications in commercial and industrial piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes, including ASME B31.1 or B31.3 as required by the system. Isolate and depressurize the line and confirm the system fluid is fully drained before removing or installing the valve. Flange fasteners should be tightened in a cross-pattern sequence to ensure even gasket compression. Verify flow direction and valve orientation prior to final torque and system recommission.

Technical Specifications

• Connection Size: 1/2 inch
• End Connection Type: 150 RF (Raised Face Flanged)
• Port Type: Full Port
• Body Material: Carbon Steel
• Seat Material: Graphite
• UPC: 670750156199

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 88A24304
