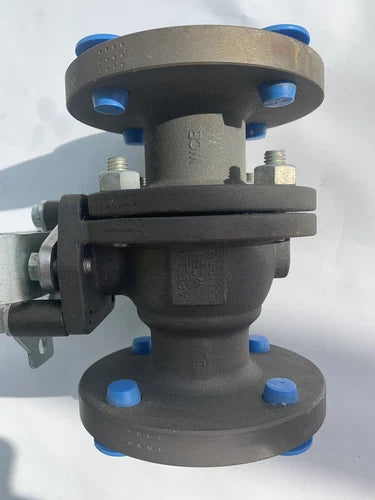

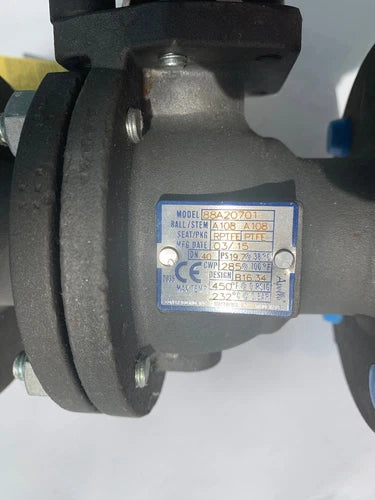

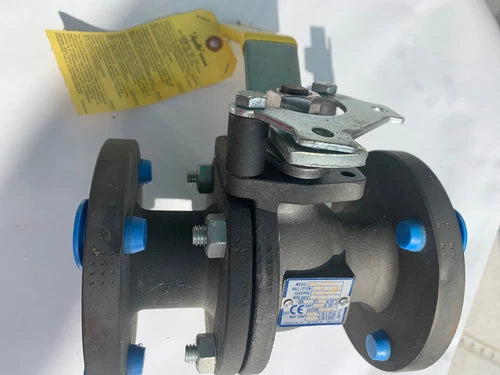

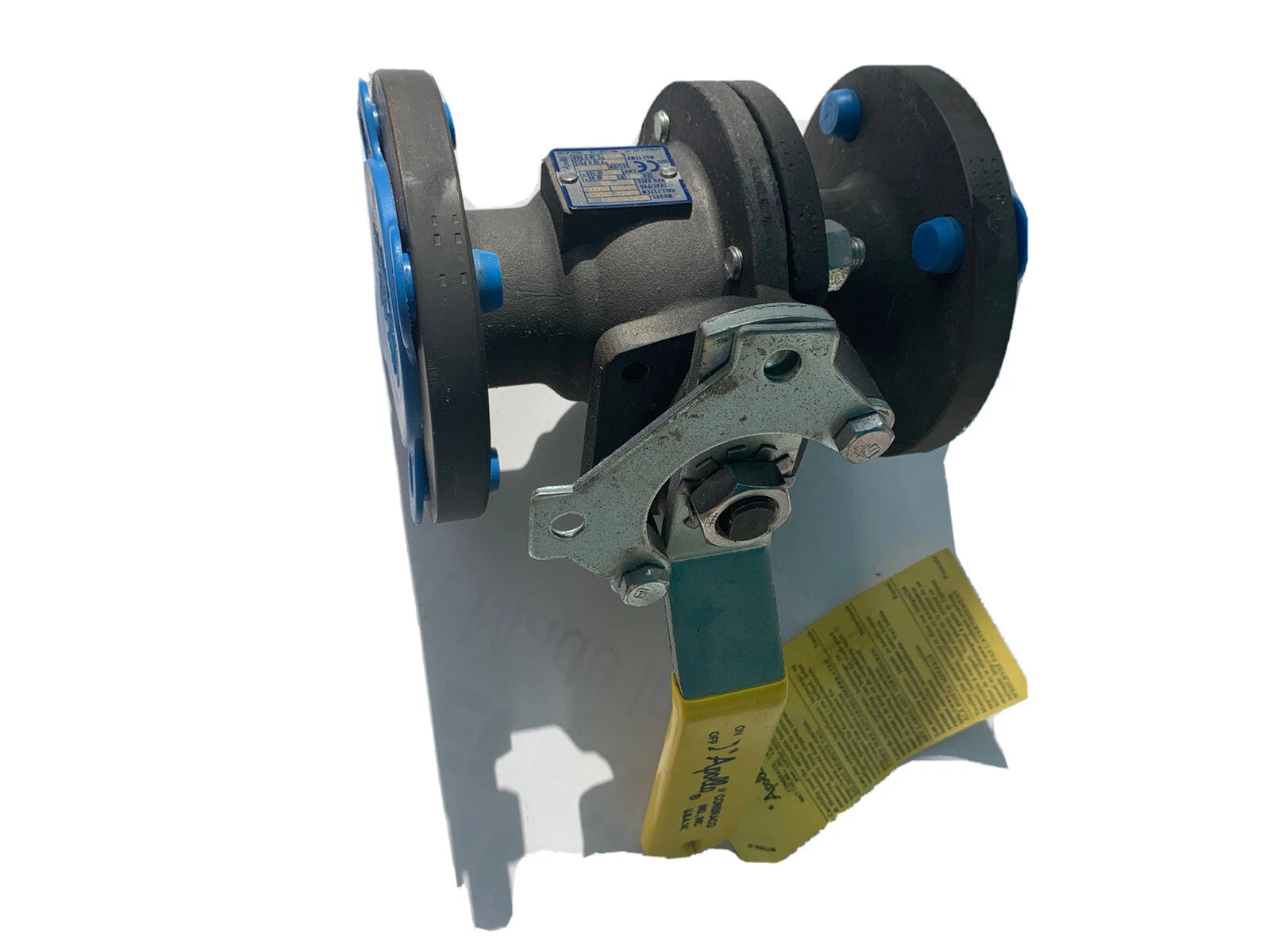

APOLLO VALVES 88A20701 Ball Valve - 1-1/2 in, Flanged, 150 lb, Carbon Steel, Full Port

Product Description

The APOLLO VALVES 88A20701 is a ball valve made for manual operation and designed for flanged connections. This valve features a carbon steel body and ball, providing a full port for efficient flow. Rated for a pressure of two hundred fifty psi, it complies with ASME Class 150RF standards and is suitable for vacuum service down to twenty-nine inches of mercury.

• Features a two-position locking device for secure operation.
• Incorporates an anti-static grounded ball and stem to prevent static discharge.
• Complies with industry standards including ASTM A216 WCB and NACE MR0175/MR0103.

Product Highlights

This valve is designed with a lever handle for ease of use. Its construction includes a blow-out proof stem and softgoods made of PTFE. The slot vented ball allows for thermal expansion.

Product Information

Standard Information

• Brand: Apollo
• Model: 88A20701

Technical Specifications

• Size: 1-1/2 in
• Material: Carbon Steel
• Pressure Rating: 250 psi
• Class: 150 lb
• Weight: 14.3 lbs
• End Style: Flanged
• Port Type: Full
• Actuator Type: Lever Handle
• Softgoods Material: PTFE
• Warranty: 5 Years
• Country of Origin: US
