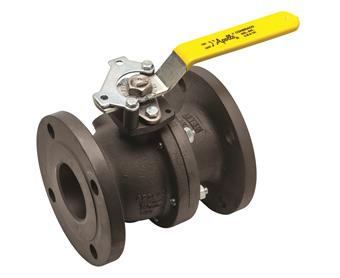

Apollo valves 88A14701A ball valve - 1-1/2 in, 150RF flanged, standard port

Product Description

The Apollo Valves 88A14701A is a reliable flanged ball valve designed for various plumbing applications. With a nominal size of one and one-half inches, this valve features a strong carbon steel body coupled with a corrosion-resistant 316 stainless steel ball. The valve operates with a lever and is rated for a pressure of 150 psi, conforming to ASME Class 150RF. Its design includes a PTFE seal and RPTFE seat that ensure durability under pressure.

• Features a locking device for secure operation.
• Anti-static design with grounded ball and stem to prevent static discharge.
• Accommodates thermal expansion with a slot vented ball.

Product Highlights

This flanged ball valve is suitable for various applications, including HVAC and general plumbing, allowing for vacuum service down to twenty-nine inches of mercury.

Product Information

Standard Information

• Manufacturer Name: Apollo Conbraco
• Warranty: Five Years

Technical Specifications

• Item: Ball Valve
• Actuator Type: Lever Operated
• Body Material: Carbon Steel
• Connection Type: Flange
• Grade: Grade 316
• Port Type: Standard
• Seal Material: PTFE
• Seal Type: PTFE
• Seat Material: RPTFE
• Shape: Straight
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: Six and one-half inches
• Pressure Class: 150 lb
• Pressure Rating: 150 psi
• Standards and Approvals: ASTM A216/A108/A193/A366/A194 | ASME Class 150RF | NACE MR0175/MR0103
