Apollo Valves 87a70a01 Ball Valve 4 Inch 300 Lb Flanged

Product Description

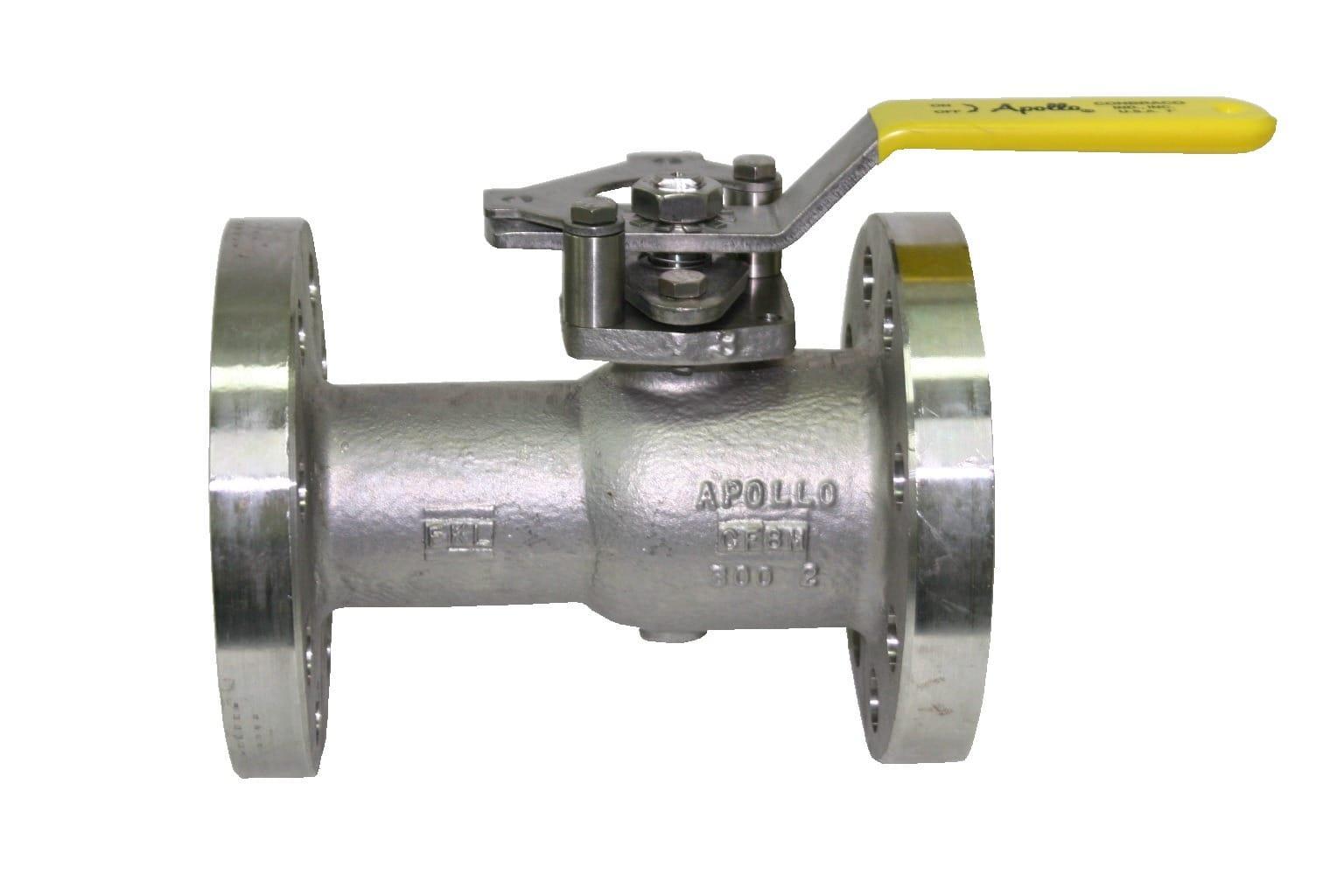

The APOLLO VALVES 87a70a01 is a 4-inch, 300 lb pressure class stainless steel ball valve from the 87A-700 series, designed for demanding industrial and commercial piping systems. It features a raised face flanged end style (ANSI 300) for secure, leak-resistant connections and a standard port configuration operated by a lever actuator. The ball and body are stainless steel, with 316 stainless steel and RPTFE trim and PTFE/RPTFE softgoods for chemical resistance and long service life. At 95 pounds, this is a heavy-duty valve built for professional installation in high-pressure process or utility piping. Domestic manufacture and a 5-year warranty back its use in critical applications.

This valve is suited for commercial and industrial piping installations requiring reliable shutoff at elevated pressures. The ANSI 300 lb flanged connection makes it a standard fit in process piping, mechanical rooms, chilled water systems, and similar applications where flanged assemblies are specified. The lever operator allows for quick quarter-turn shutoff without additional actuator hardware. Its stainless steel construction makes it appropriate for corrosive media or environments where carbon steel is not acceptable. Licensed plumbers and pipefitters are the typical installing trade for flanged valves of this size and pressure class.

Key Features

• 4-inch nominal size with ANSI 300 raised face flanged ends for bolt-up installation
• 300 lb pressure class for high-pressure piping service
• Stainless steel body and ball with 316 stainless steel and RPTFE trim for corrosion resistance
• PTFE/RPTFE softgoods for chemical compatibility and extended seat life
• Lever-operated quarter-turn actuator for fast manual shutoff
• Domestically manufactured with a 5-year warranty

Compatibility

Designed as an OEM-style flanged ball valve replacement or new installation component for ANSI 300 lb raised face flanged piping systems in commercial and industrial applications.

Installation Notes

Installation of this valve should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Depressurize and drain the system completely before removing any existing valve or breaking a flanged connection. Use appropriate gaskets rated for the service pressure and media at the raised face flange interface. Torque flange bolts in a cross pattern following the piping system specification and applicable code requirements.

Technical Specifications

• Series: 87A-700
• Nominal Size: 4 inches
• End Style: ANSI 300 Raised Face Flanged
• Pressure Class: 300 lb
• Port Type: Standard
• Actuator Type: Lever Operated
• Body Material: Stainless Steel
• Ball Material: Stainless Steel
• Trim Material: 316 Stainless Steel/RPTFE
• Softgoods Material: PTFE/RPTFE
• Inlet to Outlet Length: 12 inches
• Top to Inlet Center: 8.8 inches
• Weight: 95 pounds
• Warranty: 5 Years
• Country of Origin: US

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 87a70a01
