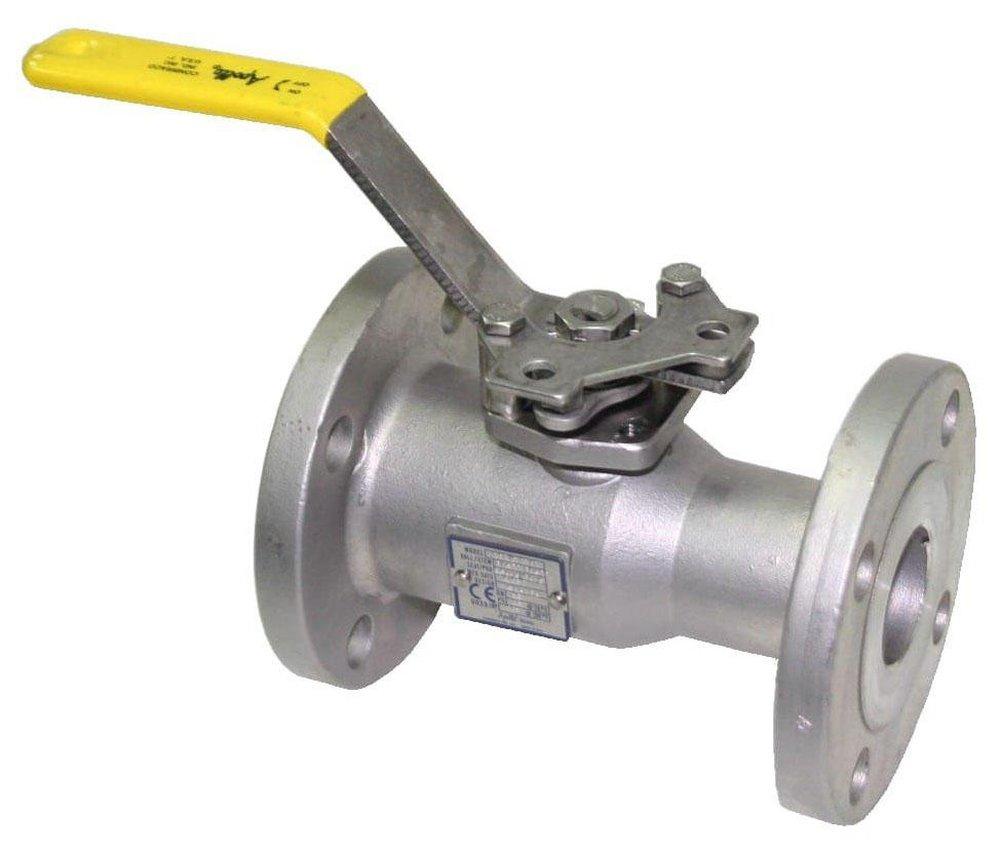

Apollo Valves 87A-10A-01 87A-100 Series 4 in. CF8M Stainless Steel Standard Port Flanged 150# Ball Valve

Product Description

The Apollo Valves 87A-10A-01 is a standard port ball valve designed for industrial applications. This valve is made from CF8M stainless steel, ensuring durability and resistance to corrosion. With a four-inch ANSI flange connection, it is rated for a maximum pressure of 150 psi for saturated steam applications. This valve presents an efficient solution for managing flow in various systems.

• Made from lead-free, CF8M stainless steel
• Designed for steam applications with maximum pressure ratings of up to 150 psi
• Incorporates a slot vented ball for thermal expansion control

Product Highlights

This Apollo valve features standard porting and a two-way flow direction that simplifies installation and operation.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 87A-10A-01

Technical Specifications

• Series: 87A-100
• Body Material: Stainless Steel
• Ball Material: 316 Stainless Steel
• Control Type: Manually Operated
• Flange Material: Stainless Steel
• Handle Style: Lever Handle
• Maximum Operating Pressure: 275 psi
• Valve Body Length: 9 inches
• Seat Material: RPTFE
• Stem Seal Material: PTFE
