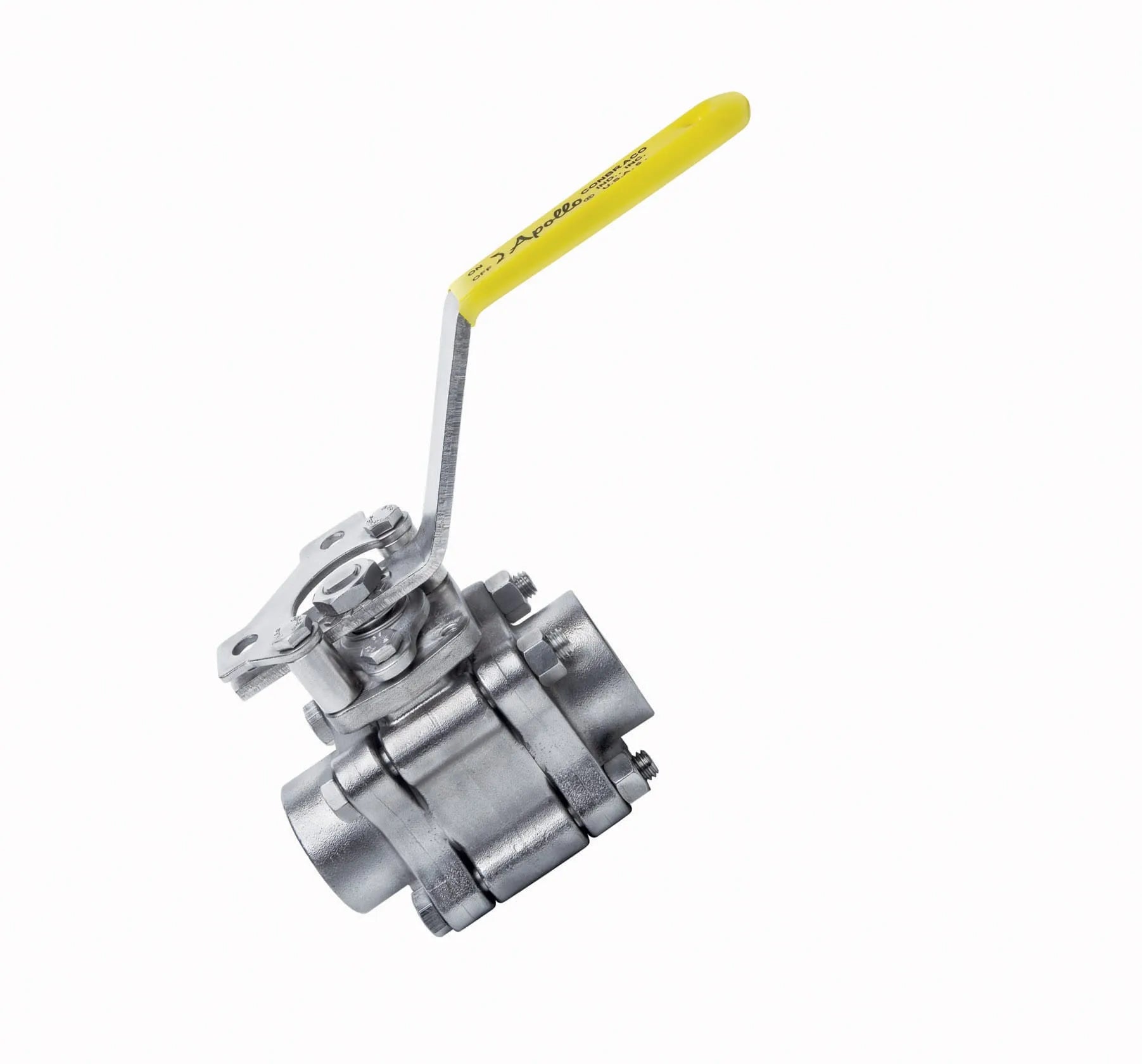

Apollo Valves 86B10101 Stainless Steel 3 Piece Full Port Ball Valve 1/4 inches

Product Description

The APOLLO VALVES 86B10101 Stainless Steel 3 Piece Full Port Ball Valve excels in both durability and functionality with its robust 3-piece construction with enclosed fasteners. The full port design alongside the swing-out center section allows for efficient fluid flow. Safety and reliability are prioritized.

• 3-piece construction w/ enclosed fasteners
• Full port
• Stainless steel trim & hardware

Product Highlights

This stainless steel ball valve features a pressure balanced solid ball, anti-blowout one-piece bottom entry stem, and compression controlled spiral wound gaskets.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 86B10101
• Country of Origin: United States

Technical Specifications

• DN1: 1/4"
• DN2: 1/4"
• etim-class: EC011343 Ball valve
• Housing material: Stainless steel
• Surface protection housing: None
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 8
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 8
• Connection 2: Internal thread conical (NPT)
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 3-part
• Full bore: Yes
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• max operating pressure liquid: 250 psi
• Item: Ball Valve
• Actuator Type: Lever Handle
• Body Material: Stainless Steel
• Bore Type: Full Bore
• Finish: None
• Grade: Grade 316
• Connection Type: NPT
• Port Type: Full
• Seal Material: PTFE
• Series: 86 Series Ball Valves
• Shape: Straight
• Size: 1/4"
• Trim Material: Stainless Steel
• Max. Pressure: Class 600 (psig)
• Temperature Range: -50F to 550F
• Handle Material: Steel
• Handle Type: Lever
• Stem: Blowout Proof
• Domestic/Import: Domestic
• End Style: FNPT

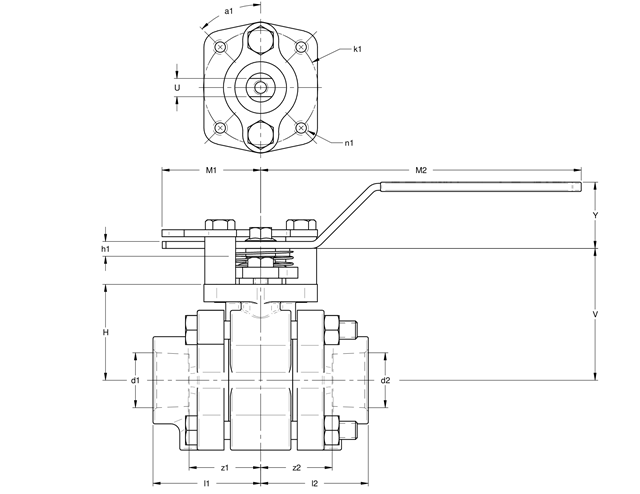

• Inlet to Outlet Length: 2.8 in
• Nominal Size: 1/4 in
• Pressure Class: 600 lb
• Pressure Rating: 250 psi SWP
• Softgoods Material: PTFE
• Top to Inlet Center: 3.02 in
• Type: 3-Piece
