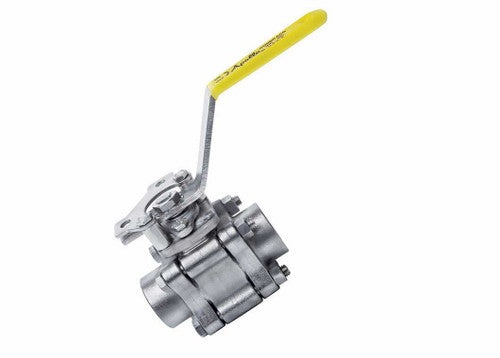

Apollo Valves 86A-102-01 3-Piece Ball Valve, 3/8 in, Stainless Steel, Full Port, NPT

Product Description

The Apollo Valves 86A-102-01 is a 3-piece ball valve made from stainless steel. It has a nominal size of 3/8 inches and a full port design that provides unrestricted flow. The valve includes NPT end connections and a lever handle for easy manual operation. This valve features a pressure-balanced solid ball and compression-controlled RPTFE gaskets.

• Includes an anti-blowout, one-piece bottom entry stem.
• Equipped with a two-position locking device for secure operation.
• Suitable for vacuum service up to twenty-nine inches of mercury and saturated steam applications up to one hundred fifty psig.

Product Highlights

The swing-out center section facilitates maintenance, allowing for easy access to internal components.

Product Information

Standard Information

• Brand: Apollo
• Weight: 2.3 lbs

Technical Specifications

• Nominal Size: 3/8 in
• End Style: NPT
• Pressure Rating: 1500 psi CWP
• Body Material: Stainless Steel
• Port Type: Full
• Softgoods Material: PTFE/RPTFE
• Actuator Type: Lever Handle
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: 2.8 in
• Manufacturer Name: Apollo Conbraco
• Orifice Size: 1/2 in
• Series: 86A-100
• Top to Inlet Center: 3.02 in
• Trim Material: 316 Stainless Steel
• Stem: Anti-blowout one piece bottom
• Type: 3-Piece
• Warranty: 5 Years
• Domestic/Import: Domestic
• Country of Origin: United States
• Temperature Range: -25F to +275F
• Connection Type: Threaded/NPT
• Full Bore: Yes
