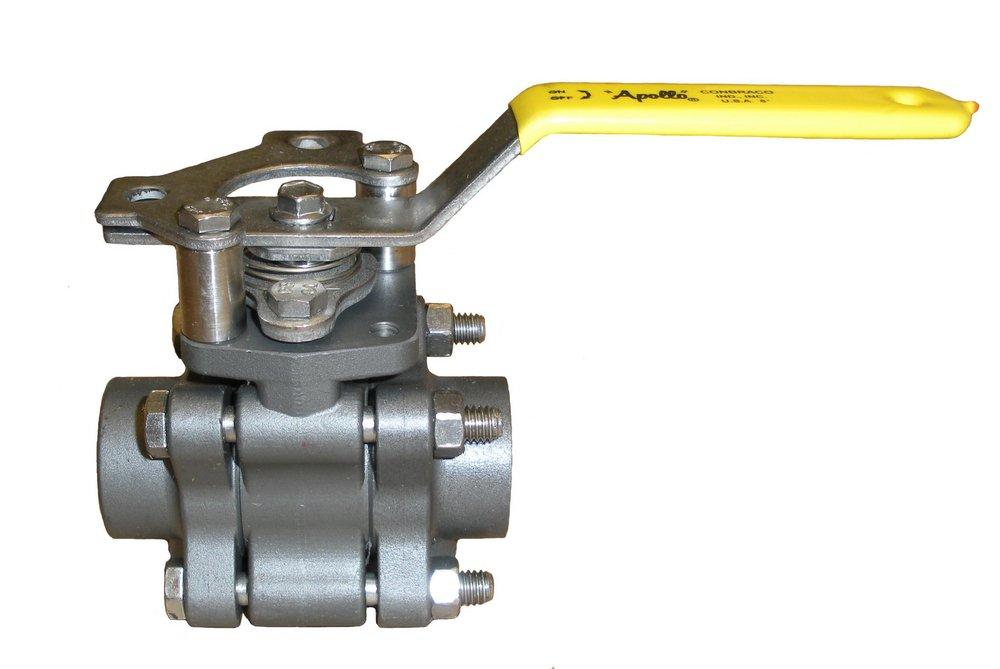

Apollo Valves 83B24701 83B-200 Series 1-1/2 in. Carbon Steel Full Port Socket Weld 600# Ball Valve

Product Description

The Apollo Valves 83B24701 is a ball valve designed for reliable fluid control in various applications. This model features a full port design for maximum flow. It is built from carbon steel, ensuring durability under pressure. The socket weld connection allows for easy installation in piping systems.

• Carbon steel construction for strength
• Full port design minimizes pressure drops
• Socket weld connection for easy integration

Product Highlights

This ball valve includes an adjustable multi-piece PTFE V style packing and a stainless steel trim for enhanced longevity and performance.

Product Information

Standard Information

• Brand: Apollo Valves
• Part Number: A83B24701

Technical Specifications

• Pressure Rating: 600#
• Size: 1-1/2 inches
• Construction: Three-piece with enclosed fasteners
• Ball and Body: Statically grounded
• Trim Material: Stainless steel
• Gasket Type: Compression controlled spiral wound
• Other Features: Two-position locking, anti-blowout one piece bottom entry stem
• Special Features: Cast bosses for bleed and drain ports
