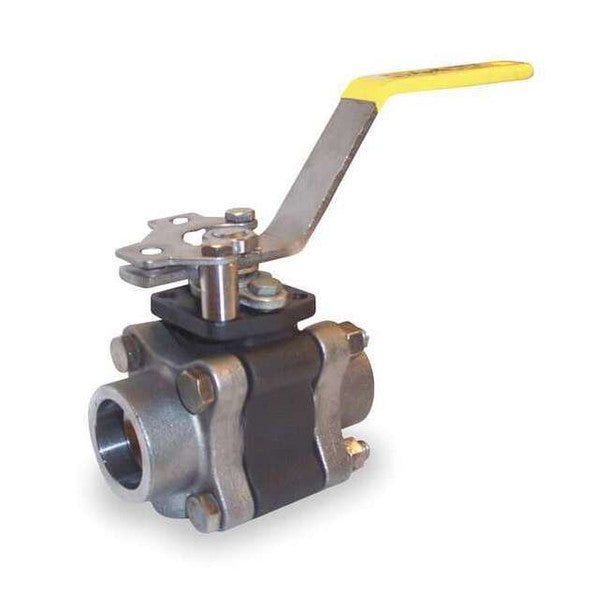

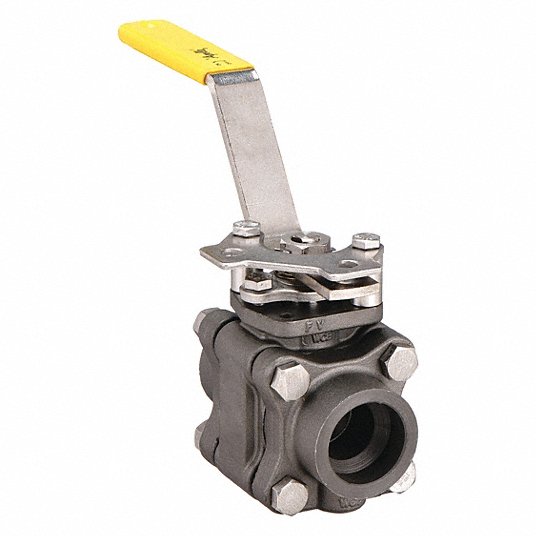

Apollo Valves 83B24301 Full Port Class 600 3 Piece Carbon Steel Ball Valve 1/2 inches

Product Description

The APOLLO VALVES 83B24301 is a full port class 600 3-piece carbon steel ball valve constructed with enclosed fasteners for added durability. The swing-out center section and full port facilitate maximum fluid flow. It is furnished with stainless steel trim and hardware, enhancing its resistance to wear and corrosion.

• 3-piece construction w/ enclosed fasteners
• Full port
• Stainless steel trim & hardware

Product Highlights

This ball valve is durable and suitable for high-heat applications, featuring a pressure-balanced solid ball and adjustable multi-piece PTFE packing.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 83B24301
• Country of Origin: United States

Technical Specifications

• DN1: 1/2"
• DN2: 1/2"
• Article number with gtin: 83B24301 (00670750060533)
• Product number with gtin: 83B24301 (00670750060533)
• Manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• Item group: 83B24X01 83B24X01 - Apollo Full Port Class 600 3 Piece Carbon Steel Ball Valve with Standard Configuration (2 x Socket Weld)
• Size: 1/2"
• Packaging: Carton (1 pce)
• Materials: steel (ASTM A216 WCB)
• Finishing: none
• Shape: straight
• Connection type: solder, solder
• Product group: valves ()
• ETIM class: EC011343 Ball valve
• Country of origin: United States
• Brand: APOLLO
• Series: 83B Series Ball Valves
• Product type: 83B24001
• UNSPSC: 40141607
• Housing material: Carbon Steel
• Surface protection housing: None
• Material ball: 316 Stainless Steel
• Material spindle: Stainless steel
• Nominal diameter connection 1: DN 15
• Connection 1: Soldered sleeve
• Nominal diameter connection 2: DN 15
• Connection 2: Soldered sleeve
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 3-part
• Full bore: Yes
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• For Media: Air; Steam
• Valve Construction: Three-Piece
• Valve Body Style: Straight
• Ball Port Style: Full Port
• Nominal Valve Size: 1/2 in
• Connection Type - Side 1: Sweat
• Connection Gender - Side 1: Female
• Connection Size - Side 1: 1/2 in
• Connection Type - Side 2: Sweat
• Connection Gender - Side 2: Female
• Connection Size - Side 2: 1/2 in
• Pipe Schedule Compatibility: Schedule 40
• Max. Pressure (CWP): 1,480 psi
• Max. Pressure (Steam): 250 psi
• Max. Pressure (Combustible Gas): Not Rated
• Vacuum Service Rating: 29 in Hg
• Coefficient of Volume (Cv): 26
• Handle: Locking Lever
• Handle Material: 300 Stainless Steel
• Seat Material: TFM(TM)
• Seal Material: PTFE
• Stem Material: 316 Stainless Steel
• Stem Type: Blowout Resistant
• Media Temp range: -20 °F to 500 °F
• 3-A Compliance: Not Rated
• Standards: ARRA Compliant; ASTM A216 WCB; CE Listed; CRN; CSA B356
• Special Features: Drain Port
• Cleaned and Bagged: Not Cleaned and Bagged
• Valve Body Color: Gray
• Overall Length: 2.8 in
• Handle Length: 5.12 in
• Handle Height: 3.02 in
• Manufacturer Warranty: 5 yr
• Valve Series: 83
• Valve Operation: Manual
• Diameter: 1 1/2 in
• Actuator Type: Lever Operated
• Body Material: Wrought Carbon Steel
• Domestic/Import: Domestic
• End Style: Socket Weld
• Inlet to Outlet Length: 2.8 in
• Port Type: Full
• Pressure Class: 600 lb
• Pressure Rating: 250 psi
• Softgoods Material: PTFE
• Top to Inlet Center: 3.02 in
• Trim Material: 316 Stainless Steel
• Type: 3-Piece
• Body Style: Inline
• Valve Ways: 2-Way
• Valve Structure: Three-Piece
• Temp. Range: -20 Degrees to 500 Degrees F
• Handle Type: Lever
• Max. Pressure: 1,480 PSI CWP
• Compliance: ISO 9001
• Operating Temperature - Maximum: 500 Degrees F
• Maximum Pressure - Steam: 250 PSI WSP
• Handle - Locking: Locking
• Operating Temperature - Minimum: -20 Degrees F
• Color - Valve Handle: Yellow
• Color - Valve Body: Gray
