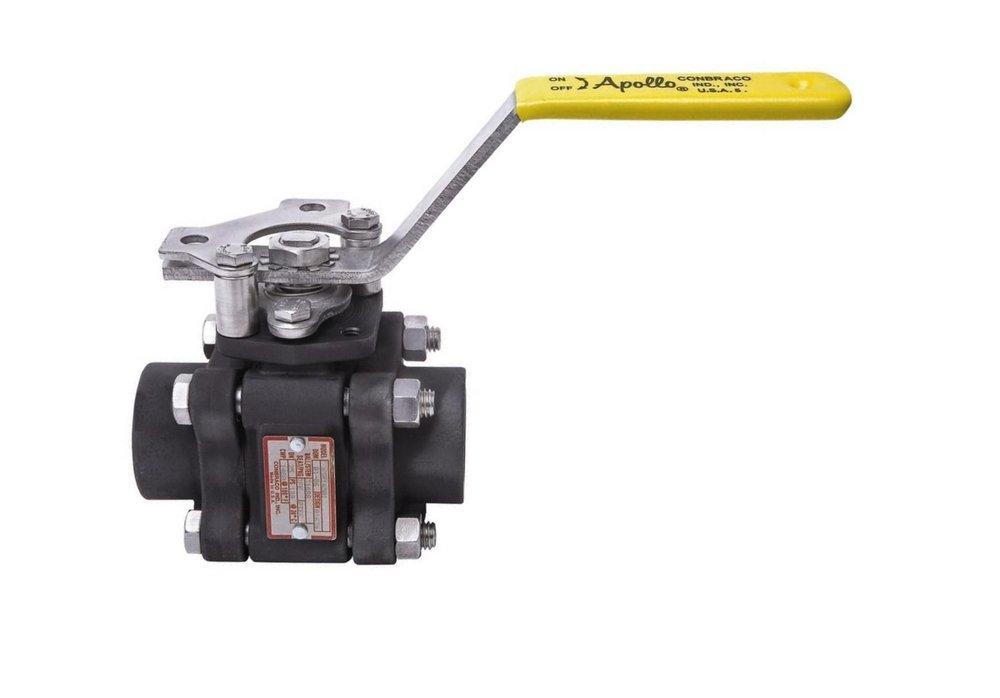

Apollo Valves 83A24601 83A-200 Series 1-1/4 in. Carbon Steel Full Port Socket Weld 1500# Ball Valve

Product Description

The Apollo Valves 83A24601 is a 1-1/4 inch carbon steel full port socket weld ball valve. It is built to handle high pressure and is ideal for various industrial applications.

• Full port design for maximum flow
• Pressure balanced solid ball
• Stainless steel trim and hardware for durability

Product Highlights

This ball valve features a swing-out center section that allows for easy maintenance. It supports a working pressure of up to 150 psi and can be used for vacuum services down to twenty-nine inches of Hg. The valve design includes cast bosses for bleed and drain ports, enhancing its functionality in different configurations.

Product Information

Standard Information

• Brand: Apollo Valves
• Part Number: A83A24601

Technical Specifications

• Size: 1-1/4 inches
• Pressure Rating: 150 psi
• Material: Carbon steel
• Trim Material: Stainless steel
• Service: Vacuum services to 29 inches of Hg
• Design Feature: Two-position locking
• Packing: Adjustable multi-piece PTFE V style packing
• Gaskets: Compression controlled RPTFE gaskets
