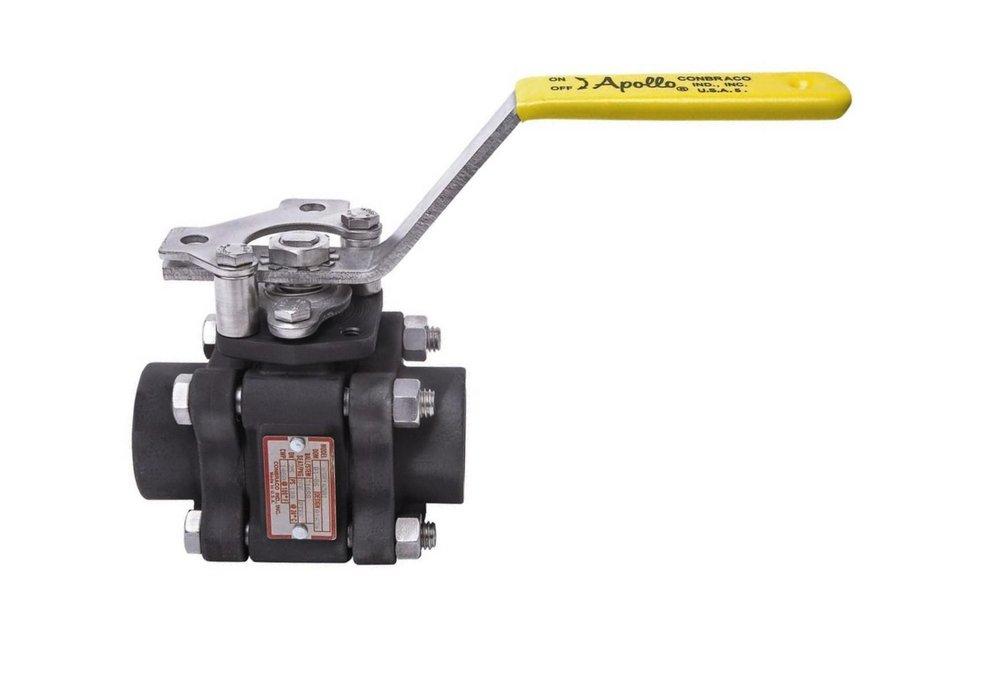

Apollo Valves 83A24301 83A-240 Series 1/2 in. Carbon Steel Full Port Socket Weld 1500# Ball Valve

Product Description

The Apollo Valves 83A24301 is a 1/2-inch carbon steel full port ball valve designed for socket weld applications. This valve operates at a maximum pressure of 1500 psi, making it suitable for various industrial uses including gas and water systems.

• Constructed from durable carbon steel
• Features a stainless steel ball and trim for better performance
• Allows for easy installation with socket weld connections

Product Highlights

This valve is essential for controlling the flow of liquids and gases in piping systems. It features a swing-out center section for maintenance and has adjustable multi-piece PTFE V style packing for improved sealing.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 83A24301

Technical Specifications

• Body Material: ASTM A216-WCB
• Ball Material: 316 Stainless Steel
• Maximum Operating Pressure: 1500 psi
• Media Pressure Rating: Steam - 150 psi, Cold Water - 1500 psi
• Connection Gender: Socket Weld
• Overall Length: 2.80 inches
• Weight: 2.30 lbs
• Locking Device: Pad-Locking Device
