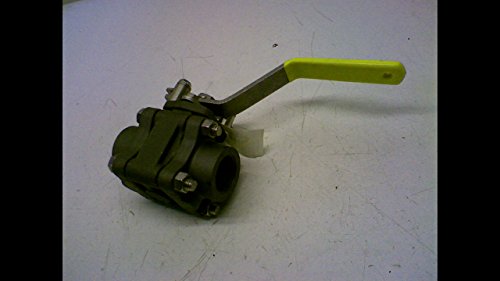

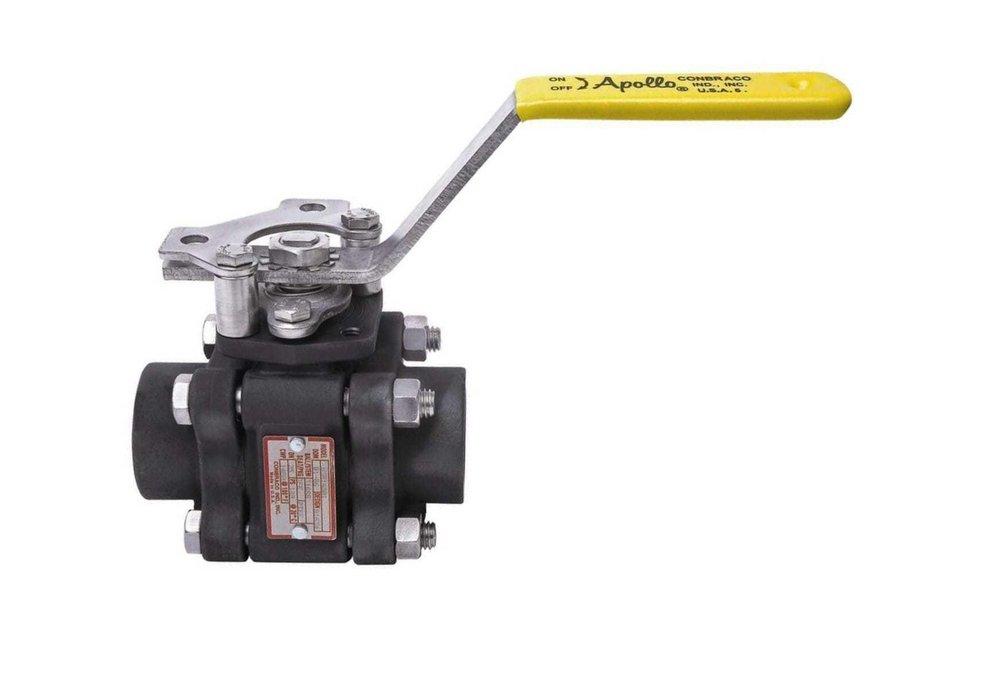

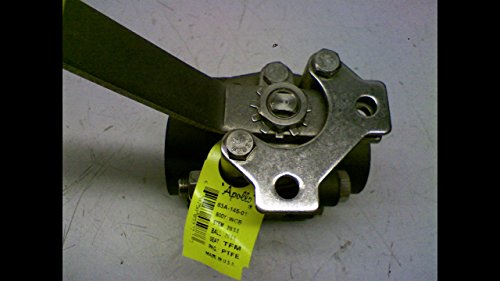

Apollo Valves 83A14501 83A-140 Series 1 in Carbon Steel Full Port NPT 1500# Ball Valve

Product Description

The Apollo Valves 83A14501 is a carbon steel full port ball valve designed for high performance. This valve features a one inch FNPT connection type and is rated for a pressure of 1500 psig CWP. Ideal for various industrial applications, this valve allows for efficient flow control and easy installation.

• 3-piece construction with enclosed fasteners
• Pressure balanced solid ball
• Adjustable multi-piece PTFE V style packing

Product Highlights

The Apollo Valves 83A14501 is suitable for a range of operations including steam and various fluids. It includes a compression controlled RPTFE gasket and an anti-blowout one-piece bottom entry stem for reliability. This valve is also equipped with cast bosses for bleed and drain ports and a vacuum service to twenty-nine inches of mercury.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 83A14501

Technical Specifications

• Ball Material: 316 Stainless Steel
• Connection Size: 1 inch
• Connection Type: FNPT
• Dimension: 4.19 inches L x 2.67 inches W
• Flow Coefficient: 68 Cv
• Item Name: Ball Valve
• Material Specifications: ASTM A216 WCB, ASTM A276
• Material: Carbon Steel
• Model: 83A-140
• Operator Type: 300 Stainless Steel Lever Handle
• Packaging Material: PTFE
• Pressure Rating: 1500 psig CWP Saturated Steam
• Stem Material: 316 Stainless Steel
• Trim Material: Stainless Steel
• Type: 3-Piece, Full Port
