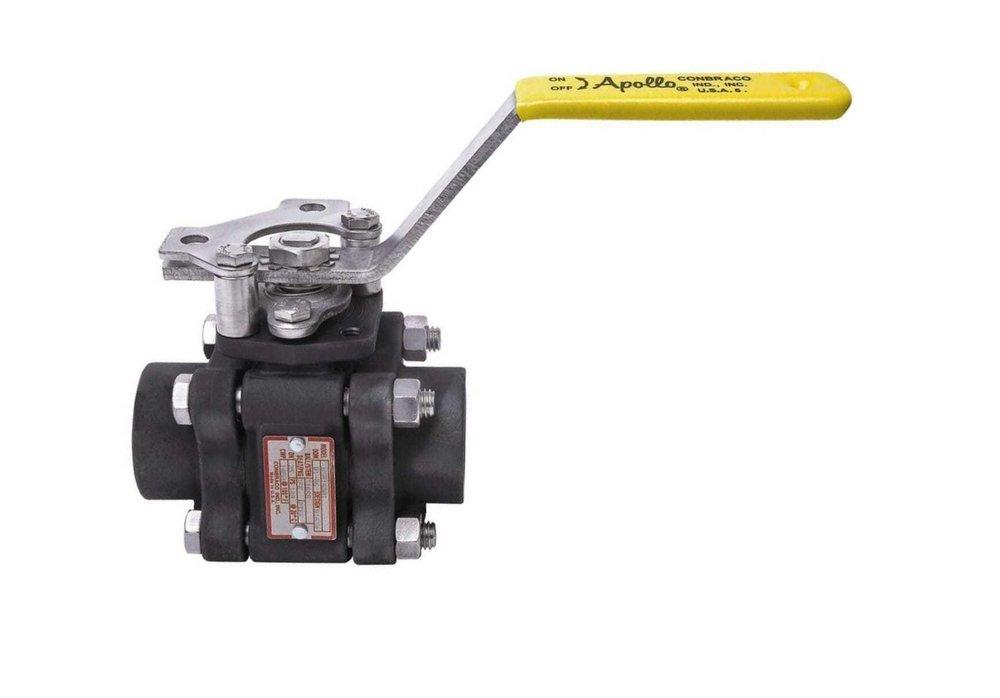

Apollo Valves 83A-148-01 83A-140 Series 2 in. Carbon Steel Full Port NPT 1500# Ball Valve

Product Description

The Apollo Valves 83A-148-01 is a reliable ball valve made from carbon steel. This valve features a full port design that provides maximum flow and pressure control. Ideal for use in various applications, it operates at a maximum pressure of one thousand five hundred psi.

• Manufactured from carbon steel with stainless steel trim and hardware.
• Includes a swing-out center section for easy maintenance.
• Pressure balanced with a solid ball for improved performance.

Product Highlights

This ball valve is suitable for cold water and steam applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 83A-148-01

Technical Specifications

• Type: 3-Piece, Full Port
• Material: Carbon Steel Body
• Ball Material: 316 Stainless Steel
• Connection Size: 2 in FNPT
• Pressure Rating: 1500 psig CWP Saturated Steam
• Overall Length: 5.86 in
• Weight: 24.35 lbs
• Flow Co-Efficient: 376 Cv
• Standards: ASME B1.20.1, MSS SP-25, MSS SP-110, NACE MR0175 (2000) & MR0103 (2012)
