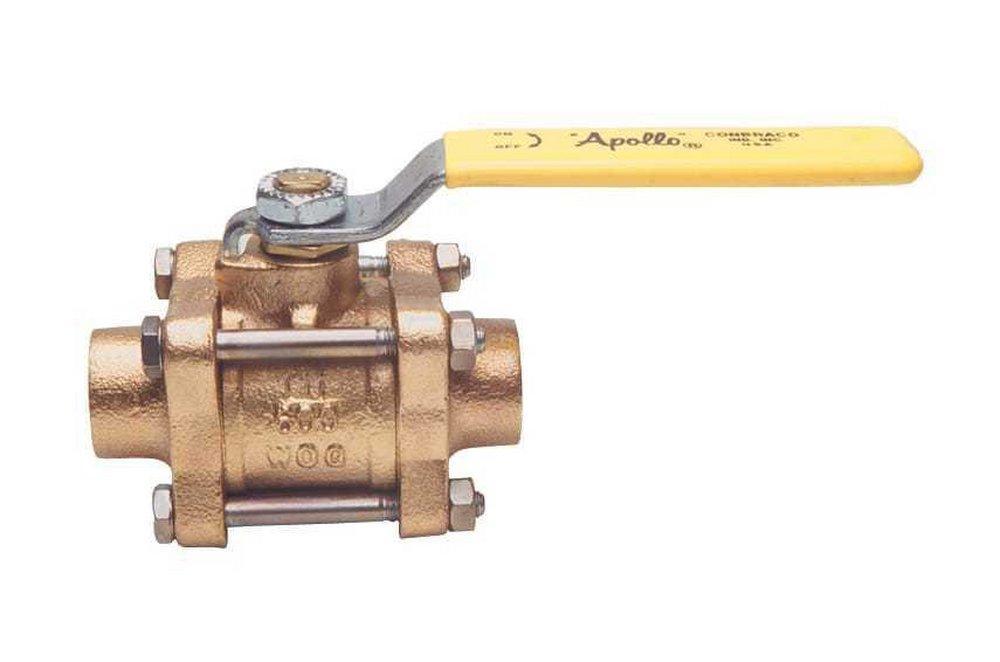

Apollo Valves 82245F3 Ball Valve 1 Inch Size Bronze 3 Pieces Soldered

Product Description

The APOLLO VALVES 82245F3 is a ball valve with a 1-inch size, constructed from bronze and assembled in 3 pieces with a soldered connection. It is designed for soft soldering or brazed installations. SAE Grade Body Bolts and RPTFE seals are standard.

• Adjustable packing gland
• Blow out proof stem
• 316 SS ball and stem
• Inline repairable

Product Highlights

This ball valve is suitable for oil and gas, commercial mechanical systems, and plumbing environments. It meets relevant UL and FM standards.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 82245F3
• Country of Origin: US

Technical Specifications

• ETIM class: EC011343 Ball valve
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 28.58 mm
• Outer pipe diameter connection 1 (imperial): 1.13"
• Connection 1: Soldered sleeve
• Nominal diameter connection 2: DN 25
• Outer pipe diameter connection 2: 28.58 mm
• Outer pipe diameter connection 2 (imperial): 1.13"
• Connection 2: Soldered sleeve
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 3-part
• Full bore: Yes
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• ASTM: ASTM B-16
• CSA Certified: CSA B51
• Collection: 82-200 Series
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• IAPMO Listed: No
• ISO: ISO 9001-2008
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• MSS: MSS SP-110
• Material: Bronze
• Material Type: C84400
• NSF Certified: No
• Origin: Domestic
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• Recommended Valve Application: HVAC, Steam
• UL Listed: No
• Valve Body Style: 3 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Dual Port
• Valve Seat Material: RPTFE
• Valve Size: 1 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Item: Ball Valve
• Ball Material: Stainless steel
• Body Material: Bronze
• Bore Type: Full Bore
• Finish: None
• Series: 82 Series
• Shape: Straight
• Size: 1"
• Spindle Material: Stainless Steel
• Surface Protection: None
• Outer Pipe Diameter Connection 1: 28.58 mm
• Outer Pipe Diameter Connection 2: 28.58 mm
• Applications: Heating, Cooling, Steam, Vacuum
• Approvals: CRN, Made in USA, Build America Buy America (BABA) Act, Buy American Act (BAA)
• Segments: Industry, Commercial Building
• Style: 3-Part
• Valve Port: Dual Port
