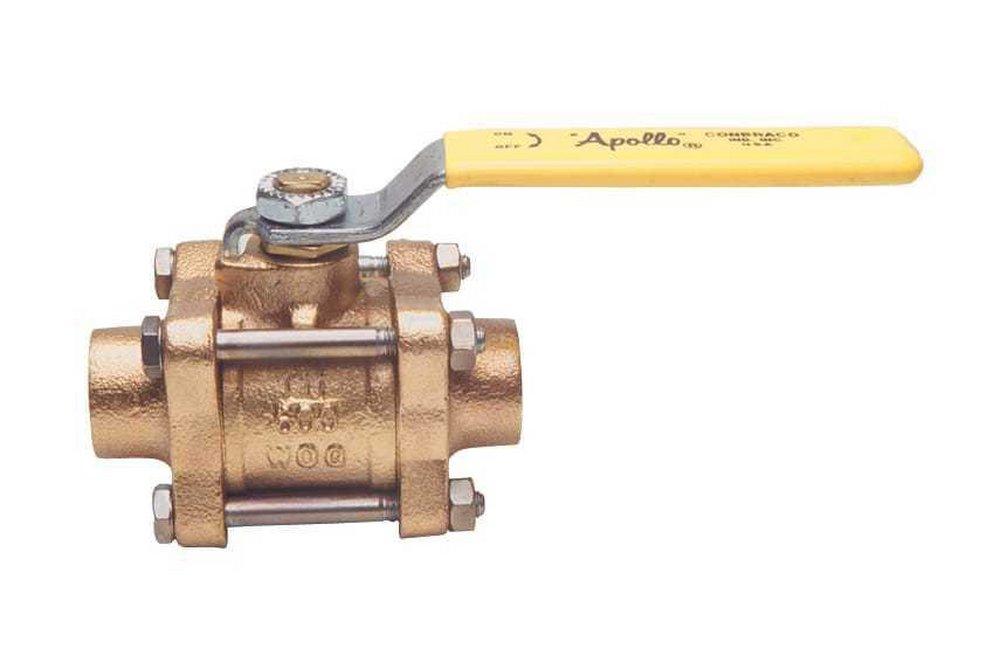

Apollo Valves 82207F3 Ball Valve 1-1/2 Inch

Product Description

The APOLLO VALVES 82207F3 is a ball valve with a 1-1/2 inch size. It features an in-line repairable design, a blow-out-proof stem, reinforced seats and seals, and an adjustable packing gland. Typical applications span oil and gas, fire protection, and industrial processing environments.

• In-line repairable
• Blow-Out-Proof Stem Design
• Reinforced seats and seals

Product Highlights

The APOLLO VALVES 82207F3 ball valve is designed for durability and easy maintenance in demanding industrial applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 82207F3
• Country of Origin: US

Technical Specifications

• ASTM: ASTM B-584-C84400
• Collection: 82-200 Series
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• FM Approved: No
• IAPMO Listed: No
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• MSS: MSS SP-110
• Material: Bronze
• Material Type: C84400
• NSF Certified: No
• Origin: Domestic
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• Recommended Valve Application: HVAC, Steam
• UL Listed: No
• UPC: 670750872228
• Valve Body Style: 3 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Dual Port
• Valve Seat Material: RPTFE
• Valve Size: 1-1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Item: Ball Valve
• Ball Material: Brass
• Body Material: Bronze
• Bore Type: Full Bore
• Color: Yellow
• Connection Type: Solder
• D1: 1.63
• D2: 1.63
• Finish: None
• Grease-free: No
• Housing Construction: 3-Part
• Medically Clean: No
• Outer Pipe Diameter Connection 1: 41.28 mm
• Outer Pipe Diameter Connection 2: 41.28 mm
• Series: 82 Series
• Shape: Straight
• Size: 1 1/2"
• Spindle Material: Brass
• Surface Protection: None
• With Filter: No
