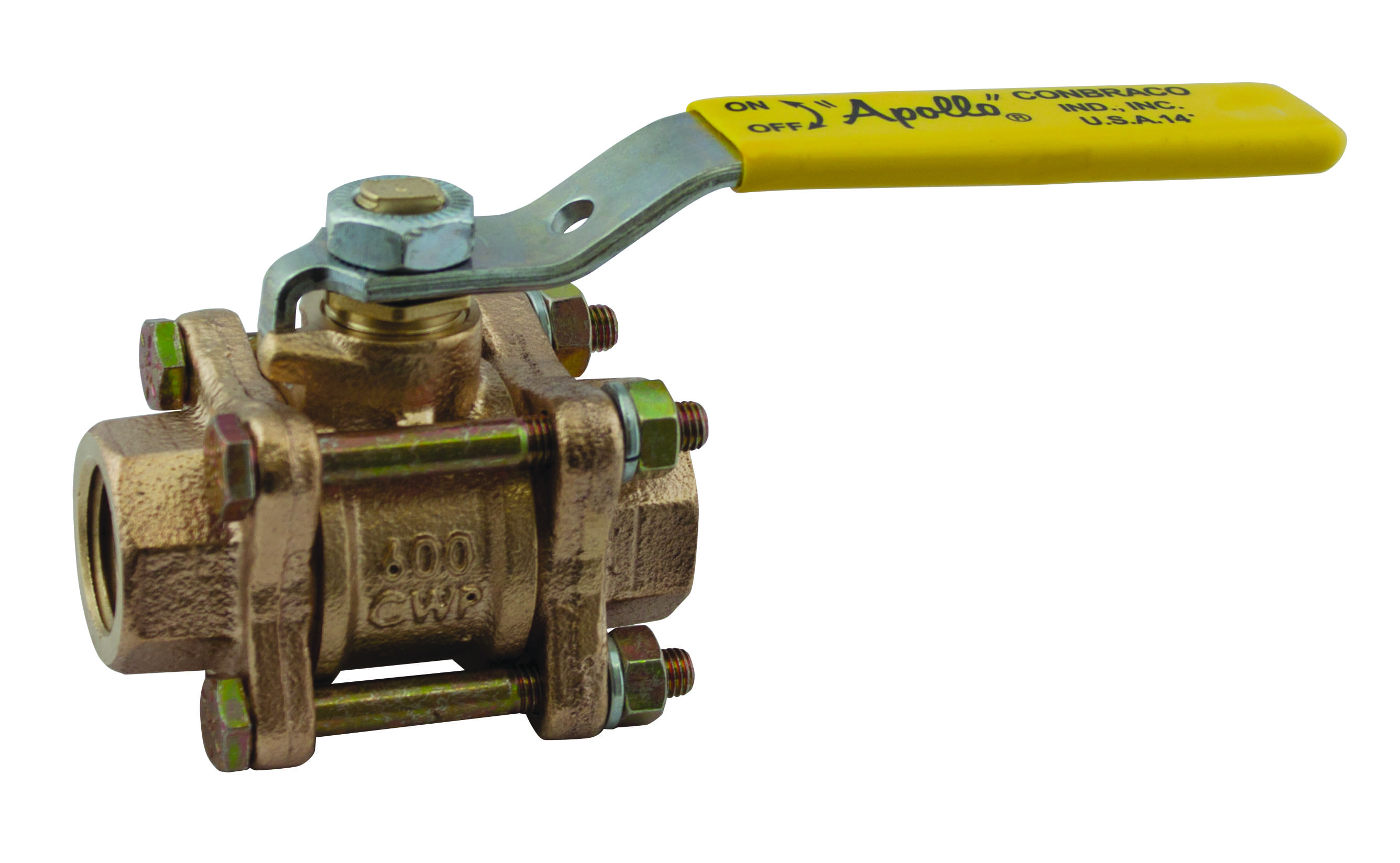

Apollo Valves 8214750 Full Port Bronze Ball Valve 1-1/2 in Fnpt

Product Description

The APOLLO VALVES 8214750 is a 3-piece, full port bronze ball valve from the Apollo 82-100 Series, engineered for in-line serviceable installations in commercial and industrial piping systems. The valve features a dezincification resistant bronze body, a 316 stainless steel vented ball stem, and a 2.25-inch locking stem extension. Connections are 1.5-inch female NPT on both ends. RPTFE seats and seals are standard, and the full port ball configuration maintains maximum flow capacity across all sizes. Every unit is 100% factory tested before shipment.

This valve is suited for plumbing, hydronic, and process piping applications where a lockable, full-bore shutoff is required. The 3-piece body design allows for in-line servicing and inspection without removing the valve from the line. The locking stem extension adds tamper resistance and makes the valve a practical choice for mechanical rooms, utility systems, and installations where valve position security is required. Licensed plumbers and pipefitters are the primary installers of this type of valve.

Key Features

• Dezincification resistant bronze body for long service life in water service
• 316 stainless steel vented ball stem resists corrosion and prevents stem blowout
• Blowout-proof stem design meets standard safety requirements for pressurized systems
• Adjustable packing gland allows field adjustment to maintain a leak-free stem seal
• Premium RPTFE seats and seals provide chemical resistance and low-friction operation
• 2.25-inch locking stem extension for tamper-resistant valve position control
• Made in USA and 100% factory tested

Compatibility

Designed as part of the Apollo 82-100 Series for use in 1.5-inch female NPT piping systems requiring a full port, lockable ball valve with a vented 316 SS ball stem.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Isolate and depressurize the line completely before installation or removal of the valve. The 3-piece body allows in-line disassembly for service without cutting out the valve body. Do not exceed the rated pressure and temperature limits of the valve for the intended service fluid.

Technical Specifications

• Series: Apollo 82-100
• Body Material: Dezincification Resistant Bronze
• Ball and Stem Material: 316 Stainless Steel Vented
• Seat and Seal Material: RPTFE
• Port Configuration: Full Port
• Body Style: 3-Piece
• Connection Type: 1.5 inches FNPT x 1.5 inches FNPT
• Stem Extension Length: 2.25 inches Locking
• Country of Origin: USA

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 8214750
