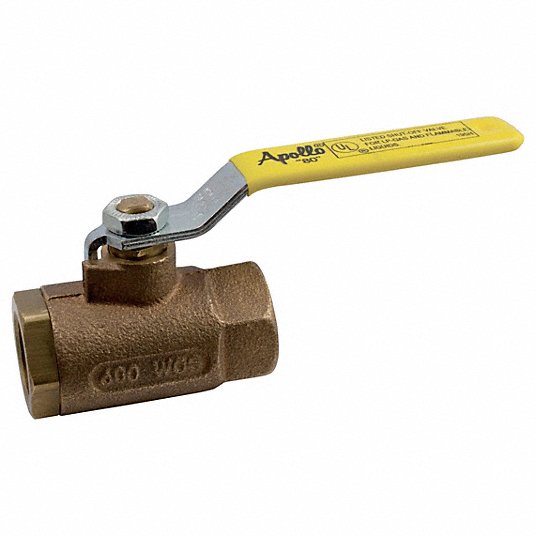

Apollo Valves 8210101 3-Piece Full Port Threaded Ball Valve 1/4 inches

Product Description

The APOLLO VALVES 8210101 is a 3-Piece Full Port Threaded Ball Valve. This in-line repairable threaded ball valve offers RPTFE seats and seals and a 600 CWP, non-shock rating. It is designed as an in-line serviceable full port bronze ball valve with SAE grade body bolts and RPTFE seals standard.

• Dezincification Resistant Bronze Body
• Adjustable Packing Gland
• Blowout Proof Stem Design

Product Highlights

The APOLLO VALVES 8210101 ball valve features premium RPTFE seats and seals and a full port ball configuration in all sizes. Made in USA.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 8210101
• Country of Origin: United States

Technical Specifications

• Size [Features]: 1/4"
• Material [Features]: Bronze
• Lead Free [Features]: No
• Port Type [Features]: Full Port
• Application [Features]: Plumbing
• Thread Type [Features]: Female
• Handle Style [Features]: Lever
• Connection Type [Features]: FNPT x FNPT
• Connection Method [Features]: Threaded
• Max Pressure (PSI) [Features]: 600
• Valve Construction [Features]: 3 piece
• size: 1/4"
• materials: bronze (ASTM B584-C84400)
• shape: straight
• brand: Apollo
• series: 82 Series Ball Valves
• product type: 8210X01
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Nominal diameter connection 1: DN 8
• Outer pipe diameter connection 1: 13.72mm
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 8
• Outer pipe diameter connection 2: 13.72mm
• Connection 2: Internal thread conical (NPT)
• Housing construction: 3-part
• Full bore: Yes
• Actuator Type: Standard Lever
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT

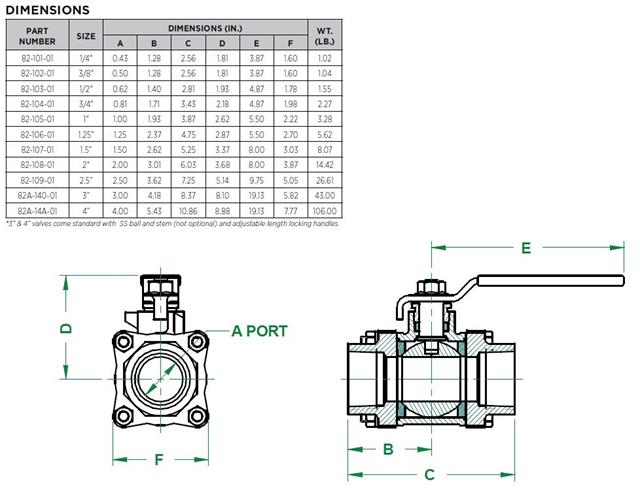

• Inlet to Outlet Length: 2.56 in
• Nominal Size: 1/4 In
• Port Type: Full
• Pressure Rating: 82-100 series: 600 psi CWP, 150 psi SWP
• Series: 82-100
• Softgoods Material: RPTFE
• Temperature Rating: 500 deg F
• Top to Inlet Center: 1.81 in
• Trim Material: Chrome Plated Brass Stem and RPTFE Seat
• Type: Pipes, Valves & Fittings > Valves > Ball Valves
• MPN: 8210101
• UPC: 670750720116
• For Media: Steam
• Valve Body Style: Straight
• Ball Port Style: Full
• Port: Nominal Valve Size
• Nominal Valve Size: 1/4 in
• Connection Type - Side 1: NPT
• Connection Gender - Side 1: Female
• Connection Size - Side 1: 1/4 in
• Connection Type - Side 2: NPT
• Connection Gender - Side 2: Female
• Connection Size - Side 2: 1/4 in
• Max. Pressure (CWP): 600 psi
• Max. Pressure (Steam): 150 psi
• Max. Pressure (Combustible Gas): Not Rated
• Media Temp. Range: -20 00b0F to 500 00b0F
• Coefficient of Volume (Cv): 0.01
• Vacuum Service Rating: 29 in Hg
• 3-A Compliance: Not Rated
• Standards: ASTM B584-C84400; Build America Buy America Act (BABA); Buy American Act (BAA); CRN
• Handle Material: PVC; Zinc-Plated Steel
• Handle: Lever
• Stem Type: Blowout Resistant
• Cleaned and Bagged: Not Cleaned and Bagged
• Valve Body Color: Bronze
• Overall Length: 2.56 in
• Handle Length: 3.87 in
• Handle Height: 1.81 in
• Valve Series: 82
• UNSPSC: 40141607
• California Prop 65 Warning: N
• Restricted Sale Item Code: A9
• Seat Material: PTFE
• Seal Material: PTFE
• Stem Material: Brass
• Packing Material: M.P.T.F.E.
• End Connection: Threaded (FNPT)
• Item: Ball Valve
• Ball Material (description): ASTM B16 Brass,chrome plated (1/4" -2.5" ) ASTM 276-316 SS (3" -4")
• Design Type: 3-Piece
