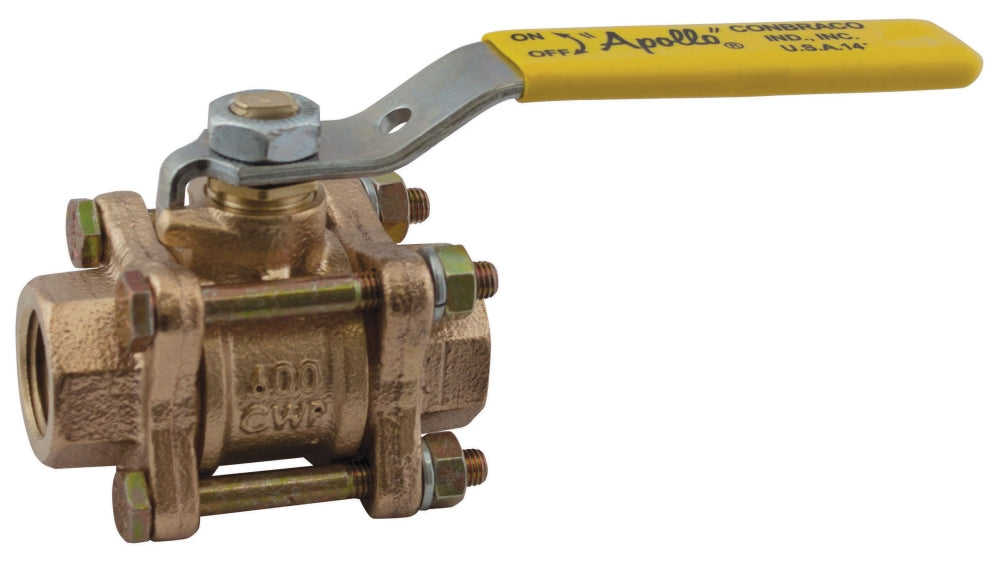

Apollo Valves 82-107-01 1-1/2 in. Bronze Full Port Ball Valve

Product Description

The Apollo Valves 82-107-01 is a 1-1/2 inch threaded ball valve designed for plumbing applications. This three-piece valve features a full port design and is suitable for high-pressure conditions of up to 600 PSI CWP and 150 PSI SWP. It is made from a dezincification-resistant bronze body, ensuring durability and long-term performance.

• Full port ball configuration
• Adjustable packing gland
• Blowout-proof stem to enhance safety

Product Highlights

This valve is ideal for commercial applications and allows for inline serviceability, which simplifies maintenance and repair. Premium RPTFE seats and seals provide reliable performance under high temperature conditions, rated up to 500 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 82-107-01

Technical Specifications

• Nominal Size: 1-1/2 inch
• End Connection: Threaded x Threaded
• Body Material: ASTM B584 C84400 Dezincification Resistant Bronze
• Ball Material: ASTM B16/B283 Chrome Plated Brass
• Stem Material: ASTM B16 Chrome Plated Brass
• Seal Material: MPTFE
• Seat Material: RPTFE
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• Temperature Rating: 500 degrees Fahrenheit
• Port Type: Full
• Applicable Standards: CSA B51, MSS SP-110, CRN OC10908.5C
• Weight: 8.07 pounds
• Dimensions: 5.25 inches long
