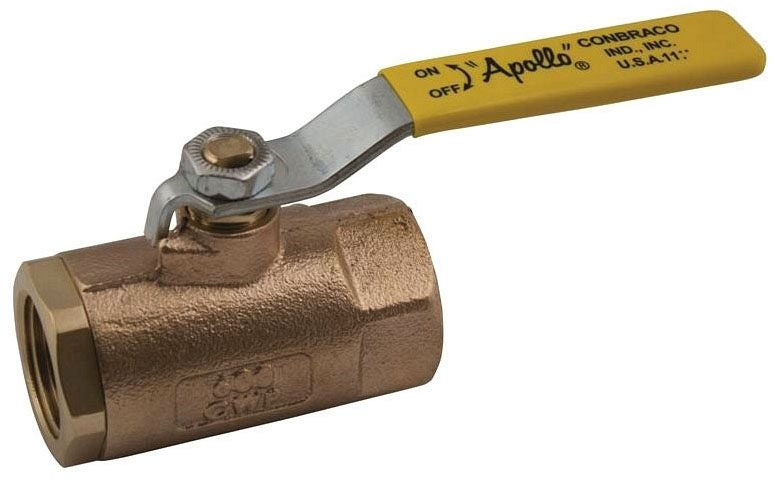

Apollo Valves 7o104hc 3/4 in Bronze Ball Valve 600 Cwp

Product Description

The APOLLO VALVES 7o104hc is a 3/4-inch, two-piece bronze body ball valve with a standard port configuration and threaded end connections. It is rated for 600 CWP (cold working pressure), making it well-suited for demanding plumbing, hydronic, and general mechanical piping systems. The valve ships with a hose cap and retaining chain, keeping the outlet protected when the port is not in use. Licensed plumbers and mechanical contractors install this valve in commercial and residential applications where a reliable, pressure-rated shutoff is required.

This valve fits standard 3/4-inch threaded pipe installations. The two-piece body design allows for in-line servicing and straightforward installation in tight mechanical spaces. Its bronze construction resists corrosion in water service and is a common choice for hydronic heating systems, domestic water distribution, and general industrial fluid handling where threaded connections are specified.

Key Features

• 600 CWP rating supports high-pressure plumbing and mechanical piping applications
• Two-piece bronze body provides corrosion resistance and in-line serviceable construction
• 3/4-inch standard port with threaded ends for direct pipe connection
• Includes hose cap and retaining chain to protect the outlet when not in use
• Compact ball valve design provides reliable full shutoff with a quarter-turn operation

Compatibility

Designed as an OEM-style replacement or direct-install ball valve for 3/4-inch threaded pipe systems in residential and commercial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local plumbing codes and the IPC. Shut off and depressurize the water supply completely before removing or installing any valve. Apply thread sealant or PTFE tape to male threads per standard practice, and verify all connections are leak-free before returning the system to service.

Technical Specifications

• Size: 3/4 inches
• Connection Type: Threaded
• Body Material: Bronze
• Configuration: Two Piece
• Port: Standard Port
• Cold Working Pressure (CWP): 600 psi
• Included Accessories: Hose Cap and Chain
• Weight: 1.39 pounds

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 7o104hc
