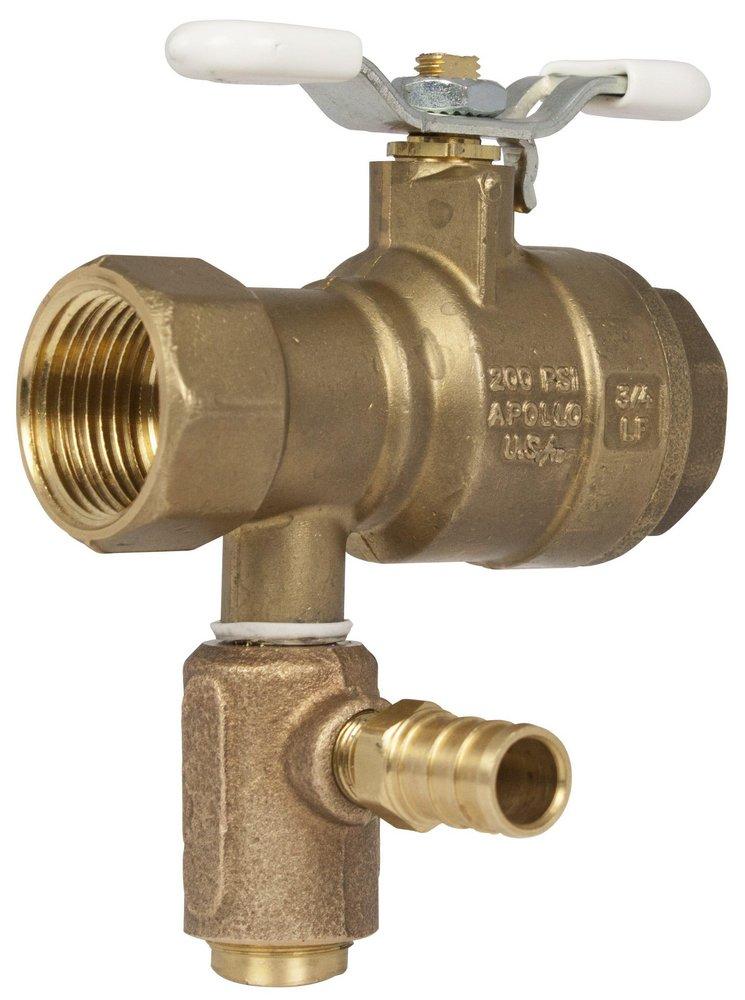

Apollo Valves 78RV995125 Shutoff and Thermal Expansion Relief Valve 125#

Product Description

The APOLLO VALVES 78RV995125 is a shutoff and thermal expansion relief valve. This valve is designed for heating applications and is lead law compliant and certified. It is suitable for commercial use and has F1807 end connections.

• Lead Law Compliant
• Valve Size: 3/4 in
• Maximum Temperature: 210

Product Highlights

Combination water heater shutoff and thermal expansion relief valve with F1807 end connections.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 78RV995125
• Country of Origin: United States

Technical Specifications

• ANSI: ANSI 372
• Application: Heating
• CSA Certified: CSA B125.1, CSA B125.3
• Collection: 78-RV Series
• End Connection 1: F1807
• End Connection 2: F1807
• End Connection 3: F1807
• End Connections: F1807
• FM Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 3-1/2
• Material: Brass, Bronze, Plastic, Stainless Steel
• Material Type: DZR, Nylon, RTFE, Silicone
• Maximum Temperature: 210
• NSF Certified: No
• Origin: Domestic
• Pressure - Maximum: 125 psi, 400 psi
• Pressure Class: 125#
• Recommended Valve Application: Commercial
• UL Listed: No
• UPC: 670750062650
• Valve Body Material: Brass
• Valve Seat Material: RTFE, Silicone Rubber
• Valve Size: 3/4 in
• Valve Type: Relief Valve
• Width: 2-3/5
• Applications: Heating
• brand: Apollo
• series: 78RV Series Thermal Expansion Relief Valves
• product type: 78RV
