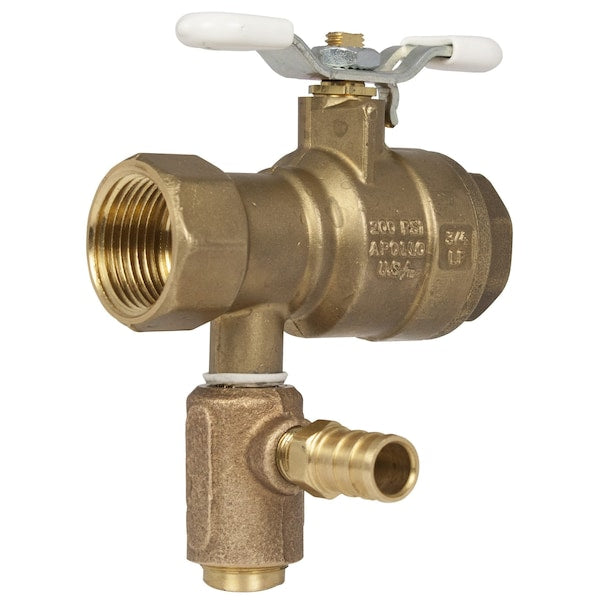

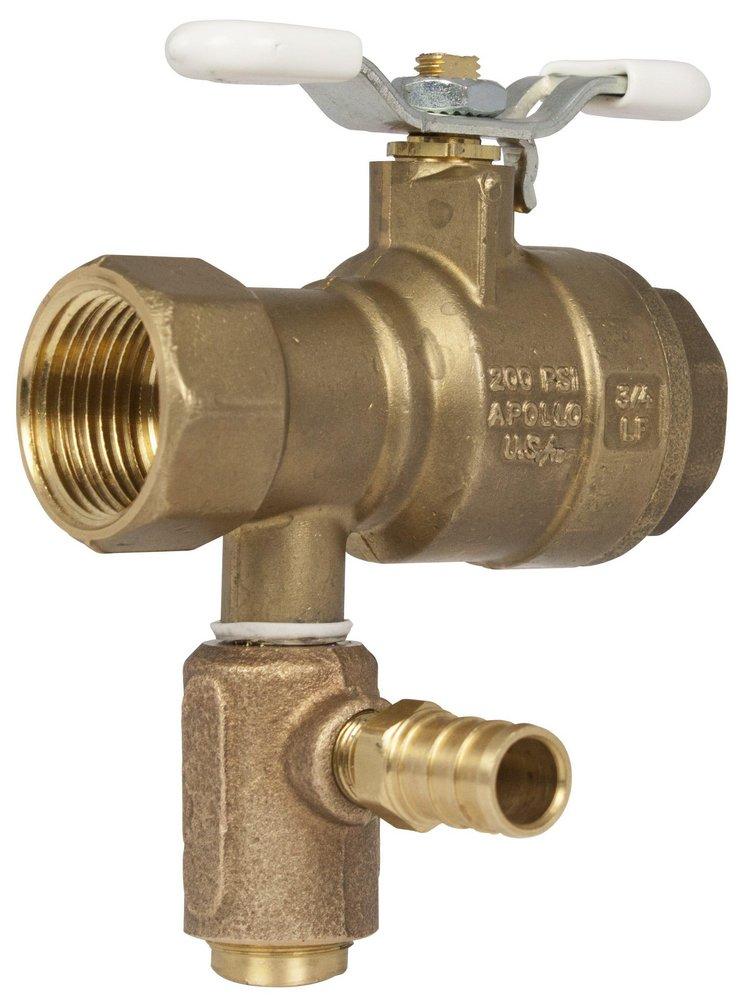

Apollo Valves 78RV117125 78-RV Series Relief Valve 3/4 in. 125#

Product Description

The APOLLO VALVES 78RV117125 is a 78-RV Series 3/4 in. Brass NPT 125# 210F Relief Valve designed for heating and commercial applications. Constructed from brass, bronze, rubber, stainless steel, and steel, it ensures durability and reliability. This valve is Lead Law Compliant and IAPMO Listed.

• Requires Certification
• Lead Law Compliant
• Valve Size: 3/4 in

Product Highlights

Combination water heater shutoff and thermal expansion relief valve. Ideal for commercial buildings and heating applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 78RV117125
• Country of Origin: United States

Technical Specifications

• article number with gtin: 78RV117125 (00670750067952)
• product number with gtin: 78RV117125 (00670750067952)
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• item group: 78RV 78RV - Apollo Combination Water Heater Shutoff and Thermal Expansion Relief Valve
• size: 3/4"
• materials: brass (C27451 (lead-free))
• product group: valves
• country of origin: United States
• brand: Apollo
• series: 78RV Series Thermal Expansion Relief Valves
• product type: 78RV
• unsps: 40141606
• ANSI: ANSI 372
• Application: Heating
• CSA Certified: CSA B125.1, CSA B125.3
• Collection: 78-RV Series
• End Connection 1: NPT
• End Connection 2: NPT
• End Connection 3: NPT
• End Connections: NPT
• FM Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Brass, Bronze, Rubber, Stainless Steel, Steel, Plastic
• Material Type: DZR, RTFE, Silicone
• Maximum Temperature: 210
• NSF Certified: No
• Origin: Domestic
• Pressure - Maximum: 125 psi, 400 psi
• Pressure Class: 125#
• Recommended Valve Application: Water, Commercial
• UL Listed: No
• UPC: 670750067952
• Valve Body Material: Brass
• Valve Seat Material: RTFE, Silicone Rubber
• Valve Size: 3/4 in
• Valve Type: Relief Valve
• Applications: Heating
• Segments: Commercial Building
