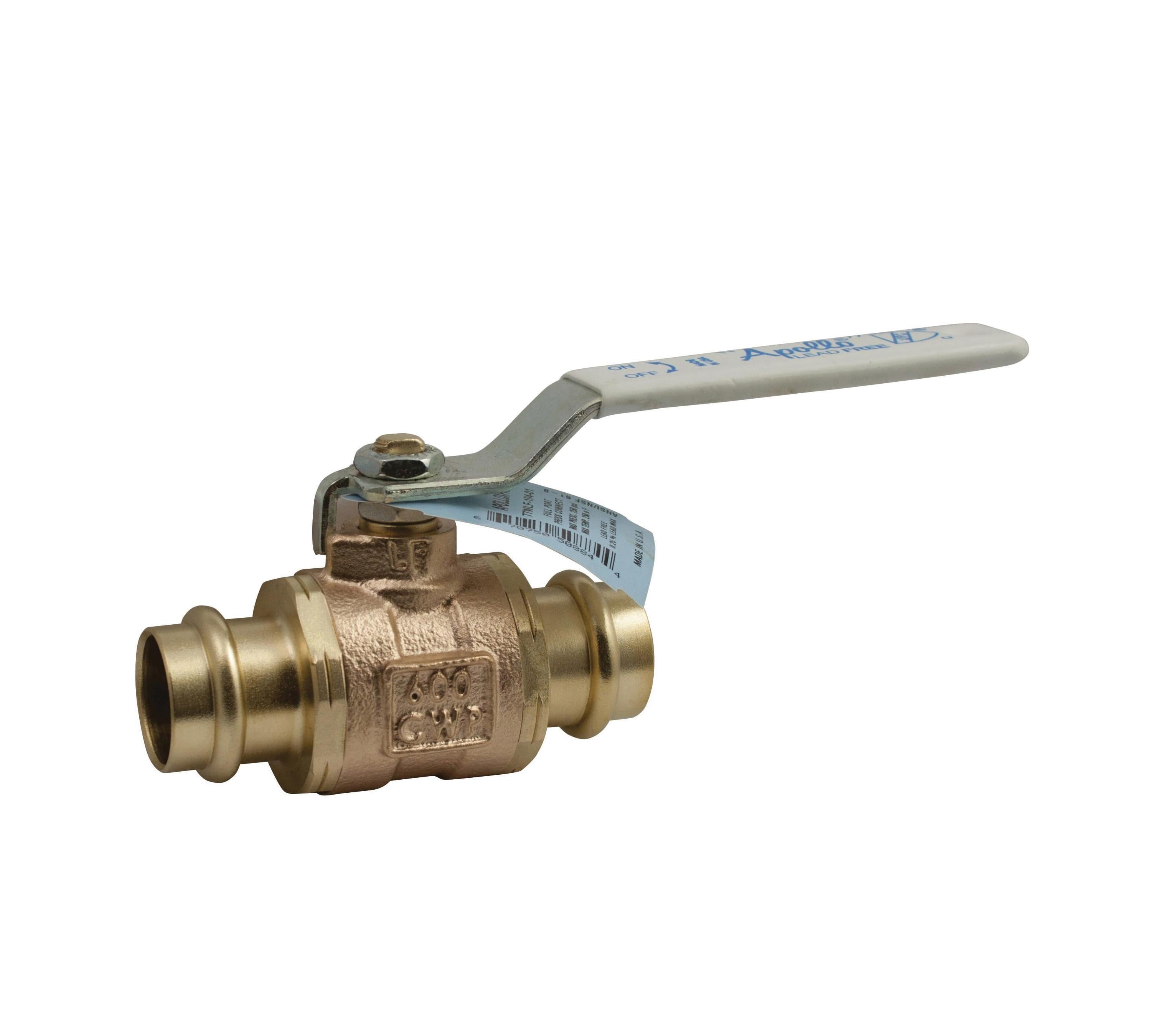

Apollo Valves 77WLF-106-01 Bronze Ball Valve 1-1/4 in Replacement MPN 77WLF-106-01

Product Description

The Apollo Valves 77WLF-106-01 is a lead-free bronze ball valve that is ideal for use in potable water systems. This valve is designed for press connections and has a connection size of one and one-quarter inches. It ensures maximum performance with a working pressure rating of three hundred psi.

• Lead-free construction
• Full-port flow design
• Corrosion-resistant materials

Product Highlights

This valve features a reliable leak before press technology and is compatible with Ridgid XL press tools.

Product Information

Standard Information

• Brand: Apollo Valves
• Part Number: 77WLF-106-01

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: One and one-quarter inches
• Connection Type: Press
• Dimension: Five point two two inches long
• Material: Bronze
• Model: 77WLF-100
• Operator Type: Plated Steel/Insulated Polyvinyl Handle
• Pressure Rating: Three hundred psi
• Seat Material: Multi-Fill PTFE
• Temperature Rating: Zero to two hundred fifty degrees Fahrenheit
• Standards/Certifications: MSS SP-110, ANSI/NSF 61 and 372, ANSI AB 1953, IAPMO/ANSI Z1157, ISO 9001:2008 standard, ARRA compliant
• Applications: For potable water systems
