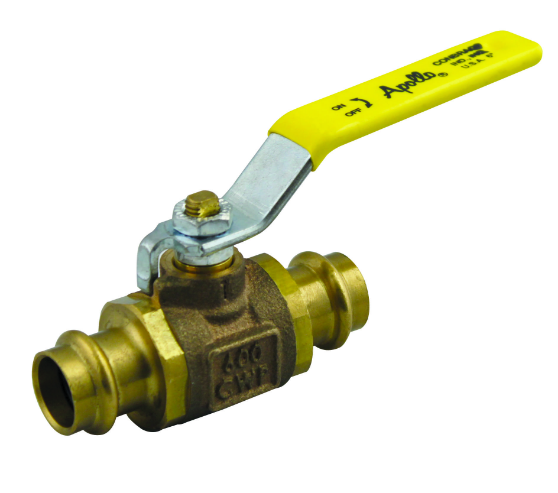

Apollo Valves 77w104hc Ball Valve 3/4 Inch

Product Description

The APOLLO VALVES 77W104HC ball valve is designed for direct mechanical connection to ASTM B88 Type K, L and M copper tubing. It features a 3/4 in hose connection with heavy brass cap with heavy duty stainless steel chain to protect the threads. The 77W-HCA Series is ideal for most plumbing and heating systems.

• Ridgid XL press tool compatible
• Adjustable stem packing
• Fast, reliable, economical press installation

Product Highlights

Features Leak Before Press technology and a dezincification-resistant bronze body. 100% factory tested and made in the USA.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77W104HC
• Country of Origin: United States

Technical Specifications

• Item: Ball Valve
• Body Material: Bronze
• Port: Full
• Size: 3/4"
• Max. Pressure: 200 psi
• Temperature Range: 0F to 200F
• Handle Material: Plated Steel
• Handle Type: Lever
• Actuator Type: Lever Handle
• Ball Material: Brass
• Cast Bronze: Cast Bronze
• Domestic/Import: Domestic
• End Style: Press x Hose
• Inlet to Outlet Length: 3.7 in
• Media: Water
• Nominal Size: 3/4 x 3/4 In
• Orifice Size: 3/4 in
• Pressure Rating: 300 psig
• Series: 77W-HCA Series
• Softgoods Material: EPDM/PTFE/RPTFE
• Temperature Rating: 250 deg F
• Top to Inlet Center: 1.91 in
• Trim Material: Brass Stem/PTFE/RPTFE Seat
• Type: Hose Thread, Cap Option
