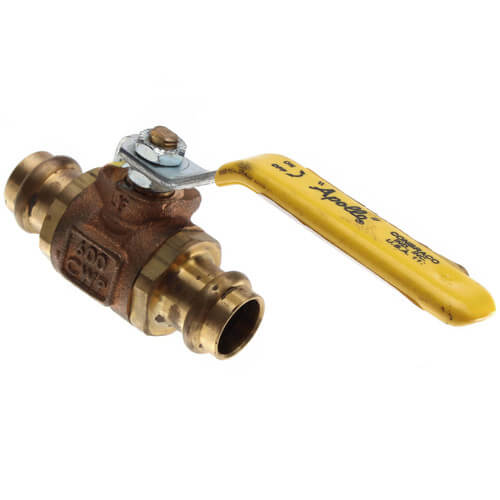

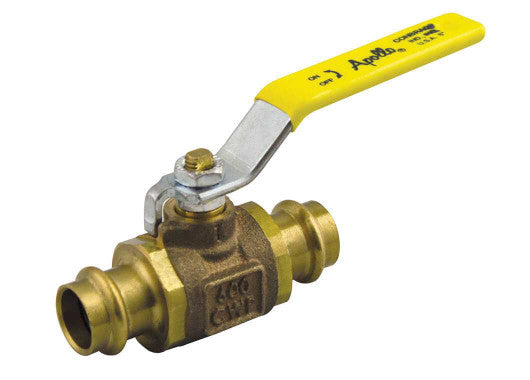

Apollo Valves 77W10401 ApolloXpress full port press ball valve (3/4 inches 36 Cv)

Product Description

Apollo Valves 77W10401 is a 3/4" ApolloXpress full-port press ball valve designed for heating, cooling and non-potable plumbing. It features a heavy pattern cast bronze two-piece body, full-port flow with Cv 36, and Leak Before Press technology. The valve includes adjustable stem packing, a blow-out proof stem and steel lever handle, is 100% factory tested and silicone free, and is rated to 250 psig for water, hydronic systems and low pressure steam.

• Full-port bronze two-piece construction with Cv 36 and 250 psig maximum working pressure
• ApolloXpress press x press connection with Leak Before Press technology and adjustable stem packing
• Blow-out proof stem and steel lever handle; compatible with chilled and hot water, hydronic heating (up to 50% glycol), and low pressure steam (15 psi max)

Product Highlights

3/4" ApolloXpress full-port bronze press ball valve, Cv 36, 250 psig, factory tested and silicone free

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77W10401
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• MPN: 77W10401
• Size: 3/4"
• Connection Type: Press x Press
• Connection Method: APOLLOXPRESS (press)
• Material: Bronze
• Valve Construction: Two-piece
• Port Type: Full Port
• Cv: 36
• Max Pressure (PSI): 250 psig
• Temperature Range: 0�F to 250�F
• Handle Type: Lever
• Handle Material: Steel
• Stem: Blow-out proof
• Adjustable Stem Packing: Yes
• Approved Media: Chilled and hot water, hydronic heating (up to 50% glycol), low pressure steam (15 psi max)
• Lead Free: No
• Silicone Free: Yes
• Manufactured In: Made in USA
• Compliance: ARRA compliant
• Not Suitable For: Flammable gas service
• Compatibility Notes: Not compatible with soft annealed copper tubing
• Factory Test: 100% factory tested
