Apollo Valves 77V14901 Ball Valve 2-1/2 Inch Size

Product Description

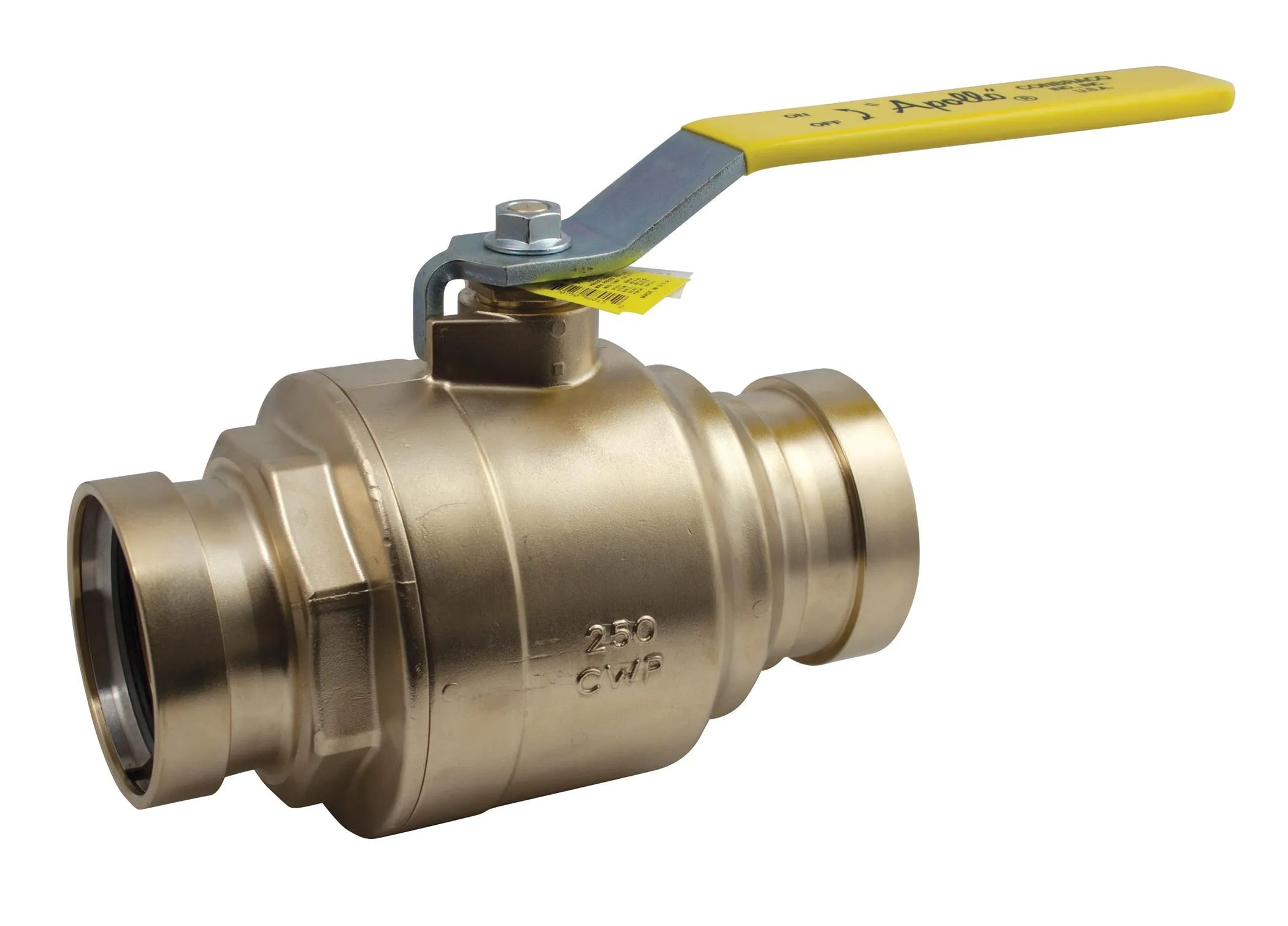

The APOLLO VALVES 77V14901 is a brass 2 Pcs Full Port Ball Valve with a stainless steel ball and stem, featuring a standard configuration and 2-1/2 Inch Size. It is designed for fast, reliable, and economical press installation. Suitable for HVAC and steam applications.

• Full-port flow
• Adjustable stem packing
• Blowout-proof stem

Product Highlights

This ball valve features a 2-piece, heavy pattern forged design and corrosion-resistant materials. It's 100% factory tested and silicone-free.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77V14901
• Country of Origin: US

Technical Specifications

• Item: Ball Valve
• Ball Material: Stainless steel
• Body Material: Brass
• Bore Type: Full Bore
• Connection Type: Press
• Contour Code: V
• D-1: 3.18
• D1: 2.63
• D2: 2.63
• E: 1.12
• Finish: None
• Grease-free: No
• Handgrip Length: 1"
• Handle Type: Lever Handle
• Handle/hand Wheel Height: 0.9"
• Housing Construction: 2-Part
• Length Of Connection 1: 4.26"
• Length Of Connection 2: 3.78"
• M1: 1
• M2: 7.75
• Max. Operating Pressure: 300 psi
• Medically Clean: No
• Outer Pipe Dia. Connection 1: 2.63"
• Outer Pipe Dia. Connection 2: 2.63"
• Seal Material: PTFE
• Series: 77V Series Ball Valves
• Shape: Straight
• Size: 2 1/2"
• Spindle Material: Stainless steel
• Surface Protection: None
• Type: Standard
• U: 1.26
• V: 3.22
• With Filter: No
• With Thermometer: No
• Working Length Connection 1: 2.38"
• Working Length Connection 2: 1.9"
• Y: 0.9
• Z1: 2.38
• Z2: 1.9
• ANSI: ANSI Z1157
• ASTM: ASTM A-276 Type 316, ASTM B-16 C36000
• BAA Compliant: No
• Clean Bagged: No
• Collection: 77V-140 Series
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Plated Steel
• IAPMO Listed: Yes
• ISO: ISO 9001:2008
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• MA Approved: No
• MSS: MSS SP-110
• Material: Forged Brass, Rubber, Stainless Steel
• Material Type: 316, EPDM
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 300
• Recommended Valve Application: HVAC, Steam
• Temperature Range: 0 to 250 Deg F (-18 to 121 Deg C)
• UL Listed: No
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 2-1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Weight: 12
• cUPC Certified: No
• Valve Port: Full Port
