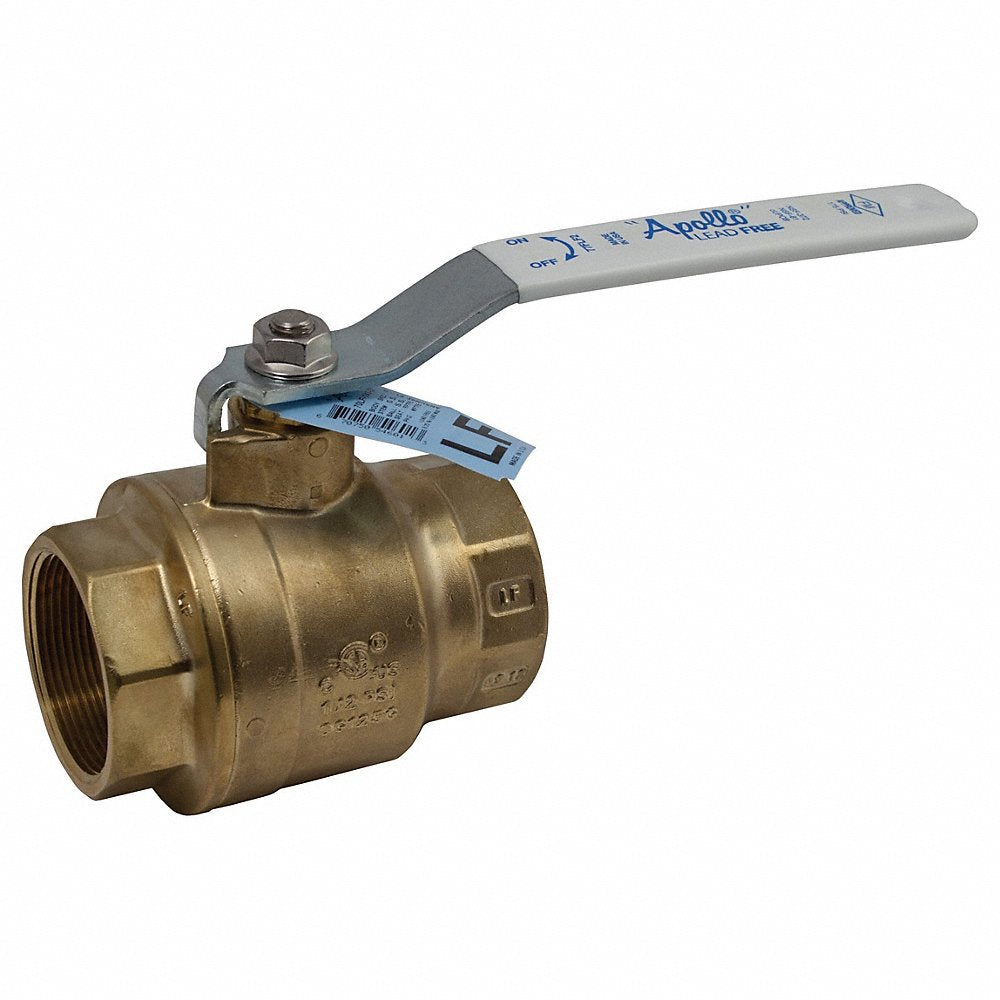

Apollo Valves 77FLF10504 Full Port Lead Free Brass Ball Valve 2-1/4 Inch Stem Extension 1 Inch Size 2 x FNPT

Product Description

The APOLLO VALVES 77FLF10504 is a full port lead free brass ball valve designed for reliable fluid control. It features a 2-1/4 inch stem extension and a 1 inch pipe size, with 2 x FNPT connections. This valve is constructed from brass for both the ball and body, ensuring durability and performance up to 600 psi maximum pressure. The full bore design facilitates efficient flow in various applications.

• Lead-free brass construction for the ball and body ensures durability and compliance.
• Full bore design with 1 inch pipe size and 2 x FNPT connections for efficient flow.
• Features a 2-1/4 inch stem extension for enhanced accessibility and operation.

Product Highlights

Lead-free full port brass ball valve with 2-1/4 inch stem extension and 1 inch FNPT connections, rated for 600 psi.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77FLF10504
• Country of Origin: US

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• Bore Type: Full Bore
• Color: Yellow
• Connection Type: FNPT
• D1: 1.32
• D2: 1.32
• Finish: None
• Grease-Free: No
• Housing Construction: 2-Part
• Max Pressure: 600 psi
• Medically Clean: No
• Outside Pipe Diameter Connection 1: 33.4 mm
• Outside Pipe Diameter Connection 2: 33.4 mm
• Pipe Size: 1"
• Seal Material: PTFE
• Series: 77F Series
• Shape: Straight
• Spindle Material: Brass
• Stem Size: 2 1/4"
• Surface Protection: None
• With Coupling Connection 1: No
• With Coupling Connection 2: No
• With Drain Option: No
• With Drain Valve: No
• With Filter: No
• With Insulation Shell: No
• With Check Valve: No
• With Thermometer: No
