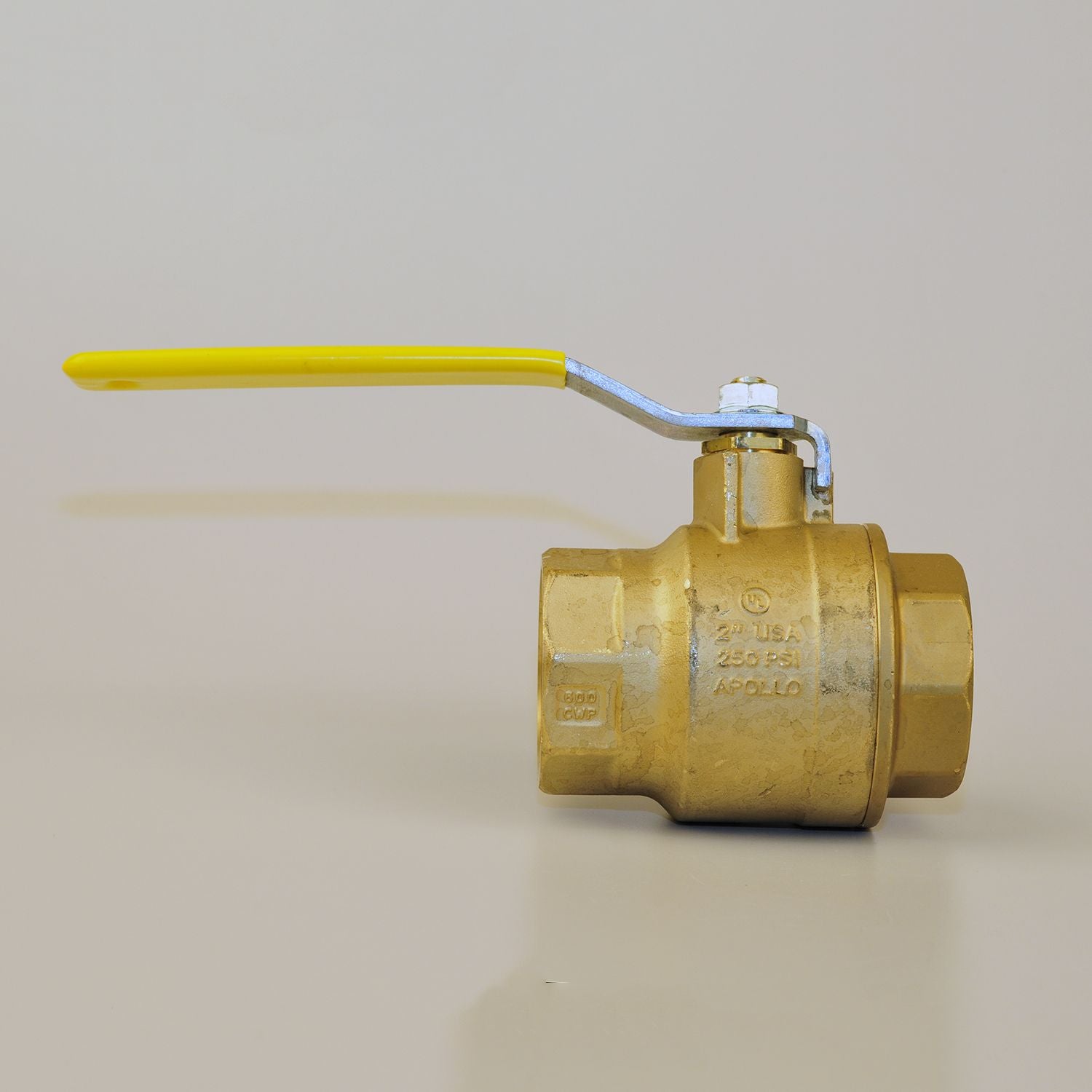

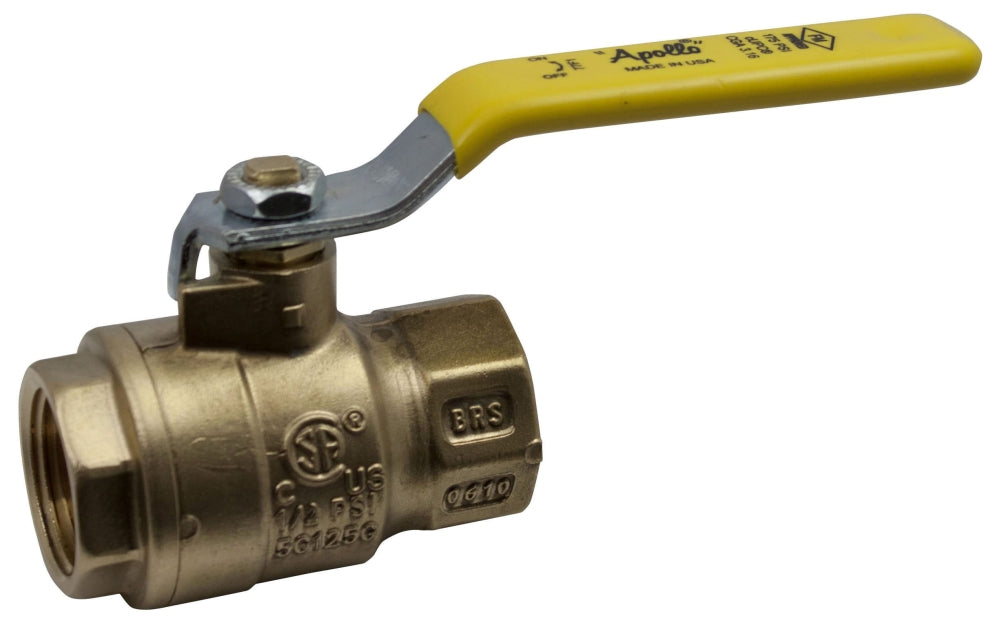

Conbraco 77F10801 2 NPT x NPT 600 PSI CWP Ball Valve

Product Description

The Conbraco 77F10801 is a two-piece ball valve designed for a range of plumbing applications. This valve features a two-inch NPT connection and is rated for a maximum pressure of six hundred PSI CWP and one hundred fifty PSI SWP. The body is made from forged brass alloy, ensuring strength and durability. The chrome-plated brass ball provides effective flow control and resistance to corrosion.

• Two-inch nominal size with full port design.
• Lever handle for easy operation.
• Suitable for commercial and residential applications including HVAC and irrigation.

Product Highlights

This ball valve is built for various applications such as fuel gas, fire protection, and plumbing. It is ANSI certified and adheres to various safety standards.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750707131

Technical Specifications

• Nominal Size: 2 inches
• End Connection: NPT x NPT
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• Temperature Rating: 400 Deg F
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass Alloy
• Port Type: Full
• Actuation Type: Lever Handle
• Applications: HVAC, Fuel Gas, Fire Protection, Irrigation, Plumbing
