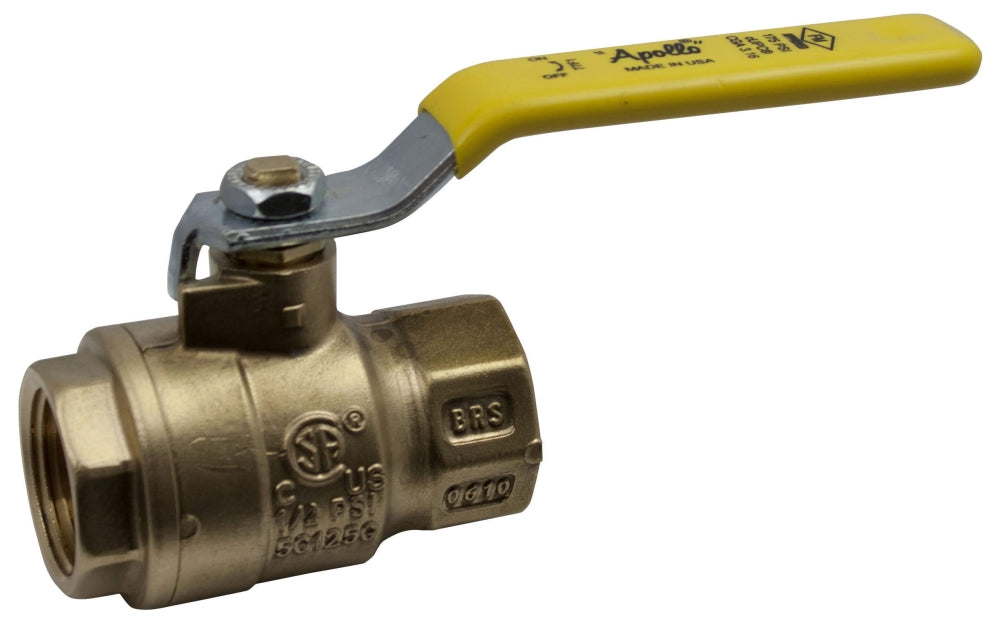

Apollo Valves 77F-106-01 Ball Valve 1-1/4 Inch Full Port Brass

Product Description

The Apollo Valves Ball Valve model 77F-106-01 is a highly robust valve designed for plumbing professionals, ensuring high performance in demanding applications. Fabricated with premium grade C37700 forged brass alloy, this valve features a full port for maximum flow and operational efficiency.

• Full Port configuration for optimal flow and performance
• Equipped with a lever handle for easy operation
• Dual threaded NPT connections for versatile plumbing installations

Product Highlights

Constructed with corrosion-resistant chrome plated brass ball and a blowoutproof stem for enhanced durability and safety. It operates at a temperature range up to 400 degrees Fahrenheit and can handle pressures up to 600 PSI CWP and 150 PSI SWP. Ideal for HVAC, fire protection, and commercial applications.

Product Information

Standard Information

• Manufacturer: Apollo Valves
• Product SKU: 56413
• UPC: 67075072416
• Product Type: Ball Valve

Technical Specifications

• Material: C37700 Forged Brass Alloy
• Port Type: Full
• Pressure Ratings: 600 PSI CWP, 150 PSI SWP
• Temperature Rating: 400 degrees Fahrenheit
• Connection Type: NPT x NPT
• Standards: UL, CSA, CUPC, FM 1140, CGA 3.16, ANSI, ASME, MSS-SP-110
