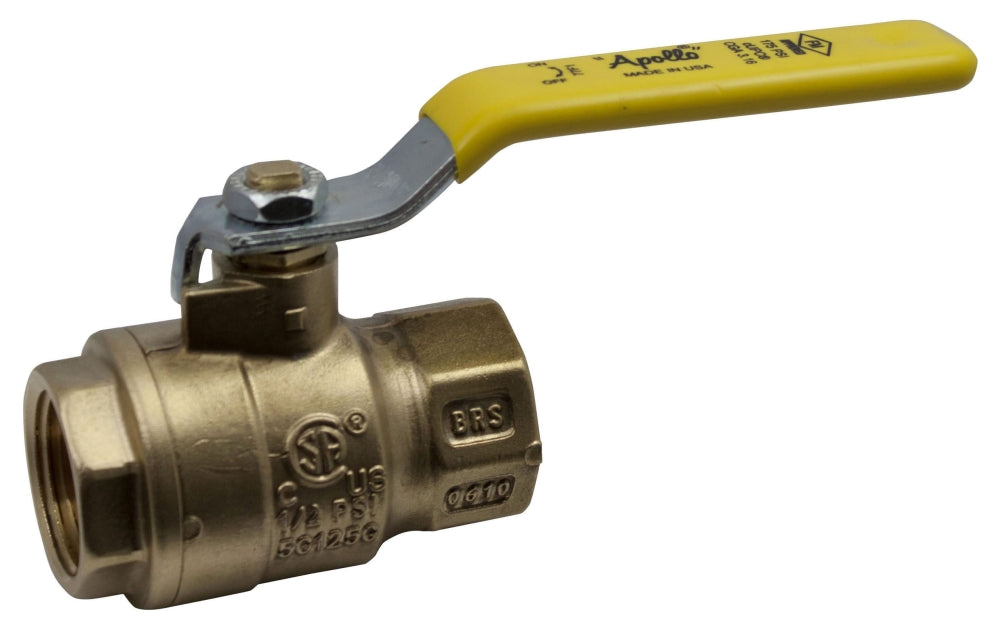

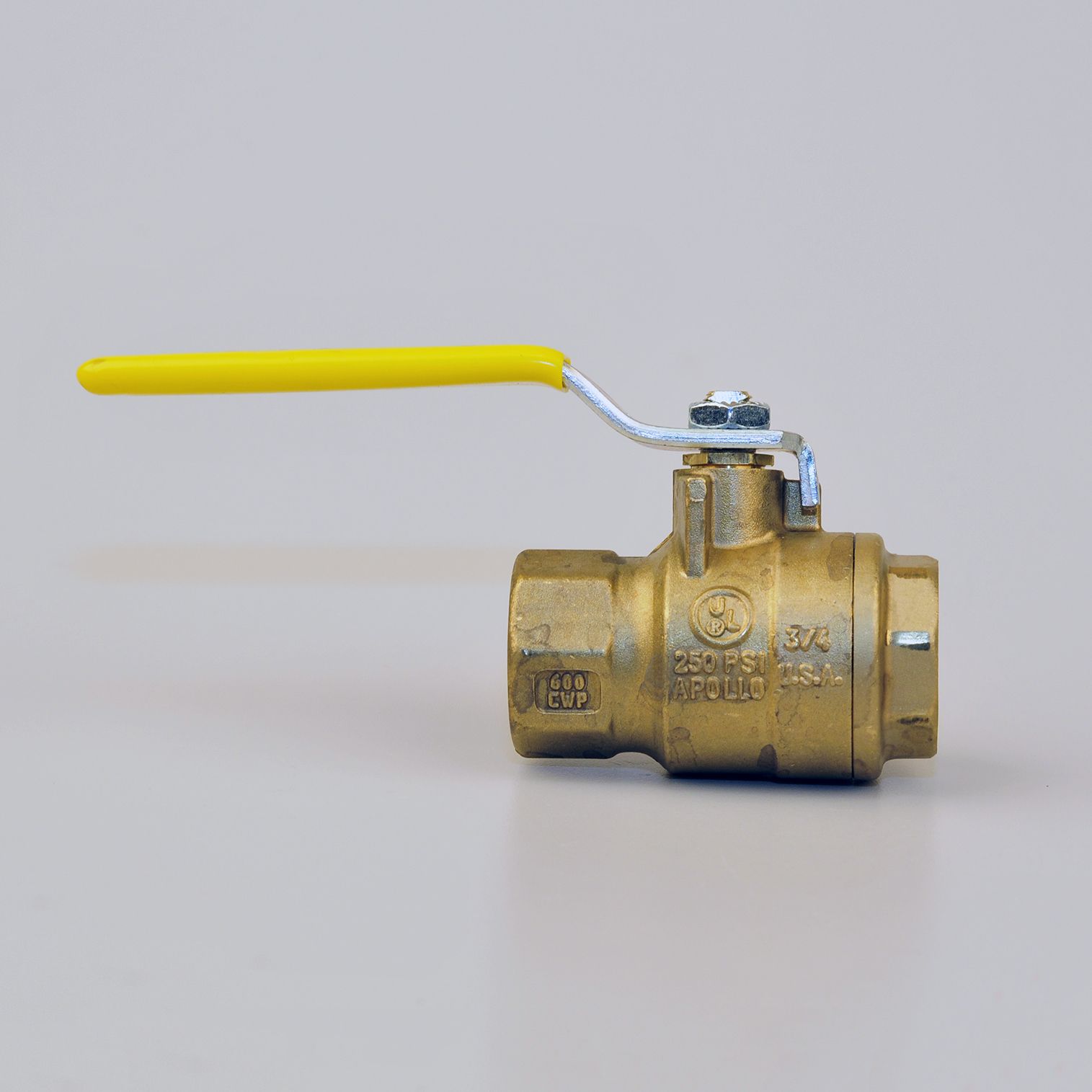

Apollo Valves 77F10401 3/4 FNPT Full Port Brass Threaded Ball Valve

Product Description

The Apollo 77F10401 is a brass ball valve designed for plumbing applications. This two-piece valve features a three-quarter inch female NPT connection and operates with a lever handle. It is crafted from lead-free materials, making it suitable for various applications, including HVAC, fuel gas, fire protection, and irrigation. This model supports a pressure rating of 150 PSI SWP and 600 PSI CWP and is made of durable chrome-plated forged brass for enhanced longevity and performance.

• Type: 2-Piece
• Nominal Size: 3/4 Inch
• Pressure Rating: 150 PSI SWP, 600 PSI CWP

Product Highlights

Highly effective in controlling flow with a full port design, robust construction ensures reliability across different applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 77F10401

Technical Specifications

• Valve Type: 2-Piece
• End Connection: Female Threaded x Female Threaded
• Ball Material: ASTM B16/B283 C36000/C37700 Chrome Plated Forged Brass
• Body Material: ASTM B283 C37700 Forged Brass
• Stem Material: ASTM B16 C36000 Brass
• Seat Material: RPTFE
• Seal Material: RPTFE (Stem Packing)
• Handle Material: Plated Steel (Lever), Insulated Polyvinyl (Grip)
• Temperature Rating: 0 to 400 Degrees F
• Inclusions/Features: Adjustable Stem Packing, Blowout Proof Stem Design
• Applicable Standards: UL, CSA (Canada and US), IAPMO IGC-157, FM 1140, ISO 9001, MSS-SP-110
• Lead-Free: Yes
