Apollo Valves 77CLF24404A Ball Valve 3/4 Inch Solder

APOLLO VALVES
Brand: APOLLO VALVES
SKU: 77CLF24404A
Availability: In Stock

Ships same day if ordered by 12 pm
$158.54
$158.54
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

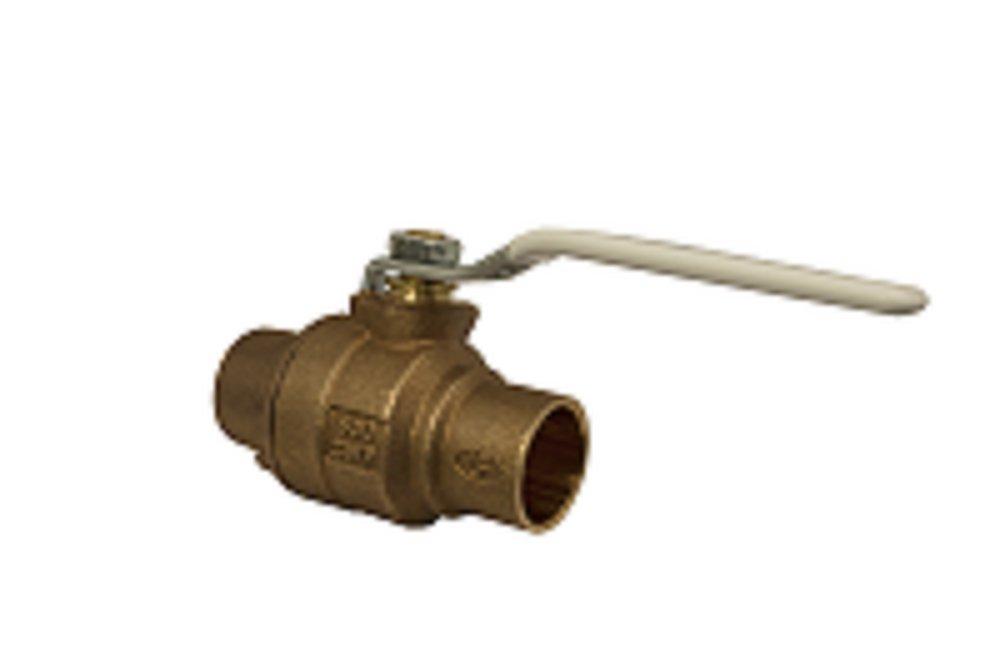

The APOLLO VALVES 77CLF24404A is a 3/4 inch ball valve with a solder connection. It features a dezincification resistant bronze body, RPTFE seats and stem packing, and a solid ball design for full-port flow performance. It is cast and machined in Apollo’s South Carolina manufacturing plants using EZ-Solder lead free materials.

  • Easily Identifiable White Handle and Blue “Lead Free” Hang Tag
  • EZ-Solder™ Lead Free Bronze
  • Blowout-Proof Stem Design

Product Highlights

This ball valve is ideal for potable water applications. It is manufactured and 100% factory tested in the USA.

Product Information

Standard Information

  • Brand: APOLLO VALVES
  • Manufacturer Part Number: 77CLF24404A
  • Country of Origin: United States
Technical Specifications
Brand
APOLLO VALVES
MPN
77CLF24404A

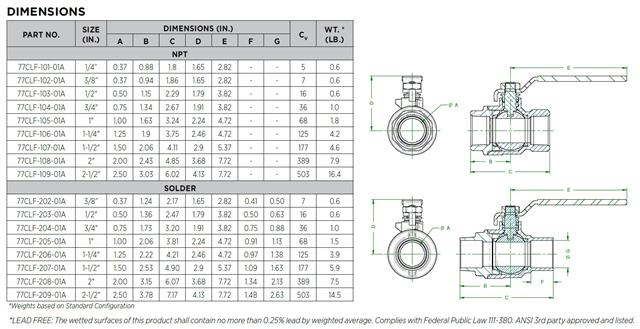

d1
22.2
DN1
3/4"
l1
44
z1
25
d2
22.2
DN2
3/4"
l2
37
z2
18
M1
14
M2
98
E
18
Y
70
V
32
U
18
D1
27
etim-class
EC011343 Ball valve
Housing material
Bronze
Surface protection housing
None
Material ball
Stainless steel
Material spindle
Stainless steel
Material primary spindle seal
Polytetrafluoroethylene (PTFE)
Nominal diameter connection 1
DN 20
Outer Pipe Diameter Connection 1
22.23 mm
Outer pipe diameter connection 1 (imperial)
0.88"
Connection 1
Soldered sleeve
Nominal diameter connection 2
DN 20
Outer Pipe Diameter Connection 2
22.23 mm
Outer pipe diameter connection 2 (imperial)
0.88"
Connection 2
Soldered sleeve
Sealing
Polytetrafluoroethylene (PTFE)
With filter
No
With thermometer
No
FM quality mark
No
UL quality mark
No
ULC quality mark
No
LPCB quality mark
No
Medically clean
No
Grease-free
No
Housing construction
2-part
Full bore
Yes
Length of connection 1
43.69mm
Length of connection 1 (imperial)
1.72"
Working length connection 1
24.64mm
Working length connection 1 (imperial)
0.97"
Length of connection 2
37.34mm
Length of connection 2 (imperial)
1.47"
Working length connection 2
18.29mm
Working length connection 2 (imperial)
0.72"
Handle height
69.6mm
Handle height (imperial)
2.74"
Handgrip length
13.97mm
Handgrip length (imperial)
0.55"
VdS quality mark
No
DVGW quality mark for gas
No
DVGW quality mark for water
No
KIWA certified
No
ANSI
ANSI 372, ANSI 61, ANSI Z1157
ASTM
ASTM B-16, ASTM B-584 C89836
Clean Bagged
No
Collection
77CLF-A Series
End Connection 1
Sweat
End Connection 2
Sweat
End Connections
Sweat
FM Approved
No
Fire Suppression System Rated
No
Handle Material
Zinc Plated Steel
IAPMO Listed
Yes
ISO
ISO 9001:2008
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
Length
3-1/5
MA Approved
No
MSS
MSS SP-110
Material
Bronze, Stainless Steel
Material Type
316
Maximum Temperature
450
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Pressure - High
150
Pressure Class
600#
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application
Potable Water
UL Listed
No
UPC
670750618727
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Size
3/4 in
Valve Stem
Extension
Valve Type
Ball Valve
cUPC Certified
No
Item
Ball Valve
Ball Material
Stainless steel
Body Material
Bronze
Bore Type
Full Bore
Dimensions
5.55" x 1.59" x 2.71"
Finish
None
Max. Pressure
600 psi
Seal Material
PTFE
Series
77C Series
Shape
Straight
Size
3/4"
Spindle Material
Stainless Steel
Stem Size
2 1/4"
Surface Protection
None
MFR #
77CLF24404A
Zoro #
G622710896
UPC #
None
Country of Origin
United States
