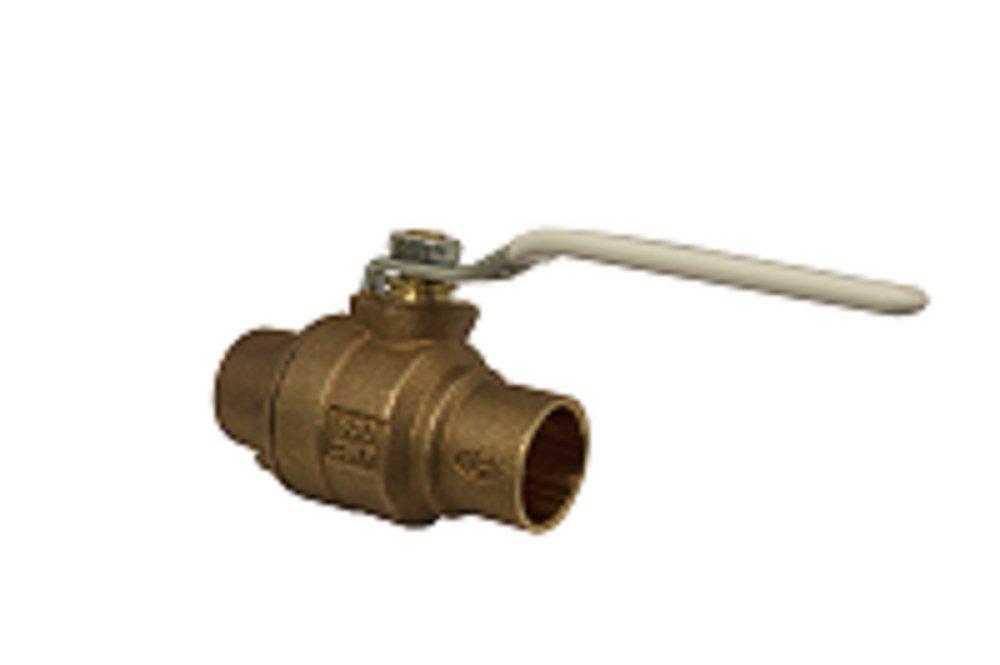

Apollo Valves 77CLF20804A Ball Valve 2 in Full Port 2-1/4 in Extension

Product Description

The APOLLO VALVES 77CLF20804A ball valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a solid ball design that delivers true full-port flow performance. It is cast and machined in Apollo’s South Carolina manufacturing plants using proven EZ-Solder lead free materials.

• Lead free brass & bronze materials
• Blow-out proof stem design
• Manufactured and 100% factory tested in USA

Product Highlights

This 2-piece ball valve has a 2-inch size, solder end style, and is suitable for water applications with a pressure rating of 600 psi CWP and a temperature rating of 450 deg F.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF20804A
• Country of Origin: United States

Technical Specifications

• ETIM class: EC011343 Ball valve
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 53.98 mm
• Outer pipe diameter connection 1 (imperial): 2.13"
• Connection 1: Soldered sleeve
• Nominal diameter connection 2: DN 50
• Outer pipe diameter connection 2: 53.98 mm
• Outer pipe diameter connection 2 (imperial): 2.13"
• Connection 2: Soldered sleeve
• Sealing: Polytetrafluoroethylene (PTFE)
• With filter: No
• With thermometer: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Full bore: Yes
• Length of connection 1: 80.01mm
• Length of connection 1 (imperial): 3.15"
• Working length connection 1: 45.97mm
• Working length connection 1 (imperial): 1.81"
• Length of connection 2: 73.91mm
• Length of connection 2 (imperial): 2.91"
• Working length connection 2: 39.88mm
• Working length connection 2 (imperial): 1.57"
• Handle height: 77.98mm
• Handle height (imperial): 3.07"
• Handgrip length: 23.88mm
• Handgrip length (imperial): 0.94"
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• product group: valves (PTFE)
• materials: bronze (C89836 (lead-free))
• finishing: none
• shape: straight
• connection type: solder, solder
• Bore: 50.8 mm (Yes)
• max operating pressure liquid: 600 psi
• brand: Apollo Valves
• series: 77C Series Ball Valves
• product type: 77CLF20X04A
• unsps: 40141607
• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 3.83 in
• Media: Water
• Nominal Size: 2 In
• Port Type: Full
• Pressure Rating: 600 PSI
• Softgoods Material: RPTFE
• Temperature Rating: 450 deg F
• Top to Inlet Center: 3.68 in
• Trim Material: Brass Stem and RPTFE Seat
• Type: Ball, Floating
• ANSI: ANSI 372, ANSI 61, ANSI Z1157
• ASTM: ASTM B-16, ASTM B-584 C89836
• Clean Bagged: No
• Collection: 77CLF-A Series
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• ISO: ISO 9001:2008
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Brass, Bronze
• Material Type: DZR
• Maximum Temperature: 450
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 2 in
• Valve Stem: Extension
• Valve Type: Ball Valve
• Valve Stem Size: 2 1/4"
• Valve Seal Material: PTFE
• cUPC Certified: No
• Operator Type: Lever Operator
• Operator Included: Operator Included
• Seal Material: PTFE
