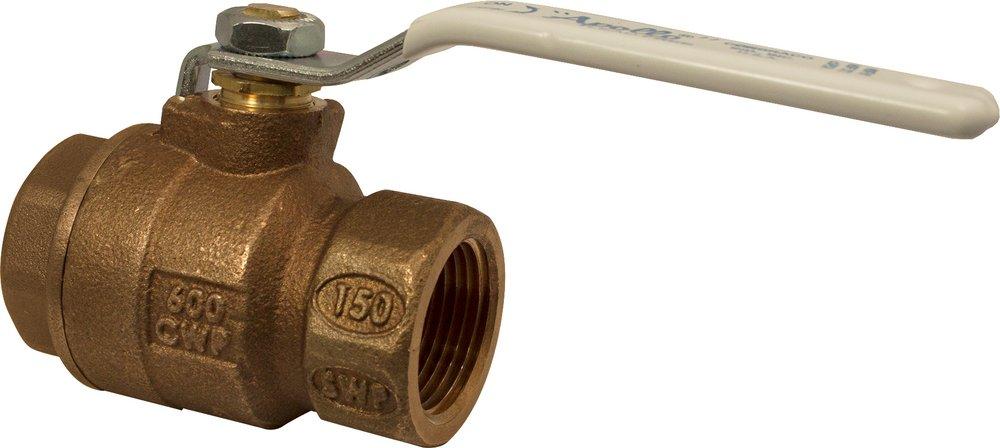

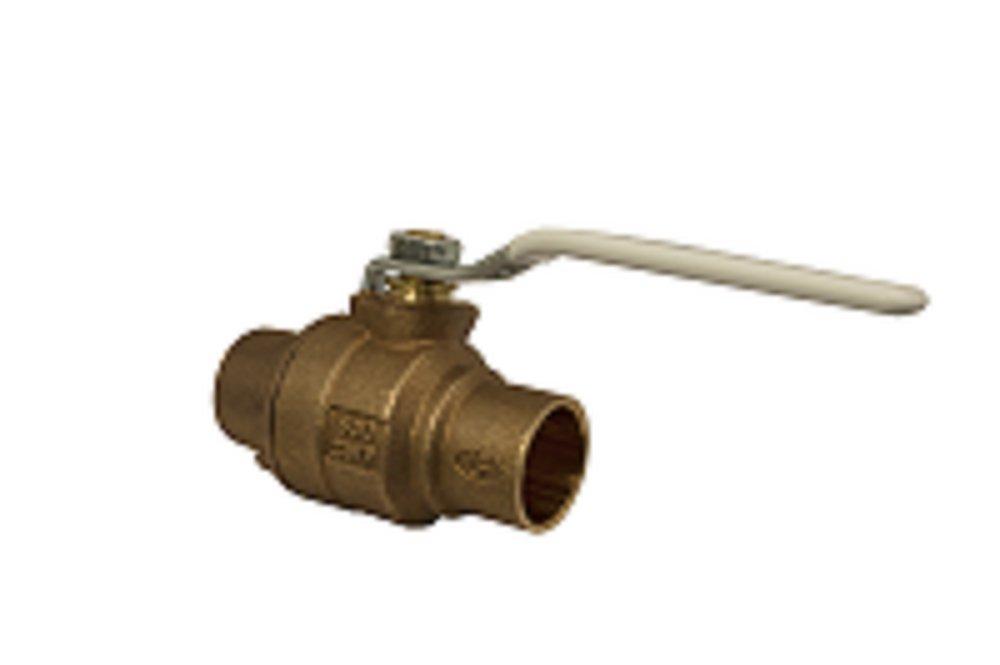

Apollo Valves 77CLF20604A Ball Valve 1-1/4 in. Solder 2-1/4 inches Stem Extension

Product Description

The APOLLO VALVES 77CLF20604A is a lead-free ball valve featuring a dezincification resistant bronze body and premium RPTFE seats and stem packing. Its solid ball design delivers full-port flow performance. It is cast and machined in Apollo’s South Carolina manufacturing plants using EZ-Solder lead-free materials.

• EZ-Solder Lead Free Bronze
• Lead Free Brass & Bronze Materials
• Blowout-Proof Stem Design

Product Highlights

This ball valve features a white handle, blue lead-free hang tag, and is 100% factory tested in the USA.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF20604A
• Country of Origin: United States

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 3.13 in
• Media: Water
• Nominal Size: 1-1/4 In
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77CLF-A
• Softgoods Material: RPTFE
• Temperature Rating: 450 deg F
• Top to Inlet Center: 2.46 in
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• ANSI: ANSI 372, ANSI 61, ANSI Z1157-2014e1
• ASTM: ASTM B-16
• CSA Certified: CSA B51
• Clean Bagged: No
• Collection: 77CLF-A Series
• End Connection 1: Sweat
• End Connection 2: NPT
• End Connections: Sweat x NPT
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• ISO: ISO 9001-2008
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 2-1/4
• MA Approved: No
• MSS: MSS SP-110
• Material: Cast Bronze
• Material Type: B584, C89836
• Maximum Temperature: 450
• Minimum Temperature: -20
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 150, 600
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• Temperature Range: -20 to 450 Deg F
• UL Listed: No
• UPC: 670750617188
• Valve Body Material: Bronze
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1-1/4 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• cUPC Certified: Yes
• code: 77CLF20604A
• size: 1-1/4"
• d1: 1.38
• DN1: None
• l1: 2.22
• z1: 1.25
• d2: 1.38
• DN2: None
• l2: 1.99
• z2: 1.02
• M1: 0.66
• M2: 4.76
• E: 0.83
• Y: 2.78
• V: 1.78
• U: 0.93
• D1: 1.60
• article: Apollo Bronze 2 Piece Full Port Ball Valve with 2-1/4" Stem Extension (2 x Solder)
• article number with gtin: 77CLF20X04A
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• materials: bronze (C89836 (lead-free))
• finishing: none
• shape: straight
• connection type: solder
• sealing: PTFE
• Bore: 63.5 mm (Yes)
• max operating pressure liquid: 600 psi
• product group: valves (ball valves)
• ETIM class: EC011343 Ball valve
• country of origin: United States
• brand: Apollo
• series: 77C Series Ball Valves
• product type: 77CLF20X04A
• unsps: 40141607
• etim-class: EC011343 Ball valve
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Connection 1: Soldered sleeve
• Connection 2: Soldered sleeve
• Sealing: Polytetrafluoroethylene (PTFE)
• With filter: No
• With thermometer: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Full bore: Yes
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Stem Size: 2 1/4"
• Outer Pipe Diameter Connection 1: 34.93 mm
• Outer Pipe Diameter Connection 2: 34.93 mm
