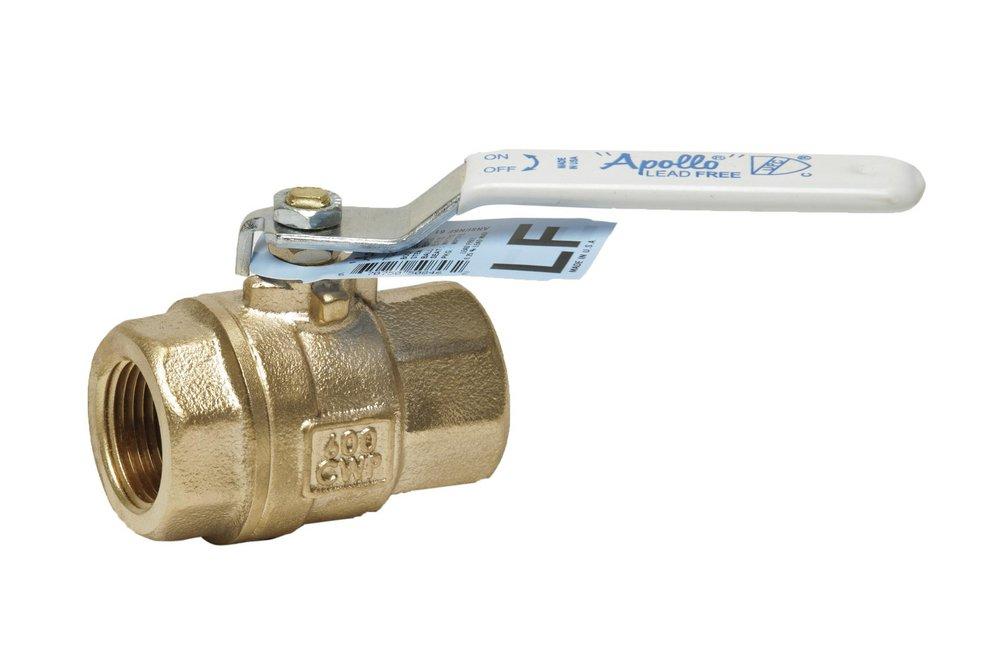

Apollo Valves 77CLF-206-01A Ball Valve 600 PSI CWP 1-1/4 Inch

Product Description

The Apollo Valves 77CLF-206-01A Ball Valve is designed for both potable and non-potable commercial applications. This full-port ball valve ensures maximum flow and minimal pressure drop, making it suitable for various pipeline systems.

• Dezincification resistant bronze body
• Premium RPTFE seats and stem packing
• Solid ball design

Product Highlights

This ball valve features a dezincification resistant bronze body for increased durability and corrosion resistance. It is equipped with RPTFE seats and seals, ensuring long-lasting performance and reliability in demanding environments.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 77CLF-206-01A

Technical Specifications

• Type: 2-Piece, Full-Port
• Nominal Size: 1-1/4 Inch x 1-1/4 Inch
• Connection Type: Female Soldered x Female Soldered
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• Ball Material: C27451 Chrome Plated Brass
• Seat Material: RPTFE
• Seal Material: RPTFE
• Handle Material: Zinc Plated Steel with White Vinyl Grip
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• Temperature Rating: -20 to 450 Degrees F
• Applicable Standards: MSS-SP-110, IAPMO/ANSI Z1157, DBS, CRN OC10908.5C, CUPC, NSF/ANSI 61/372
• Inclusions/Features: Blowout-proof stem design, Adjustable stem packing, Easily identifiable white handle and blue hang tag
• Application: Potable and Non-Potable, Commercial
• Body Seal Material: RPTFE
• Stem Material: Lead-Free Brass
