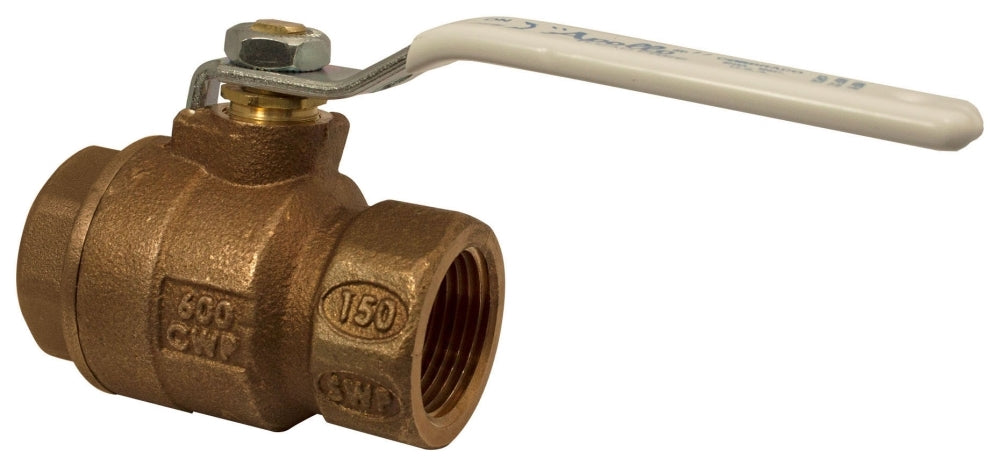

Apollo Valves 77CLF-205-01A Ball Valve 600 PSI 1 inch Lead-Free Bronze

Product Description

The Apollo Valves 77CLF-205-01A Ball Valve is a reliable, lead-free valve designed for commercial applications. This ball valve features a 2-piece domestic straight design with a nominal size of 1 inch x 1 inch. It is constructed from ASTM B584 C89836 dezincification-resistant bronze, providing durability and longevity in various environments.

• Nominal size: 1 inch x 1 inch
• Pressure rating: 600 PSI CWP Non-Shock, 150 PSI SWP
• Temperature rating: 450 degrees Fahrenheit

Product Highlights

This ball valve is made from lead-free materials and features a full port for better flow. It is equipped with a lever handle for easy actuation. The valve is designed to handle both potable and non-potable water, making it versatile for various plumbing needs.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 77CLF-205-01A

Technical Specifications

• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• Stem Material: C27451 Brass
• Seat Material: RPTFE
• Seal Material: RPTFE
• Handle Material: Zinc Plated Steel Lever with White Vinyl Grip
• Port Type: Full
• Temperature Rating: 450 Deg F
• Pressure Rating: 600 PSI CWP Non-Shock, 150 PSI SWP
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 3.81 inch
• Applications: Potable and Non-Potable, Commercial
• Applicable Standards: MSS-SP-110, IAPMO/ANSI Z1157, DBS, CRN OC10908.5C, CUPC, NSF/ANSI 61/372
