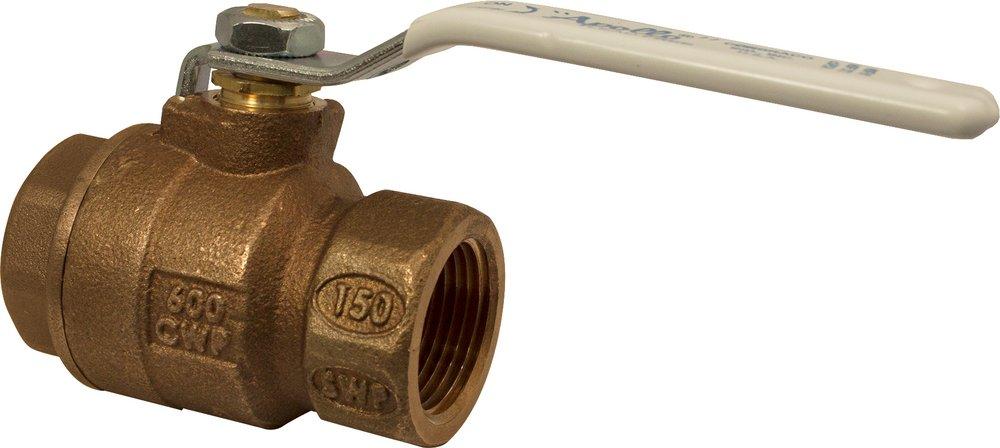

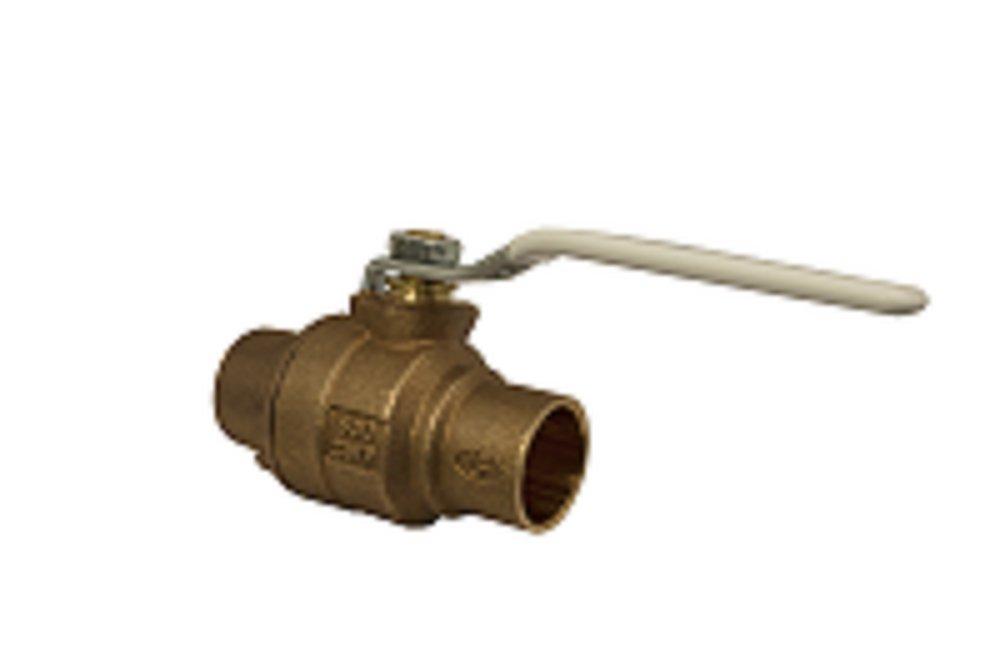

Apollo Valves 77CLF20404A Bronze Full Port Solder 600# Ball Valve 3/4 in

Product Description

The APOLLO VALVES 77CLF20404A is a bronze full port solder ball valve. This valve features a dezincification resistant bronze body and RPTFE seats and stem packing. The solid ball design delivers full-port flow performance. It is cast and machined in Apollo’s South Carolina manufacturing plants using EZ-Solder lead free materials.

• EZ-Solder Lead Free Bronze
• Lead Free Brass & Bronze Materials
• Blowout-Proof Stem Design

Product Highlights

This bronze ball valve is manufactured and 100% factory tested in the USA. It has an easily identifiable white handle and blue lead free hang tag.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF20404A
• Country of Origin: United States

Technical Specifications

• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 20
• Outer pipe diameter connection 1: 22.23mm
• Outer pipe diameter connection 1 (imperial): 0.88"
• Connection 1: Soldered sleeve
• Nominal diameter connection 2: DN 20
• Outer pipe diameter connection 2: 22.23mm
• Outer pipe diameter connection 2 (imperial): 0.88"
• Connection 2: Soldered sleeve
• Sealing: Polytetrafluoroethylene (PTFE)
• With filter: No
• With thermometer: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Full bore: Yes
• Length of connection 1: 43.69mm
• Length of connection 1 (imperial): 1.72"
• Working length connection 1: 24.64mm
• Working length connection 1 (imperial): 0.97"
• Length of connection 2: 37.34mm
• Length of connection 2 (imperial): 1.47"
• Working length connection 2: 18.29mm
• Working length connection 2 (imperial): 0.72"
• Handle height: 69.6mm
• Handle height (imperial): 2.74"
• Handgrip length: 13.97mm
• Handgrip length (imperial): 0.55"
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 2 in
• Media: Water
• Nominal Size: 3/4 In
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77CLF-A
• Softgoods Material: RPTFE
• Temperature Rating: 450 deg F
• Top to Inlet Center: 1.91 in
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM B-16
• CSA Certified: CSA B51
• Clean Bagged: No
• Collection: 77CLF-A Series
• End Connection 1: Sweat
• End Connection 2: NPT
• End Connections: Sweat x NPT
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Zinc Plated Steel
• Height: 1-91/100
• IAPMO Listed: Yes
• ISO: ISO 9001:2008
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 3-3/100
• MA Approved: No
• MSS: MSS SP-110
• Material: Cast Bronze
• Material Type: B584, C89836
• Maximum Temperature: 450
• Minimum Temperature: -20
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 150, 600
• Pressure Class: 600#
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Recommended Valve Application: Potable Water
• Temperature Range: -20 to 450 Deg F
• UL Listed: No
• UPC: 670750616686
• Valve Body Material: Bronze
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 3/4 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Weight: 0.87
• cUPC Certified: Yes
• MFR #: 77CLF20404A
• Zoro #: G222712764
• UPC #: None
• Country of Origin: United States
• Restrictions: This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
• Bore Type: Full Bore
• D1: 0.88
• D2: 0.88
• Dimensions: 5.55" x 1.59" x 2.71"
• Finish: None
• Shape: Straight
• Size: 3/4"
• Spindle Material: Brass
• Stem Size: 2 1/4"
• Surface Protection: None
• d1: 22.2
• DN1: 3/4"
• l1: 44
• z1: 25
• d2: 22.2
• DN2: 3/4"
• l2: 37
• z2: 18
• M1: 14
• M2: 98
• E: 18
• Y: 70
• V: 32
• U: 18
