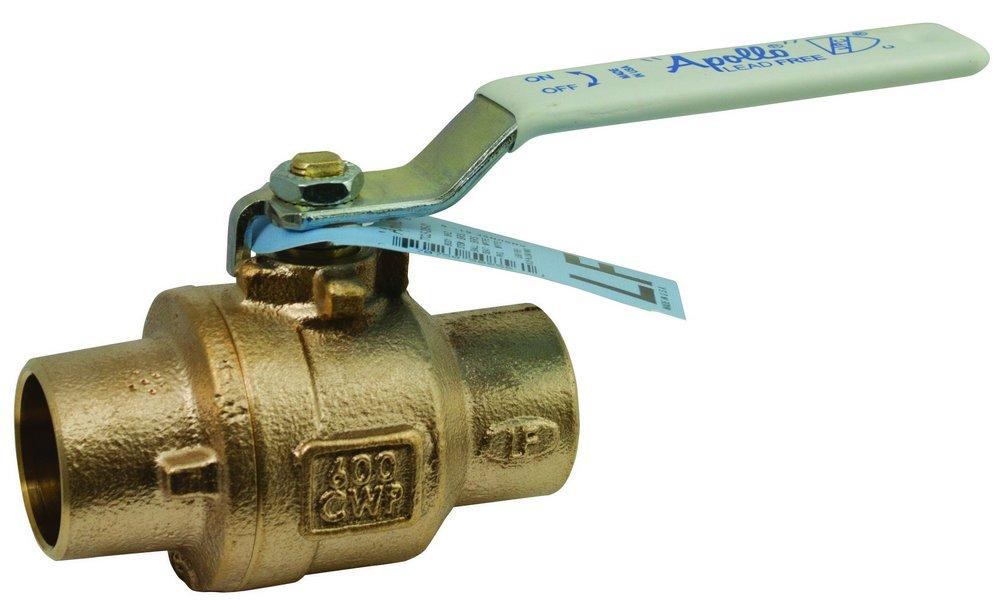

Conbraco 77CLF-204-01A 3/4 x 3/4 C x C 600 PSI CWP Non-Shock Ball Valve

Product Description

The Conbraco 77CLF-204-01A is a 3/4 x 3/4 inch ball valve constructed with a lead-free design. It features a two-piece body style, ensuring durability and reliability. This valve operates with a lever handle, making it easy to control flow. Rated for a maximum pressure of 600 PSI CWP and 150 PSI SWP, it is suitable for both potable and non-potable applications.

• Lead-free materials conforming to health standards
• Full port design for maximum flow
• Adjustable stem packing enhances performance

Product Highlights

The valve is designed for commercial use, meeting industry standards for safety and efficiency. The machined bronze body is resistant to dezincification, and the RPTFE seats and seals provide excellent leak protection.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750351679

Technical Specifications

• Nominal Size: 3/4 inch x 3/4 inch
• Body Material: ASTM B584 C89836 dezincification resistant bronze
• Ball Material: C27451 chrome plated brass
• Stem Material: C27451 brass
• Seat Material: RPTFE
• Seal Material: RPTFE
• Handle Material: Zinc plated steel with vinyl grip
• Pressure Rating: 600 PSI CWP Non-Shock, 150 PSI SWP
• Temperature Rating: 450 degrees Fahrenheit
• Port Type: Full
• End Connection: Female soldered x female soldered
• End to End Distance: 3.2 inches
• Vacuum Rating: 29 inches Hg
• Applicable Standards: MSS-SP-110, IAPMO/ANSI Z1157, DBS, CRN OC10908.5C, CUPC, NSF/ANSI 61/372
