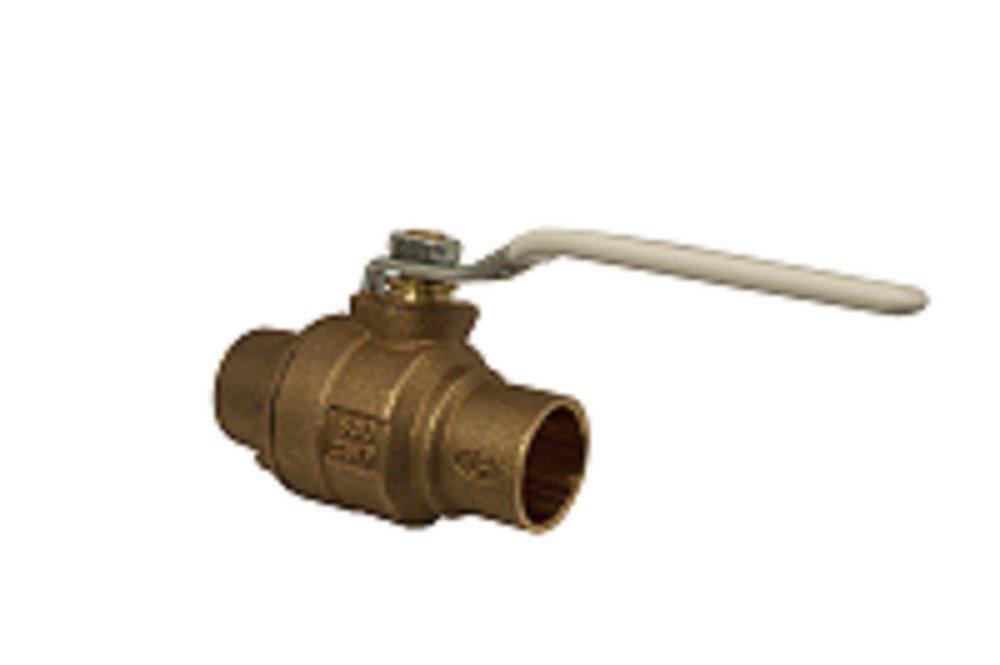

Apollo Valves 77CLF20304A 77CLF-A Series Bronze Full Port Solder 600# Ball Valve

Product Description

The APOLLO VALVES 77CLF20304A is a 77CLF-A Series Lead Free Ball Valve that features a dezincification resistant bronze body and premium RPTFE seats and stem packing. Its solid ball design delivers true full-port flow performance. It is cast and machined in Apollo’s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.

• EZ-Solder Lead Free Bronze
• Lead Free Brass & Bronze Materials
• Easily Identifiable White Handle and Blue Lead Free Hang Tag

Product Highlights

This Apollo ball valve is manufactured and 100% factory tested in the USA. It features RPTFE seats and seals and a blowout-proof stem design.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF20304A
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 1.79 in
• Media: Water
• Nominal Size: 1/2 In
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77CLF-A
• Softgoods Material: RPTFE
• Temperature Rating: 450 deg F
• Top to Inlet Center: 1.79 in
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• ANSI: ANSI 61-8 Annex F/G, ANSI 372
• ASTM: ASTM B-16
• CSA Certified: CSA B51
• Collection: 77CLF-A Series
• End Connection 1: Sweat
• End Connection 2: NPT
• End Connections: Sweat x NPT
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• ISO: ISO 9001-2008
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MA Approved: No
• MSS: MSS SP-110
• Material: Cast Bronze
• Material Type: B584, C89836
• Maximum Temperature: 450
• Minimum Temperature: -20
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 150, 600
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• Temperature Range: -20 to 450 Deg F
• UL Listed: No
• Valve Body Material: Bronze
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• cUPC Certified: Yes
• Bore Type: Full Bore
• Finish: None
• Grease-free: No
• Housing Construction: 2-Part
• Lead Free: Yes
• Max. Operating Pressure: 600 psi
• Medically Clean: No
• Outer Pipe Dia. Connection 1: 0.63"
• Outer Pipe Dia. Connection 2: 0.63"
• Seal Material: PTFE
• Shape: Straight
• Size: 1/2"
• Spindle Material: Brass
• Surface Protection: None
• With Filter: No
• With Thermometer: No
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Connection 1: Soldered sleeve
• Connection 2: Soldered sleeve
• Sealing: PTFE
• Full bore: Yes
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• max operating pressure liquid: 600 psi
• materials: bronze (C89836 (lead-free))
• finishing: none
• connection type: solder
• product group: valves (ball valves)
• product type: 77CLF20X04A
• unsps: 40141607
• Country of Origin: United States
• Restrictions: This product has been certified by a third party to be compliant with the Safe Drinking Water Act requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
