Apollo Valves 77CLF20201A Ball Valve 3/8 in. REPLACEMENT 77CLF20201A

Product Description

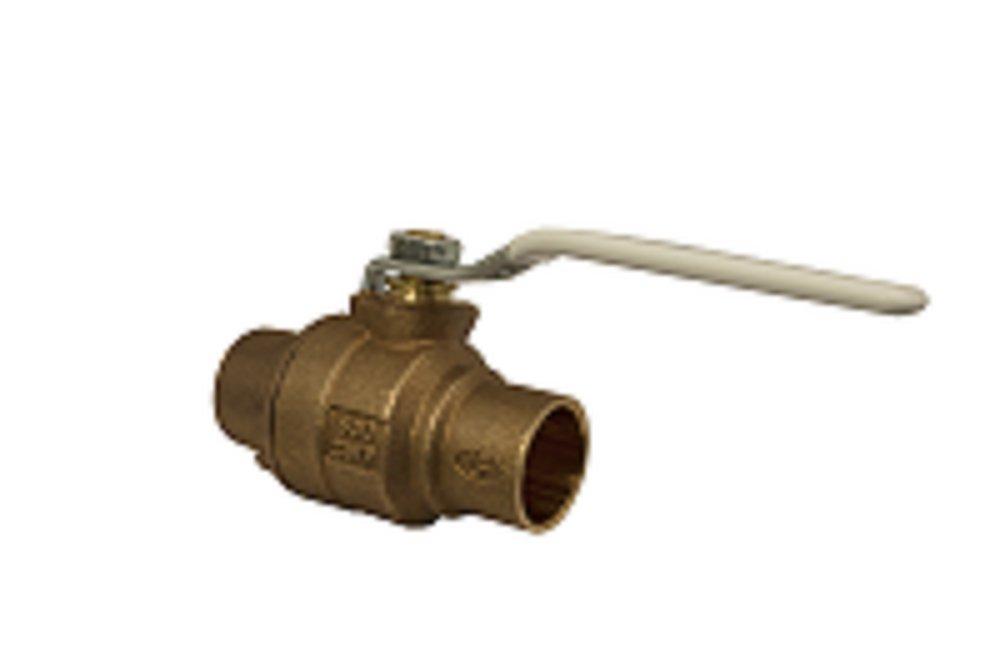

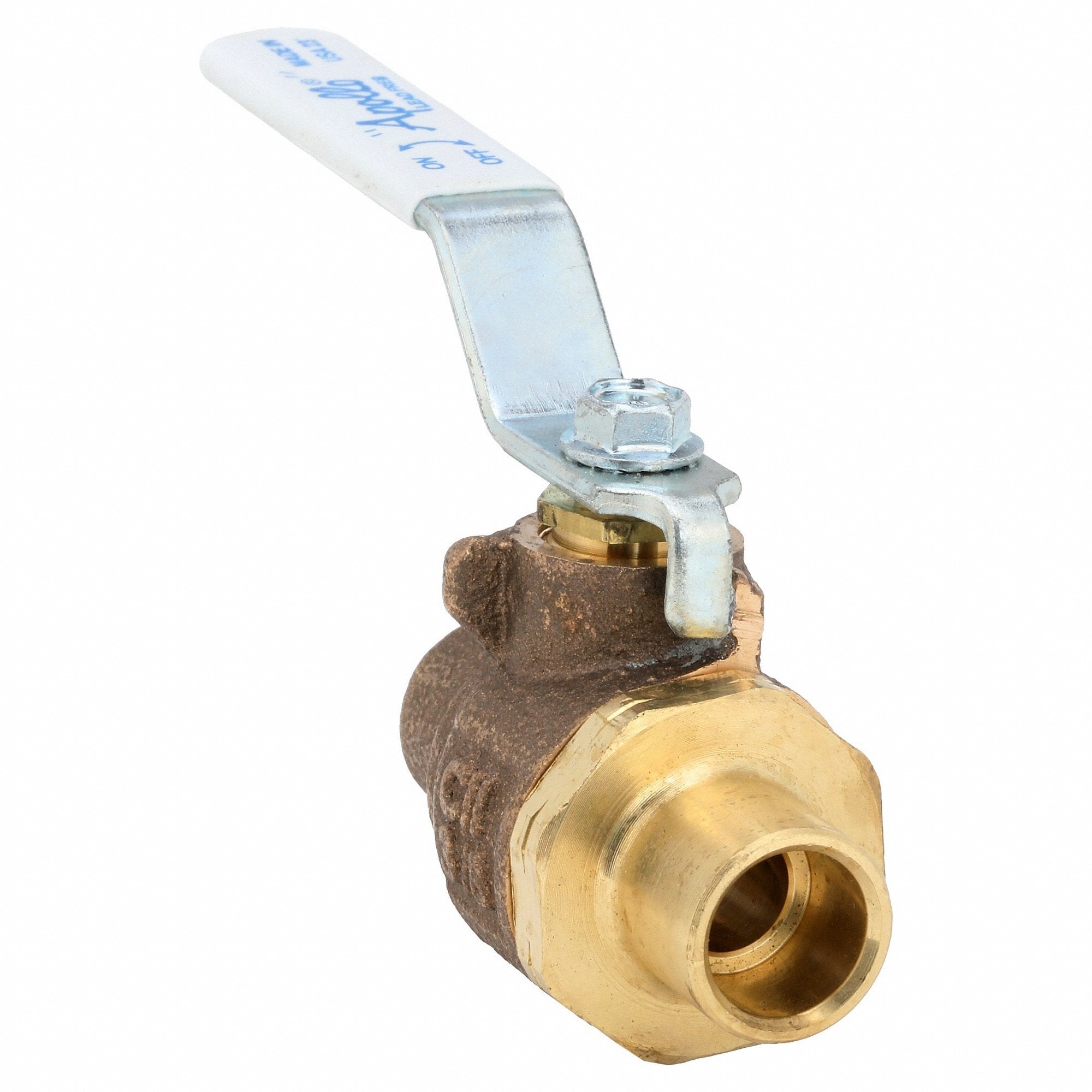

The APOLLO VALVES 77CLF20201A is a ball valve featuring an easily identifiable white handle and blue lead-free hang tag. Constructed with EZ-Solder lead-free bronze, this valve includes lead-free brass and bronze materials. It features a blowout-proof stem design and RPTFE seats and seals. It is manufactured and 100% factory tested in the USA.

• Easily Identifiable White Handle and Blue ",Lead Free," Hang Tag
• EZ-Solder Lead Free Bronze**
• Lead Free Brass & Bronze Materials

Product Highlights

The APOLLO VALVES 77CLF20201A is ideal for high-temperature applications and potable water systems. Its full port design ensures optimal flow performance.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF20201A
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI 372, ANSI 61, ANSI Z1157 2014
• ASTM: ASTM B-16, ASTM B-584, ASTM C-27451, ASTM C-89836
• CSA Certified: CSA B51
• Clean Bagged: No
• Collection: 77CLF-A Series
• End Connection 1: Sweat
• End Connection 2: NPT
• End Connections: Sweat x NPT
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• ISO: ISO 9001-2008
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material: Cast Bronze
• Material Type: B584, C89836
• Maximum Temperature: 450
• Minimum Temperature: -20
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Domestic
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• Temperature Range: -20 to 450 Deg F
• UL Listed: No
• Valve Body Material: Bronze
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 3/8 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• cUPC Certified: Yes
• Actuator Type: Standard Lever
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 2.17 in
• Nominal Size: 3/8 in
• Orifice Size: 3/8 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77CLF-A
• Softgoods Material: RPTFE
• Temperature Rating: 450 deg F
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
