Apollo Valves 77CLF14604A Bronze Ball Valve 1-1/4 in Fnpt

Product Description

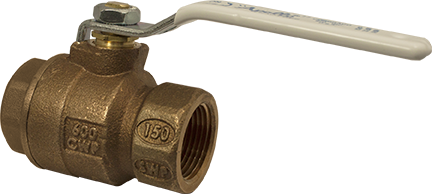

The APOLLO VALVES 77CLF14604A is a two-piece, full port ball valve built from dezincification resistant lead free bronze, designed for potable water and general plumbing applications where lead free compliance is required. The valve features a solid stainless steel ball and stem, RPTFE seats and stem packing, and a blowout-proof stem design. The 2-1/4 inch stem extension suits installations where access clearance requires additional reach. Threaded female NPT connections on both ends allow straightforward installation into standard pipe runs. Licensed plumbers and mechanical contractors working on domestic water systems are the primary installers of this valve.

This valve is suited for residential and light commercial plumbing systems where lead free materials are mandated by code, including drinking water supply lines and potable water distribution. The 1-1/4 inch FNPT end connections fit standard Schedule 40 copper or threaded pipe systems. The white handle provides quick visual identification in the field, and the included blue lead free hang tag supports documentation and inspection requirements on job sites where lead free compliance must be verified.

Key Features

• Dezincification resistant lead free bronze body meets lead free material requirements for potable water service
• Solid stainless steel ball and stem for corrosion resistance and long service life
• RPTFE seats and stem packing provide reliable sealing and low operating torque
• Blowout-proof stem design adds a safety retention feature under line pressure
• 2-1/4 inch stem extension accommodates installations requiring clearance from insulation or wall assemblies
• White handle and blue lead free hang tag allow fast field identification and compliance documentation

Compatibility

Designed as an OEM-style lead free replacement or new installation valve for 1-1/4 inch female NPT threaded pipe systems in potable water and general plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and relieve system pressure before removing or installing any valve. Verify that the pipe threads are clean and apply appropriate thread sealant compatible with potable water service. Do not overtighten threaded connections, as this can stress the valve body or fittings.

Technical Specifications

• Body Material: Dezincification resistant lead free bronze
• Ball and Stem Material: Stainless steel
• Seat and Packing Material: RPTFE
• Port Type: Full port
• Valve Configuration: 2-piece
• End Connections: 1-1/4 inches FNPT x FNPT
• Stem Extension: 2-1/4 inches
• Lead Free Compliant: Yes

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF14604A
