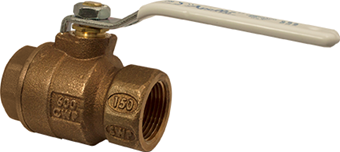

Apollo Valves 77CLF10394A bronze 2 pcs full port ball valve with 2-1/4 inch stem extension and balancing stop 1/2 inch size 2 x FNPT

Product Description

The APOLLO VALVES 77CLF10394A is a lead-free bronze full port ball valve designed for efficient flow control. This 1/2 inch valve features a 2-piece housing construction and a 2-1/4 inch stem extension, making it suitable for various plumbing applications. It includes a balancing stop and utilizes FNPT connections, ensuring secure installation and reliable operation up to 600 psi maximum pressure.

• Bronze construction with a full port design for optimal flow.
• Features a 2-1/4 inch stem extension and integrated balancing stop.
• 1/2 inch size with 2 x FNPT connections for secure installation.

Product Highlights

Lead-free bronze ball valve with full port design, 2-1/4 inch stem extension, and 600 psi pressure rating.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF10394A
• Country of Origin: US

Technical Specifications

• Item: Ball Valve
• Ball Material: Brass
• Body Material: Bronze
• Bore Type: Full Bore
• Connection Type: FNPT
• D1: 0.84
• D2: 0.84
• Finish: None
• Grease-free: No
• Housing Construction: 2-Part
• Max. Pressure: 600 psi
• Medically Clean: No
• Outside Pipe Dia. Connection 1: 21.34 mm
• Outside Pipe Dia. Connection 2: 21.34 mm
• Seal Material: PTFE
• Series: 77C Series
• Shape: Straight
• Size: 1/2"
• Spindle Material: Brass
• Surface Protection: None
• Type: Balancing Stop
• With Filter: No
• With Thermometer: No
