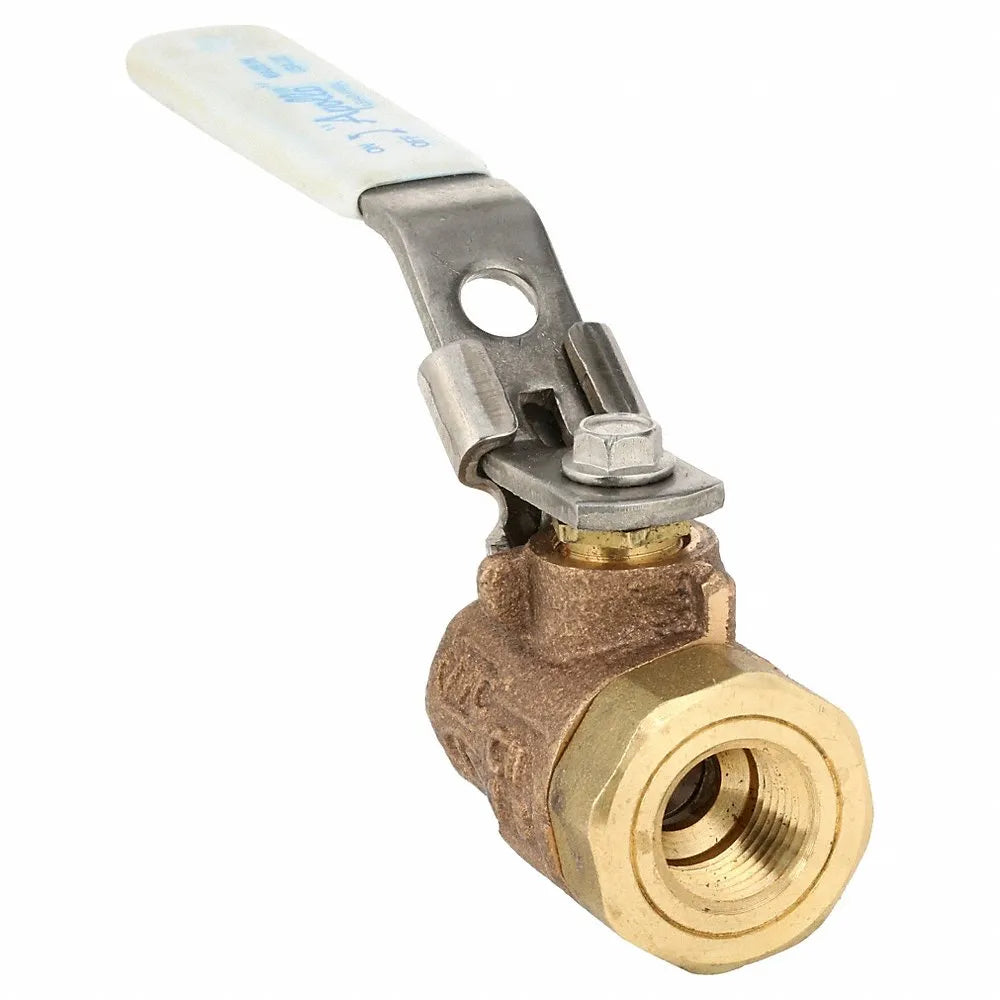

Apollo Valves 77CLF10227A 3/8 FIP Bronze 150SWP/600PSI 2PC Full-Port Econ Ball Valve with SS Latch Lock Lever & Nut Lead Free

Product Description

The APOLLO VALVES 77CLF10227A is a bronze ball valve with a dezincification resistant bronze body and premium RPTFE seats. Featuring a solid ball design for full-port flow performance. Suitable for use with water, oil, gas, and steam. Cast and machined in Apollo’s South Carolina manufacturing plants using proven EZ-Solder lead free materials.

• Easily identifiable white handle grip and blue Lead free hang tag
• EZ-Solder™ Lead free bronze body
• Blow-out proof stem

Product Highlights

The Apollo 77CLF10227A ball valve is corrosion-resistant and suited for high-temperature applications with a rugged locking lever and easy packing adjustment.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF10227A
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 1.86 in
• Media: Water
• Nominal Size: 3/8 In
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77CLF-A
• Softgoods Material: RPTFE
• Temperature Rating: 450 deg F
• Top to Inlet Center: 1.65 in
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• Body Style: Inline
• General Connection Type: Female NPT
• Valve Structure: 2-Piece
• Pipe Size: 3/8 in
• Tube Size: 3/8 in
• Connection Type: FNPT x FNPT
• Max. Pressure: 600 psi CWP
• Max. Steam Pressure: 150 psi WSP
• Temp. Range: -20 Degrees to 450 Degrees F
• Seat Material: RPTFE
• Stem Type: Blowout Resistant
• Handle Type: Lever
• Handle Material: PVC, Zinc Plated Steel
• Stem Material: PTFE
• Body Seal Material: RPTFE
• Hose I.D.: 3/8 in
• Features: Dezincification Resistant
• Ball Valve Product Group: Manual
• Valve Basic Body Material: Bronze
• Standards: IAPMO RT/UPC-Z1157, NSF/ANSI 372, NSF/ANSI 61
• 3-a Compliance: Not Rated
• Ball Finish: Brass , Chrome Plated
• Ball Port Style: Full Port
• Bore Type: Full Bore
• Cleaned And Bagged: Not Cleaned And Bagged
• Coefficient Of Volume (cv): 0.01
• Color: Yellow
• Connection Gender - Side 1: Female
• Connection Gender - Side 2: Female
• Connection Size - Side 1: 3/8"
• Connection Size - Side 2: 3/8"
• Connection Type - Side 1: NPT
• Connection Type - Side 2: NPT
• D1: 0.68
• D2: 0.68
• Finish: None
• For Media: Water
• Grease-free: No
• Handle: Locking Lever
• Handle Color: Yellow
• Handle Length: 2.82"
• Housing Construction: 2-Part
• Max. Pressure (cwp): 600 psi
• Max. Pressure (steam): 150 psi
• Media Temp. Range: -20 F to +450 F
• Media Temperature Range: -20 F to +450 F
• Medically Clean: No
• Nominal Valve Size: 3/8"
• Nsf Certifications For Food And Drinking Water: NSF 61
• Outer Pipe Diameter Connection 1: 17.15 mm
• Outer Pipe Diameter Connection 2: 17.15 mm
• Overall Length: 1.86"
• Seal Material: PTFE
• Valve Body Color: Bronze
• Spindle Material: Brass
• Surface Protection: None
• Vacuum Service Rating: 29 in. hg
• Valve Body Style: Straight
• Valve Construction: Two-Piece
• Valve Series: 77C
• Valve Ways: 2-Way
• With Filter: No
• With Thermometer: No
• Standard: CRN, MATERIAL QUALITY C89836 (LEAD-FREE)
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Connection 1: Internal thread conical (NPT)
• Connection 2: Internal thread conical (NPT)
• Sealing: Polytetrafluoroethylene (PTFE)
• Full bore: Yes
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• max operating pressure liquid: 600 psi
• product group: valves (ball valves)
• ETIM class: EC011343 Ball valve
• materials: bronze (C89836 (lead-free))
• Bore: 63.5 mm (Yes)
• UNSPSC: 40141607
• Max. Pressure (combustible Gas): Not Rated
