Apollo Valves 77CLF-108-01A 2 x 2 FPT x FPT 600 PSI CWP Non-Shock 150 PSI SWP

Product Description

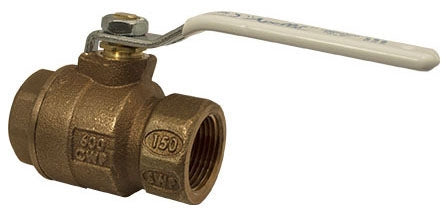

The Apollo Valves 77CLF-108-01A is a two-inch ball valve that features a female threaded connection. It is constructed with a dezincification resistant bronze body and includes a lever handle for easy actuation. This valve is designed for high pressure applications, rated at six hundred PSI CWP and one hundred fifty PSI SWP.

• Lead-free construction for safety.
• Full port design for maximum flow.
• Made in the USA with durable materials.

Product Highlights

This ball valve is suitable for both potable and non-potable water applications, including commercial use. The full port design allows for unrestricted flow, making it ideal for systems requiring high capacity. The valve includes features such as a blowout-proof stem and adjustable stem packing.

Product Information

Standard Information

• Manufacturer: Conbraco
• MPN: 77CLF-108-01A

Technical Specifications

• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• End Connection: Female Threaded x Female Threaded
• End to End Distance: Four point eighty-five inches
• Stem Material: C27451 Brass
• Seat Material: RPTFE
• Seal Material: RPTFE
• Handle Material: Zinc Plated Steel with Vinyl Grip
• Pressure Rating: Six hundred PSI CWP Non-Shock, one hundred fifty PSI SWP
• Temperature Rating: Four hundred fifty degrees Fahrenheit
• Applicable Standards: MSS-SP-110, IAPMO/ANSI Z1157, DBS, CRN OC10908.5C, CUPC, NSF/ANSI 61/372
