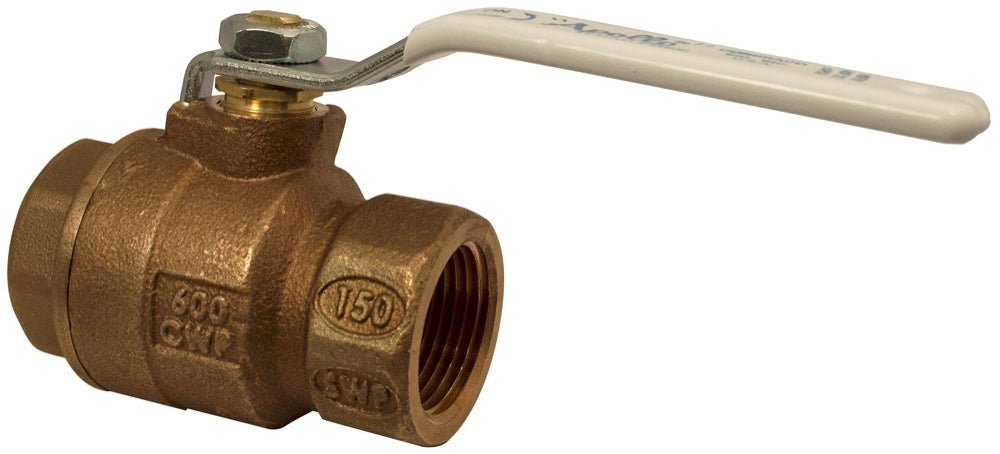

Apollo Valves 77CLF-107-01A 1-1/2 x 1-1/2 Ball Valve

Product Description

The Apollo Valves 77CLF-107-01A is a reliable ball valve designed for various plumbing applications. This valve features a lead-free construction, suitable for both potable and non-potable water. It complies with the highest standards, ensuring safety and durability.

• Lead-free construction
• Full port design for maximum flow
• Blowout-proof stem design

Product Highlights

This valve is built from a dezincification resistant bronze body and includes RPTFE seats and seals. It operates with a lever handle for easy actuation.

Product Information

Standard Information

• Manufacturer: Conbraco
• Type: 2-Piece, Domestic, Straight

Technical Specifications

• Nominal Size: 1-1/2 inches x 1-1/2 inches
• End Connection: Female Threaded x Female Threaded
• Pressure Rating: 600 PSI CWP Non-Shock, 150 PSI SWP
• Temperature Rating: 450 Deg F
• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• Stem Material: C27451 Brass
• Seal Material: RPTFE
• Seat Material: RPTFE
• Handle Material: Zinc Plated Steel Lever, White Vinyl Grip
• Inclusions/Features: ASTM B16 Brass Gland Nut, Zinc Plated Steel Nut, C27451 Brass Retainer, Adjustable Stem Packing
• Application: Potable and Non-Potable, Commercial
• Applicable Standard: MSS-SP-110, IAPMO/ANSI Z1157, DBS, CRN OC10908.5C, CUPC, NSF/ANSI 61/372
• Vacuum Rating: 29 Inch Hg
