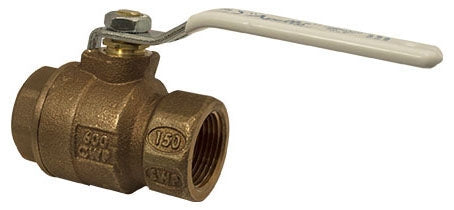

Conbraco 77CLF-106-27A 1-1/4 NPT x NPT Ball Valve 600 PSI CWP 150 PSI SWP

Product Description

The Conbraco 77CLF-106-27A is a ball valve designed for plumbing applications. This valve features a two-piece design and is constructed from lead-free materials. It includes a latch locking lever handle for secure operation.

• Type: 2-Piece Ball Valve
• Nominal Size: 1-1/4 Inch
• Pressure Rating: 600 PSI CWP, 150 PSI SWP

Product Highlights

Ideal for commercial use, this valve provides true full port flow performance and is compatible with various plumbing standards.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750612671

Technical Specifications

• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• Actuation Type: Latch Locking Lever Handle
• End Connection: Threaded x Threaded
• Port Type: Full
• Temperature Rating: 450 Deg F
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: C27451 Brass
• Inclusions/Features: Blowoutproof Stem, Blue Lead-Free Hang Tag, Nut
• Applicable Standard: CUPC, NSF/ANSI 61/372, IAPMO/ANSI Z1157, MSS SP-110, CRN OC10908.5C
