Apollo Valves 77CLF-102-01A 3/8 NPT x NPT 600 PSI CWP Lead-Free

Product Description

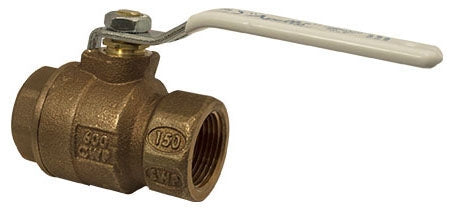

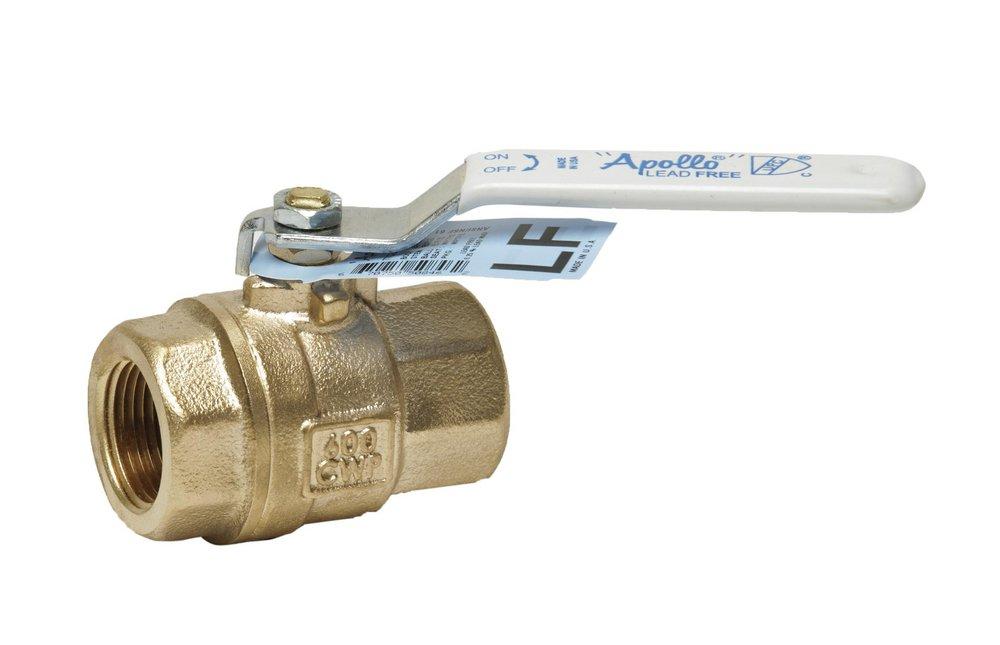

The Apollo Valves 77CLF-102-01A is a ball valve with a nominal size of three-eighths inch. This product features a threaded end connection, suitable for both NPT and NPT. It is designed for a maximum pressure of six hundred PSI CWP and one hundred fifty PSI SWP.

• Lead-free construction for safety
• Full-port design for maximum flow
• High temperature rating of up to four hundred fifty degrees Fahrenheit

Product Highlights

This valve includes a blowout-proof stem and is constructed from dezincification resistant bronze. Its lever handle allows for simple operation, and the product is manufactured in the USA.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 77CLF-102-01A

Technical Specifications

• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• Stem Material: C27451 Brass
• Seal Material: RPTFE
• Seat Material: RPTFE
• Port Type: Full
• Flow Rate: 7 Cv
• Temperature Rating: 450 Deg F
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• Type: 2-Piece, Domestic
• Applicable Standard: CUPC, NSF/ANSI 61/372, IAPMO/ANSI Z1157, MSS SP-110, CRN OC10908.5C
