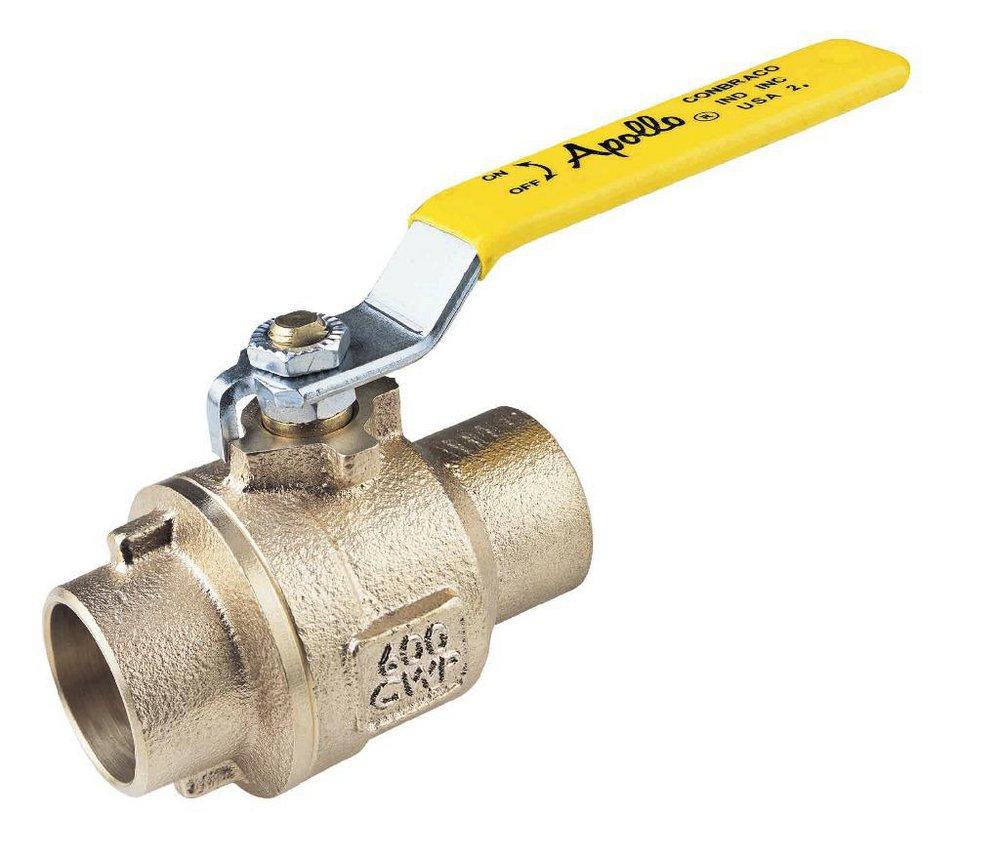

Apollo Valves 77C20401A 77C-A Series 3/4 in Bronze Full Port Solder 600 Ball Valve

Product Description

The Apollo Valves 77C20401A in the 77C-A Series is a full port solder ball valve measuring 3/4 inches. This bronze valve can handle a maximum pressure of 600 psi. It features a blowout-proof stem design and is made to provide reliable control in various plumbing applications.

• Blowout-proof stem design
• Full-port solid ball design
• Adjustable stem packing

Product Highlights

This Apollo Valves ball valve offers high durability and dependable flow control. Suitable for both residential and industrial uses.

Product Information

Standard Information

• Product Type: Ball Valve
• Brand: Apollo Valves
• MPN: 77C20401A
• Series: 77C-A

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Connection Size: 3/4 inches
• Connection Type: Solder
• Dimension: 3.2 inches length
• Flow Co-Efficient: 36 Cv
• Handle Material: Zinc Plated Steel with Vinyl Grip
• Max. Pressure: 600 psi CWP, 150 psi WSP
• Material Specifications: ASTM B16, ASTM B283, C37700, ASTM B584
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: Brass
• Temperature Rating: -20 degrees to 450 degrees F
• Valve Structure: 2-Piece
• Standards: MSS SP-11, CRN OC10908.5C, IAPMO/ANSI Z1157-2014e1 certified, cUPC listed
