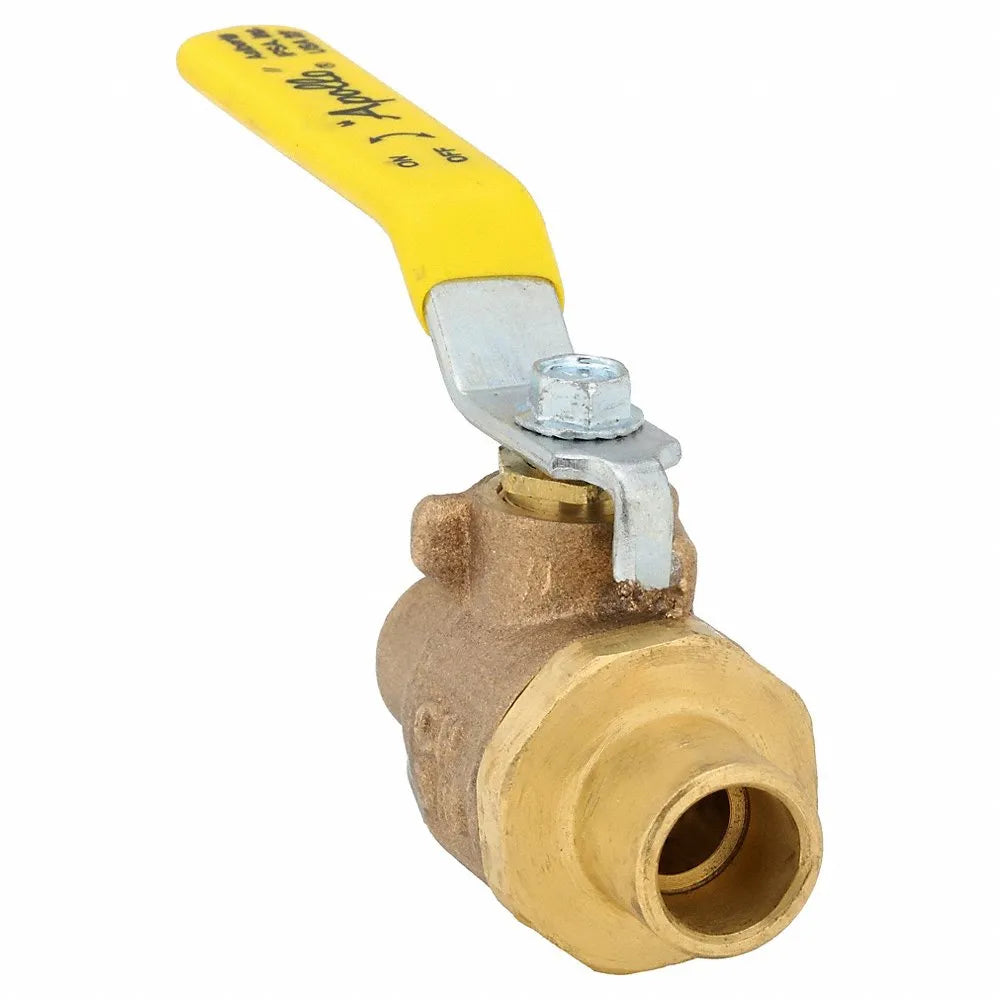

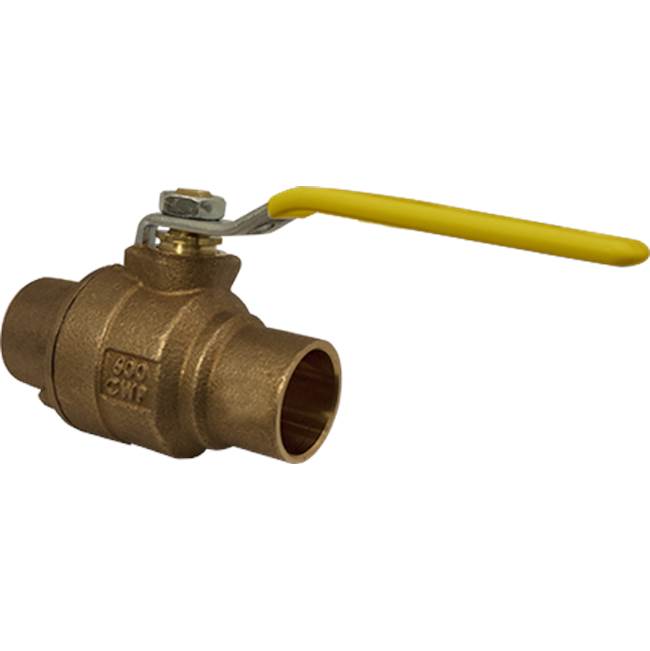

Apollo Valves 77C20201A Ball Valve 3/8 Inch Solder Full Port

Product Description

The Apollo Valves 77C20201A is a 3/8 inch solder full port ball valve. This bronze, contractor-grade valve features a dezincification resistant body and premium RPTFE seats and stem packing. Designed for commercial and industrial applications, it offers true full-port flow performance and is suitable for high-temperature environments. It operates with a lever handle and is corrosion-resistant.

• Full Port design with a bronze body and contractor-grade construction.
• Features a blowout resistant stem and RPTFE seal and seat materials.
• Supports a maximum operating pressure of 600 psi and media temperatures from -20°F to +450°F.

Product Highlights

This Apollo Valves 77C20201A ball valve offers full port flow, a dezincification resistant bronze body, and a blowout-resistant stem, ideal for commercial and industrial high-temperature applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77C20201A
• Country of Origin: US

Technical Specifications

• Product Type: Ball Valve
• Nominal Size: 3/8"
• Connection Type: Solder
• Body Material: Bronze
• Port Type: Full Port
• Series: 77C-A
• Max Operating Pressure (CWP): 600 psi
• Max Operating Pressure (Steam): 150 psi
• Media Temperature Range: -20°F to +450°F
• Handle Type: Standard Lever
• Ball Material: Chrome Plated Brass
• Stem Material: Brass
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Type: Blowout Resistant
• Valve Construction: 2-Part
• Valve Body Style: Straight
• Coefficient of Volume (Cv): 7
• Vacuum Service Rating: 29 in. Hg
• Overall Length: 2.17"
• Handle Length: 2.82"
• Handle Height: 1.65"
• Weight: 0.55 lbs
• Operation: Manual
• Number of Ways: 2-Way
• Bore Type: Full Bore
• Bore Diameter: 0.37 in
• Handle Color: Yellow
• Handle Material: PVC, Zinc Plated Steel
• Outside Pipe Diameter Connection 1: 0.5"
• Outside Pipe Diameter Connection 2: 0.5"
• Top to Inlet Center: 1.65 in
• Width: 2.300
• Depth: 2.300
• Height: 5.62"
