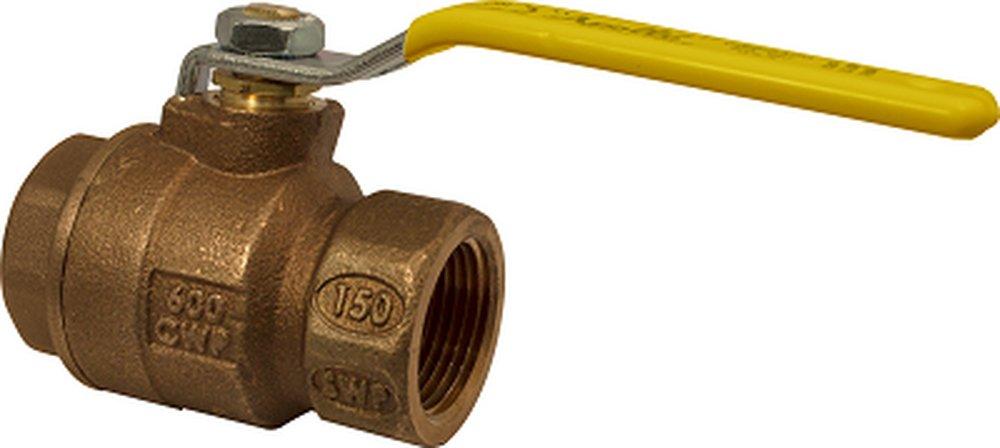

Apollo Valves 77C14701A 77C-A Series 1-1/2 in. Bronze Full Port NPT 600# Ball Valve

Product Description

Apollo Valves offers the 77C14701A, a reliable 1-1/2 inch bronze full port NPT ball valve rated for 600 pounds per square inch. This valve features a blowout-proof stem and adjustable stem packing for long-lasting performance.

• Blowout-proof stem design
• RPTFE seats and seals for superior sealing
• Made in the USA and 100% factory tested

Product Highlights

The Apollo Valves 77C14701A is perfect for a range of plumbing applications. Its full-port design minimizes flow resistance, making it ideal for both residential and commercial systems.

Product Information

Standard Information

• Brand: Apollo
• MPN: 77C14701A

Technical Specifications

• Material: Bronze
• Size: 1-1/2 inches
• End Connection: FNPT
• Type: 2-Piece
• Port Type: Full Port
• Options: Stainless Steel Ball and Stem
• Seal Material: RPTFE
• Handle Type: Lever
• Pressure Rating: 600 PSIG CWP / 150 PSIG SWP
• Temperature Rating: 450 °F
• End to End Distance: 4.23 inches
• Shipping Weight: 27.600 pounds
