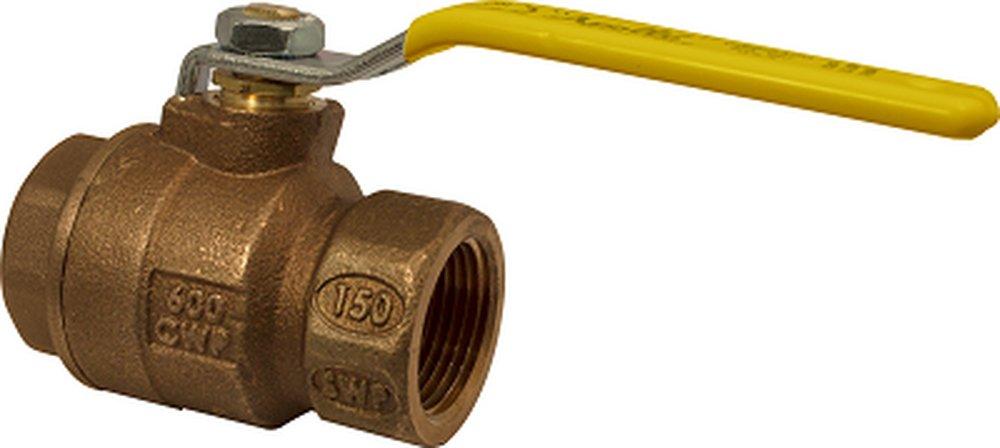

Apollo Valves 77C14501A 77C-A Series 1 in. Bronze Full Port NPT 600# Ball Valve

Product Description

The Apollo Valves 77C14501A is a one-inch bronze full port NPT ball valve designed for high-pressure applications. This valve is built with a blowout-proof stem design and features adjustable stem packing. Its solid ball design allows for smooth operation and minimal pressure loss.

• Blowout-proof stem design for added safety.
• Full-port solid ball design enhances flow.
• RPTFE seats and seals improve reliability.

Product Highlights

The Apollo 77C14501A is factory tested and suitable for various plumbing systems. Its robust construction ensures long-term performance and resistance to corrosion.

Product Information

Standard Information

• Brand: Apollo
• MPN: 77C14501A

Technical Specifications

• Material: Bronze
• Size: 1 inch
• End Connection: FNPT
• Product Type: 2-Piece
• Port Type: Full Port
• Options: Stainless Steel Ball and Stem
• Seal Material: RPTFE
• Handle Type: Lever
• Pressure: 600 PSIG CWP / 150 PSIG SWP
• Temperature: 450 degrees F
• End to End Distance: 3.07 inches
• Shipping Weight: 9.150 lbs
