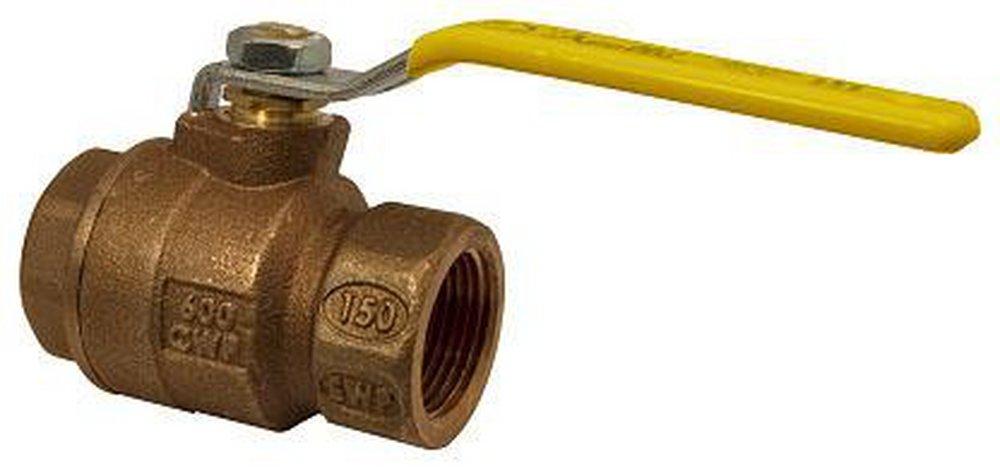

Apollo Valves 77C10401A 77C-A Series 3/4 in. Bronze Full Port NPT 600# Ball Valve

Product Description

The Apollo Valves 77C10401A is a 3/4 inch bronze full port NPT ball valve. This valve is designed for durability and high performance in commercial applications. It features a dezincification resistant bronze body, premium RPTFE seats, and a solid ball design that ensures true full-port flow performance.

• Dezincification resistant bronze body
• 100% factory tested for reliability
• Adjustable stem packing for easy maintenance

Product Highlights

This valve is ideal for use in saturated steam applications up to 150 psi and is constructed to endure rigorous service conditions. It is made in the USA and features a blowout-proof stem design for added safety.

Product Information

Standard Information

• Brand: Apollo Valves
• Manufacturer Part Number: 77C10401A

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 3/4 in
• Connection Type: NPT
• Dimension: 2.67 in L
• Flow Coefficient: 36 Cv
• Material: Bronze
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Temperature Rating: 450 deg F
